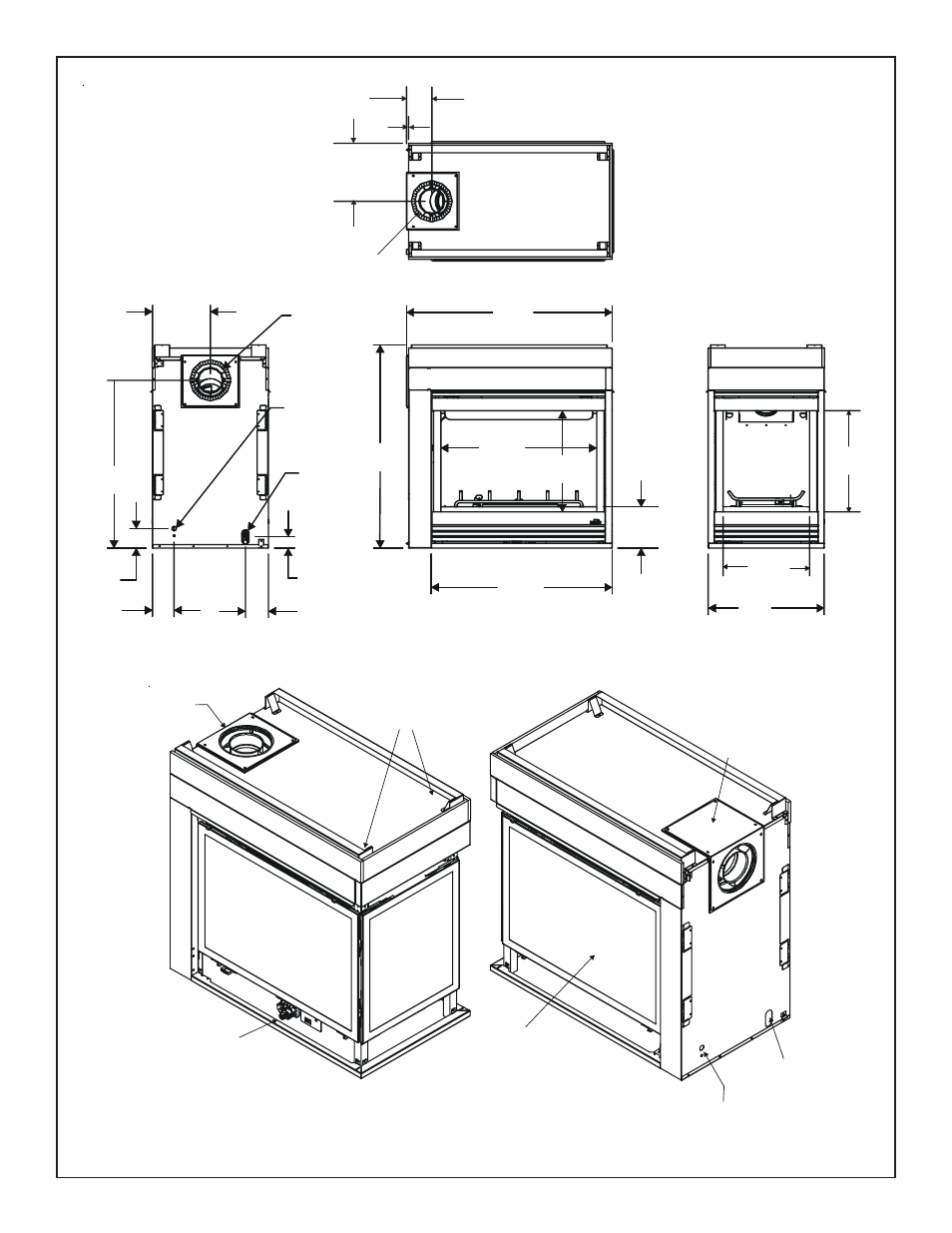

Figure 1. Diagram of the PIER-HVB-IPI
42-5/8
(1082mm)
Ø 8
(204mm)
12
(305mm)
ELECTRICAL
ACCESS
GAS LINE
ACCESS
34-3/4
(882mm)
4-1/16
(102mm)
4-1/2
(114mm)
4-3/4
(121mm)
2-5/16
(58mm) 37-7/16
(950mm)
32-5/16
(820mm)
21
(533mm)
42
(1067mm)
17-15/16
(455mm)
24
(610mm)
21
(533mm)
5-1/4
(133mm)
1/2
(13mm)
(2)
12
(306mm)
Ø 8
(204mm)
8-1/2
(216mm)
REAR VENT
COLLARS
ELECTRICAL
ACCESS
GAS LINE
ACCESS
GAS CONTROLS
& LABELS
SIDE GLASS
DOOR
TOP STANDOFFS
TOP VENT
COLLARS
