Framing should be
constructed of 2 X 4
lumber or heavier.
Model A B C D E
PIER-HVB-IPI 42-1/8 42-1/2 23 35-3/4 48
ST-HVB-IPI 47-5/8 42-1/2 23 35-3/4 48
L&RCOR-HVB-IPI 42-1/8 42-1/2 28-3/4 35-3/4 48

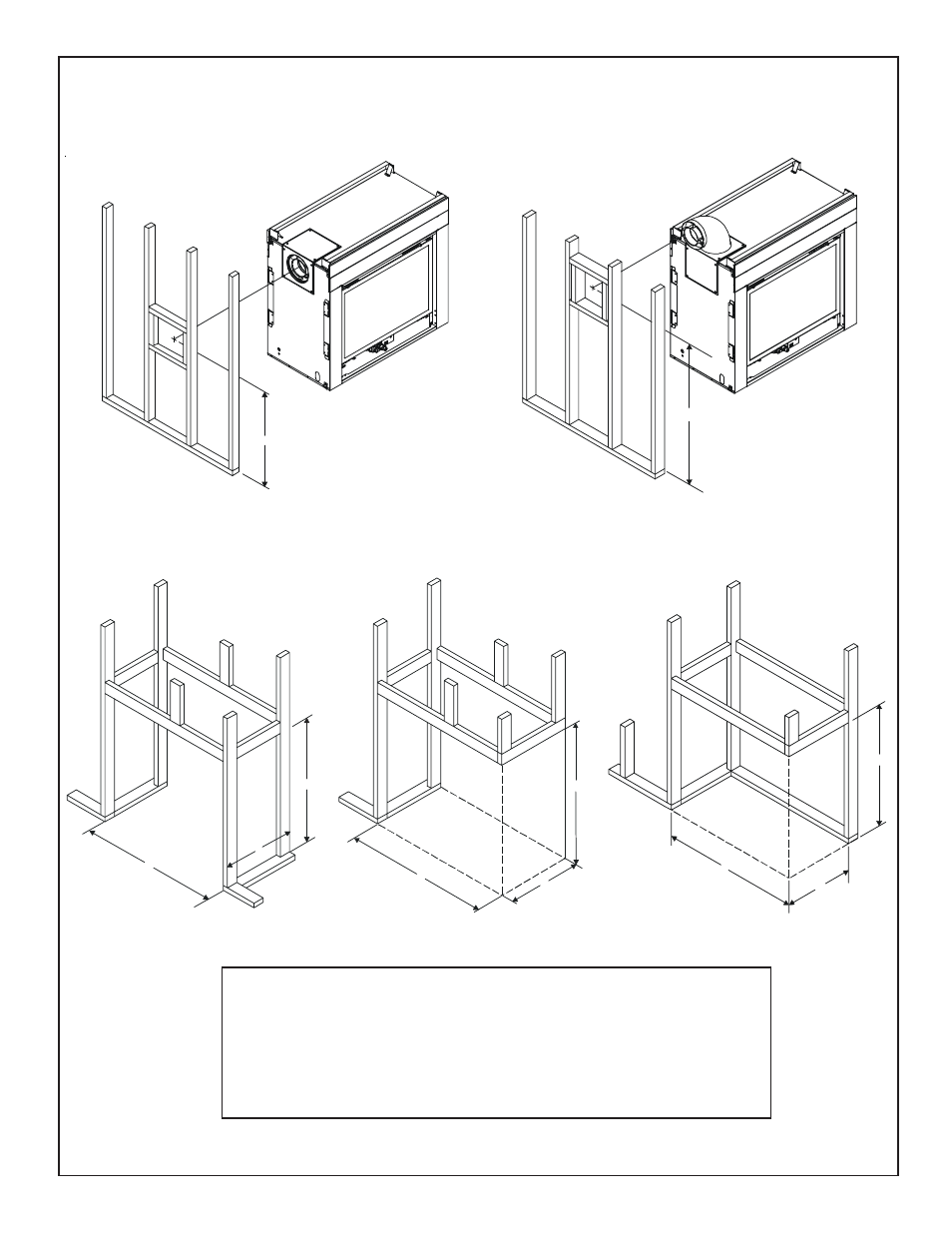

Figure 5. Framing Dimensions
NOTE: DIMENSIONS SHOWN IN INCHES
Shows center of 10” x 12” vent framing holes for top and rear venting. The center
of the hole is one inch (25.4mm) above the center of the horizontal vent pipe.
PIER-HV-IPI ST-HV-IPI L & R-COR-HV-IPI
A
C
B
D
B
C
A
A
C
B
E
