§ By using the S video cable instead of the yellow video cable you
may make recordings of higher picture quality.
[Note]
If the audio output of the other equipment is monaural, connect to L/
MONO. (Both left and right channels are recorded when connected
through L/MONO.)
§ By using the S video cable instead of the yellow video cable you
may make recordings of higher picture quality.
[Note]
If audio output on the other equipment is monaural, use a stereo-
monaural conversion cable (not included).

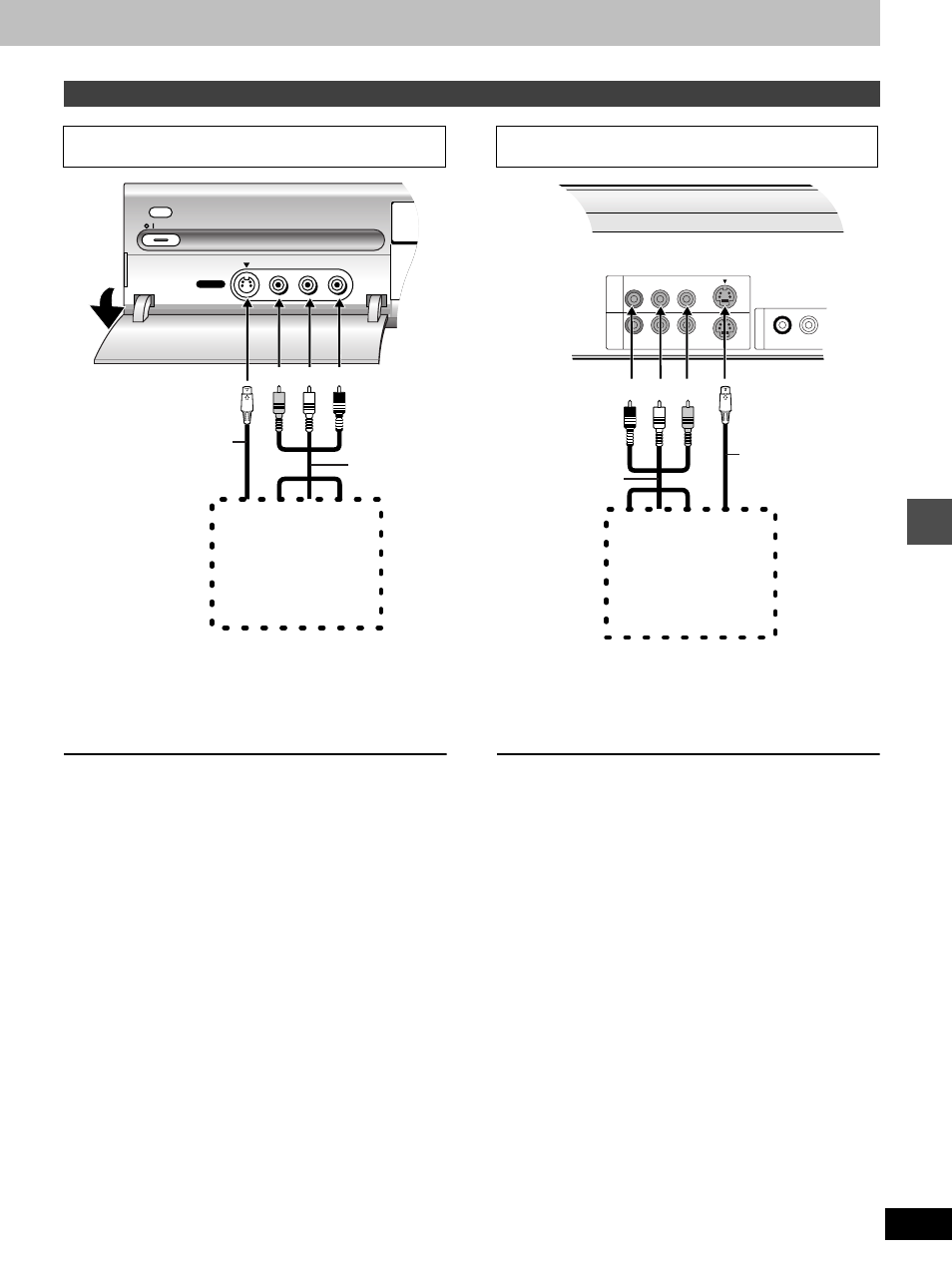

Connecting other video equipment
Connecting to the L2 input terminals on the front
of the unit
(L2)
POWER/STANDBY
S VIDEO IN VIDEO IN
LINE 2
L (mono) AUDIO IN R
/
Audio/Video
cable (included)
S video cable §
Connect to the video and audio output terminals.
yellow white red This unit
Other video equipment
Connecting to the input terminals on the rear of
the unit, L1 and L3
R-AUDIO-L VIDEO
OUT
R-AUDIO-L
R-AUDIO-L
VIDEO
VIDEO
S-VIDEO
S-VIDEO (L3)
(L1) IN 1
IN 3
Connect to the video and audio output terminals.
S video cable §
red white yellow
Audio/Video cable
(included)
This unit
Other video equipment
