Connect shift rod
a. Insert end of shift rod into hole of shift lever indicator.
b. Insert hairpin clip through hole of shift rod to secure.
Connect clutch cable
Connect clutch cable to control bar bracket as shown (fig. 4).
Tire pressure
Reduce tire pressure to 20 PSI (Tires were overinflated for
shipping purposes). If tire pressures are not equal, tiller will
pull to one side.
3
2
1
4
6

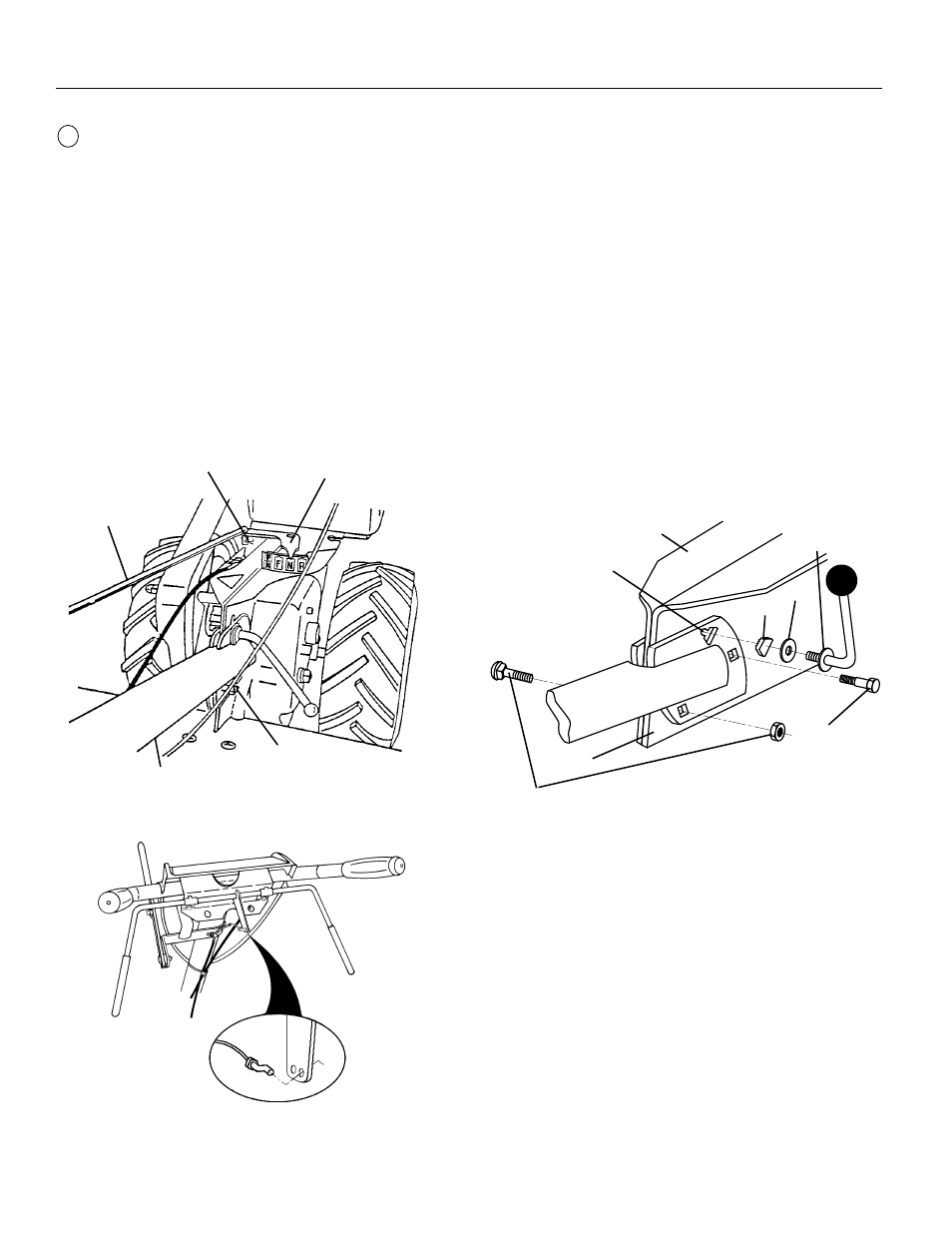

Figure 3
Figure 4
Inset
1. Shift rod
2. Hairpin clip
3. Shift lever indicator
4. Handle assembly
5. Carriage bolt and locknut
6. Handle base
7. Slot
8. Greasecase
9. Handle lock
10. Washer
11. Handle lock lever
12. Pivot bolt
