Framing and Clearances
A. Selecting Fireplace Location
Several options are available to you when choosing a loca-
tion for your
¿ replace. This ¿ replace may be used as a room
divider, installed along a wall, across a corner or used in an
exterior chase. See Figure 3.1.
A
65-5/8 in.
(1667 mm)
46-3/8 in.
(1178 mm)
A
92-3/4 in.
(2356 mm)
5/8 in. (16 mm)
all configurations
In an exterior chase
or projecting into a
garage
Across a
corner
As a room
divider
Along a wall
28-1/2 in.
(724 mm)
28-1/2 in.
(724 mm)
28-1/2 in.
(724 mm)
21-1/2 in.
(546 mm)
1-1/2 in. (38 mm) min.
distance from fireplace to
combustible materials. Note: Note: In addition to these
framing dimensions,
also reference the
following sections:
• Clearances (Section
3.B.)
• Mantel Projections
(Section 8.C)
• Fireplace Dimensions
(Section 12.A.)
48 in.
(1219 mm)
24 in.
(610 mm)
A
A

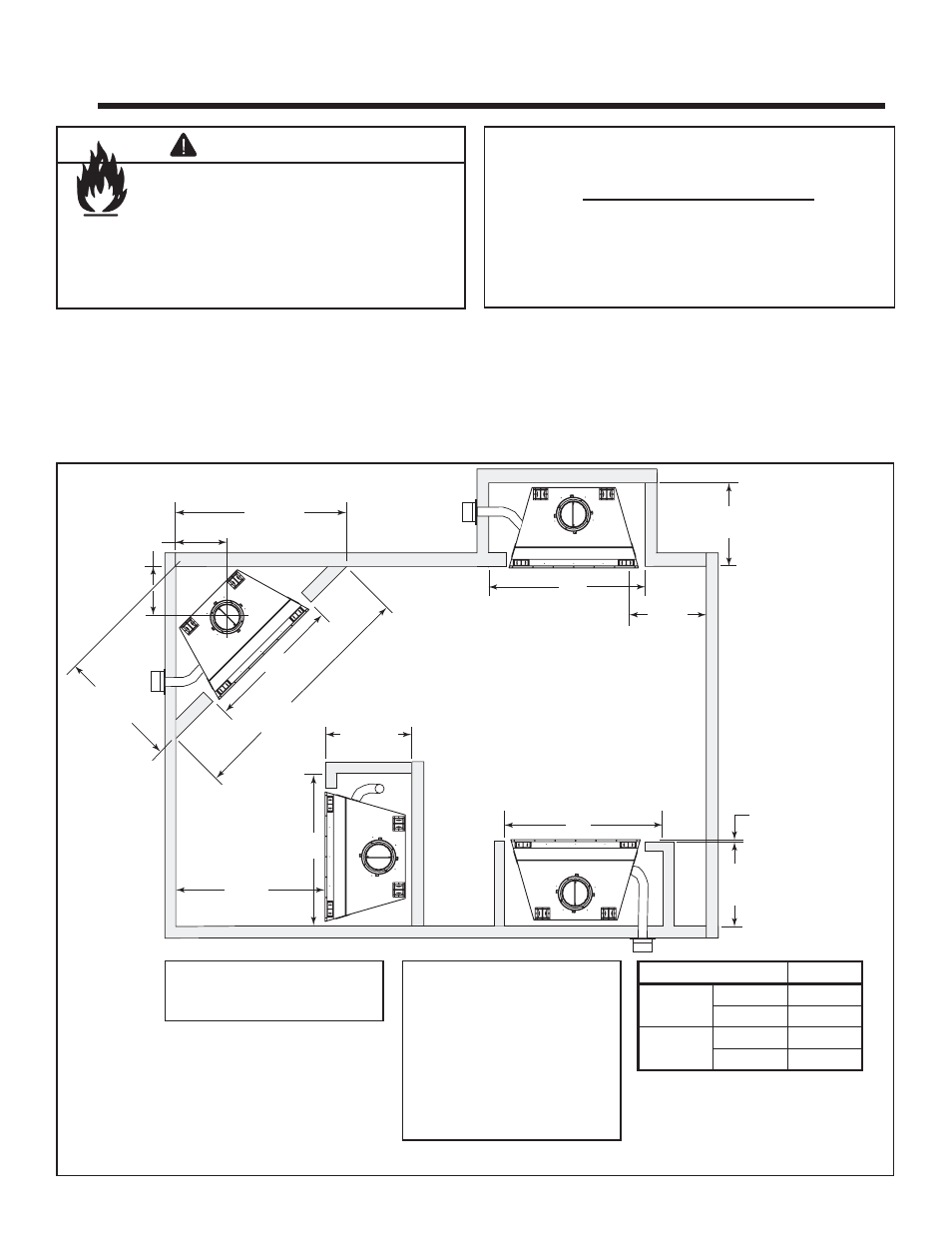

Figure 3.1 Fireplace Locations
Fire Risk
Provide adequate clearances.• Around air
openings
• To
combustibles
• For service access.
Locate ¿ replace away from traf¿ c areas.
WARNING
Note:
• Illustrations and photos re
À ect typical installations
and are FOR DESIGN PURPOSES ONLY.
• Illustrations/diagrams are not drawn to scale.
• Actual installation/appearance may vary due to
individual design preference.
• Hearth & Home Technologies reserves the right to
alter its products.
Locating the ¿ replace in a basement, near frequently opened
doors, central heat outlets or returns, or other locations of
considerable air movement can affect the performance and
cause intermittent smoke spillage from the front of the
¿ re-
place. Consideration should be given to these factors before
deciding on a location. See Sections 2 and 10.
EXCLAIM-42C A
With Outside
Air
in. 59
mm 1499
Without Out-
side Air
in. 51-1/2
mm 1308
