Reference Materials

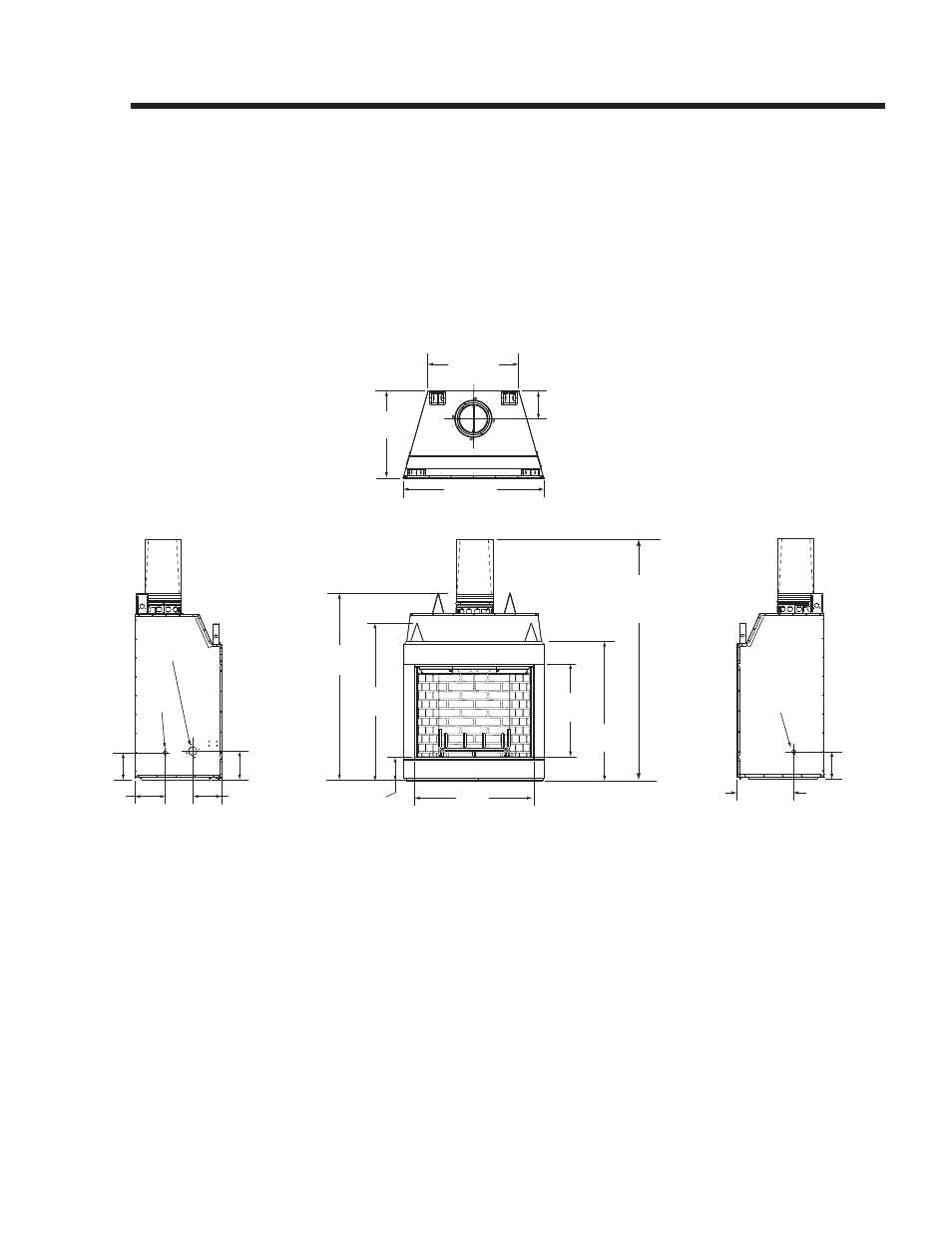

A. Fireplace Dimensions
34-1/2 in.
(876 mm)
9-1/2 in.
(241 mm)
27-1/2 in.
(699 mm)
50-1/2 in.
(1283 mm)
42 in.
(1067 mm)
49-5/8 in.
(1260 mm)
28-1/2 in.
(724 mm)
43-1/8 in.
(1095 mm)
59-1/4 in.
(1505 mm)
7-5/8 in.
(194 mm)
71-3/4 in.
(1822 mm)
(effective height)
Gas
Knockout
8-5/8 in.
(219 mm)
9-5/8 in.
(244 mm)
9-1/2 in.
(241 mm)
9-1/4 in.
(235 mm)
Outside Air
Gas Knockout
18-1/2 in.
(470 mm)
8-5/8 in.
(219 mm)
