Heat & Glo • EXCLAIM-42C • 4013-094 Rev I • 10/06 20
A. Chimney Requirements
Vertical distances are measured from the base of the ¿ re-
place as shown in Figure 5.2.
To determine the chimney components needed to complete
your particular installation, follow the steps below:
• Determine the total vertical height of the fireplace
installation. This dimension is measured from the base of
the
¿ replace assembly to the point where the smoke exits
the termination cap.
• Subtract the effective height of the ¿ replace assembly from
the overall height of the ¿ replace installation (measured
from the base of the fireplace to the bottom of the
termination cap).
• Refer to Table 5.1 to determine what components must
be selected to complete the ¿ replace installation.
• Determine the number of ceiling ¿ restops, stabilizers,
roof flashing, etc. required to complete the fireplace
installation.
6 ft (1.8 m) max.
unsupported run
20 ft (6 m) max.
pipe between an
offset & return
Ceiling Firestop 35 ft (10.7 m)
max. straight
unsupported
chimney height
18.5 ft (5.6 m) min. height/single offset-return
24 ft. (7.3 m) min. height/double offset-return
90 ft (27.4 m) max. height
6 ft (1.8 m) max.
unsupported chimney
above roof
71-3/4 in.
(1822 mm)
Effective Height
(bottom of fireplace
to top of starter collar)

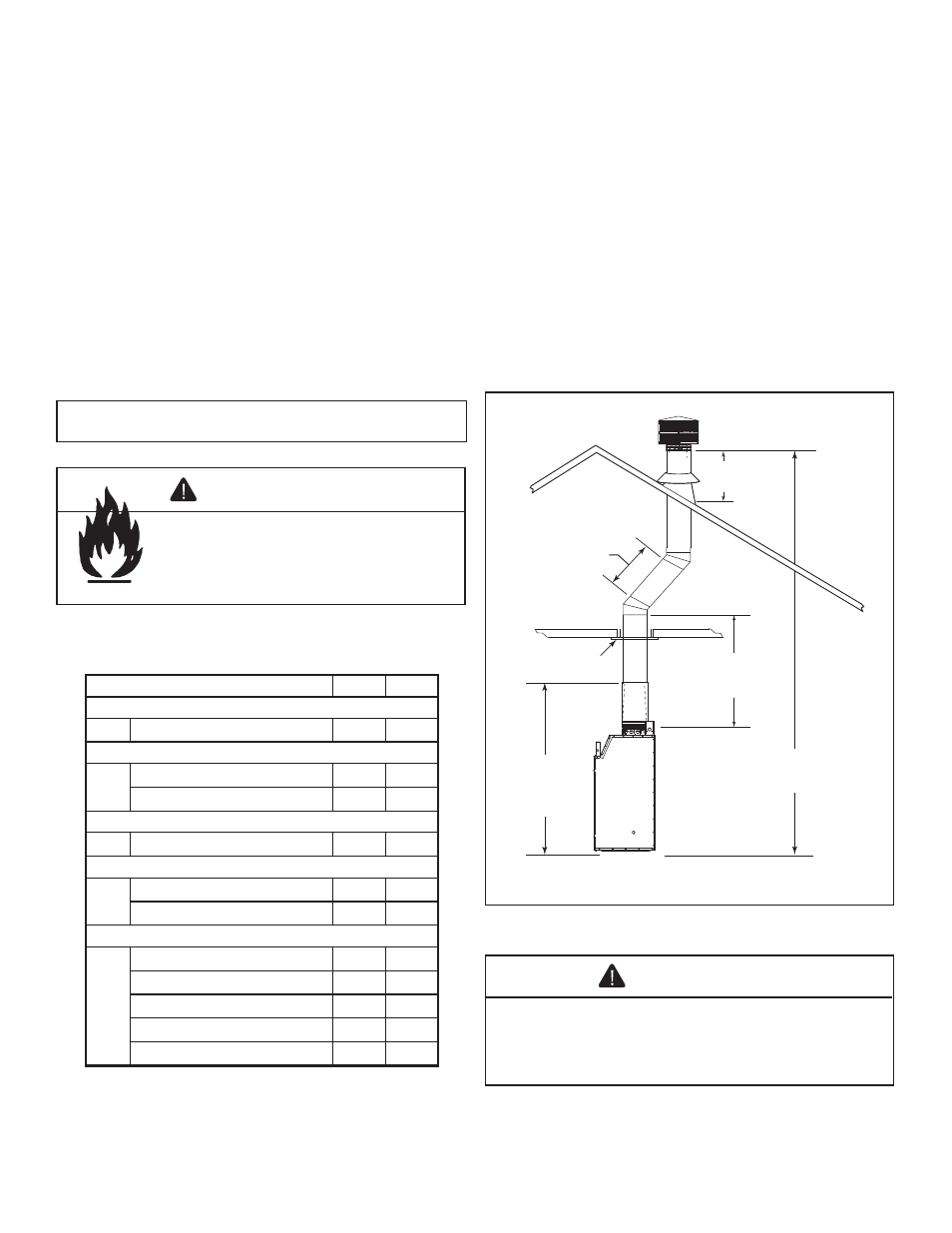

Figure 5.2 Chimney Requirements
Table 5.1
• Do NOT connect this fireplace to a chimney flue
servicing another appliance.
• Do NOT connect to any air distribution duct or
system.
CAUTION
Fire Risk
•
Must maintain 2 in. (51 mm) air clearance
to insulation and other combustible
materials.
WARNING
ft m
• Minimum overall straight height 18 5.5
• Minimum height with offset/return 18.5 5.6
• Maximum height 90 27.4
• Maximum chimney length between an offset and
return
20 6
• Maximum distance between chimney stabilizers 35 10.7
• Double offset/return minimum height 24 7.3
• Maximum unsupported chimney length between the
offset and return
6 1.8
• Maximum straight unsupported chimney height
above the ¿ replace
35 10.7
• Maximum unsupported chimney above roof 6 1.8
Note: A maximum of two pairs of offsets and returns may
be used.
HEIGHT OF CHIMNEY COMPONENTS in. mm
Chimney Stabilizer
SL4 4-3/4 121
Ceiling Firestops
FS538 0 0
FS540 0 0
Offsets/Returns
SL430 14-1/2 368
Roof Flashing
RF570 0 0
RF571 0 0
Chimney Sections*
SL406 4-3/4 121
SL412 10-3/4 273
SL418 16-3/4 425
SL436 34-3/4 883
SL448 46-3/4 1187
* Dimensions re À ect effective height.
