Heat & Glo • EXCLAIM-42C • 4013-094 Rev I • 10/06 11

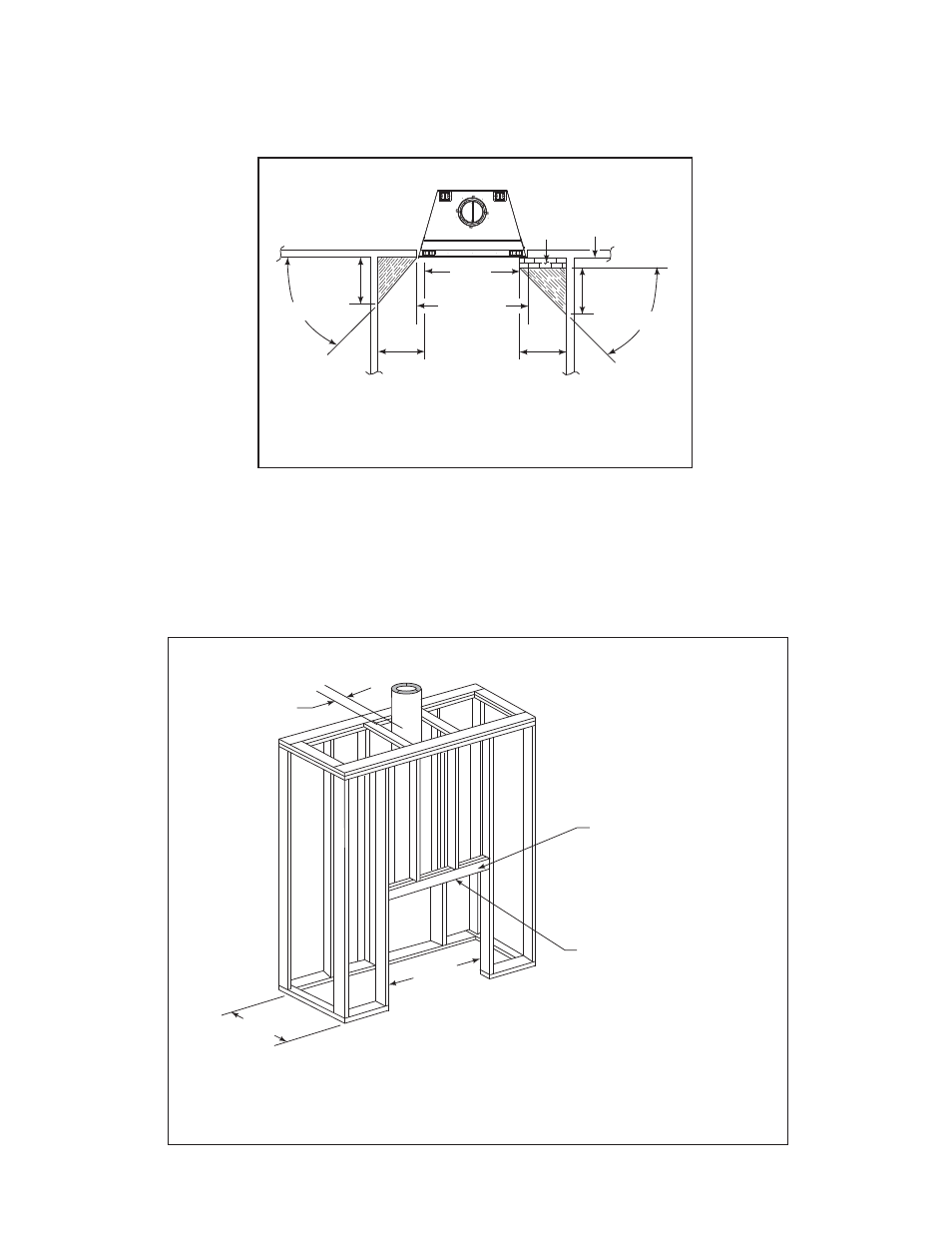

C. Sidewalls/Surrounds
Adjacent combustible side walls must be located a minimum of 24 in. (610 mm) from the ¿ replace opening. See Figure 3.3.
If you are using a decorative surround constructed of combustible material, it must be located within the shaded area de-
¿ ned in Figure 3.3. Short stub walls are also acceptable if they are contained within the shaded area.
D. Frame the Fireplace
Figure 3.4 shows a typical framing (using 2 x 4 lumber) of the ¿ replace, assuming combustible materials are used. All re-
quired clearances to combustibles around the ¿ replace must be adhered to. See Figure 3.2. Any framing across the top of
the ¿ replace must be above the level of the top standoffs.
23-3/4 in.
(603 mm)
50°
42 in.
(1067 mm)
51-1/2 in.
(1308 mm) 39°
4 in.
(102 mm)
BRICK
FRONT
FLUSH FRONT
24 in.
(610 mm)
19-3/4 in.
(502 mm)
24 in.
(610 mm)
Figure 3.3 Sidewalls and Surrounds
Note: Fireplace header
cannot be positioned until
after the fireplace
assembly is in place.
Use only noncombustible
material below the top of
the front standoffs.
2 in. (51 mm)
minimum air
space clearance
to the enclosure.
28-1/2 in.
(724 mm)
51-1/2 in.
(1308 mm)
Figure 3.4 Framing the Fireplace
¨
