Technical Reference Guide www.hp.com 6-5
Integrated Graphics Processor
6.4.2 DVI-D Connector

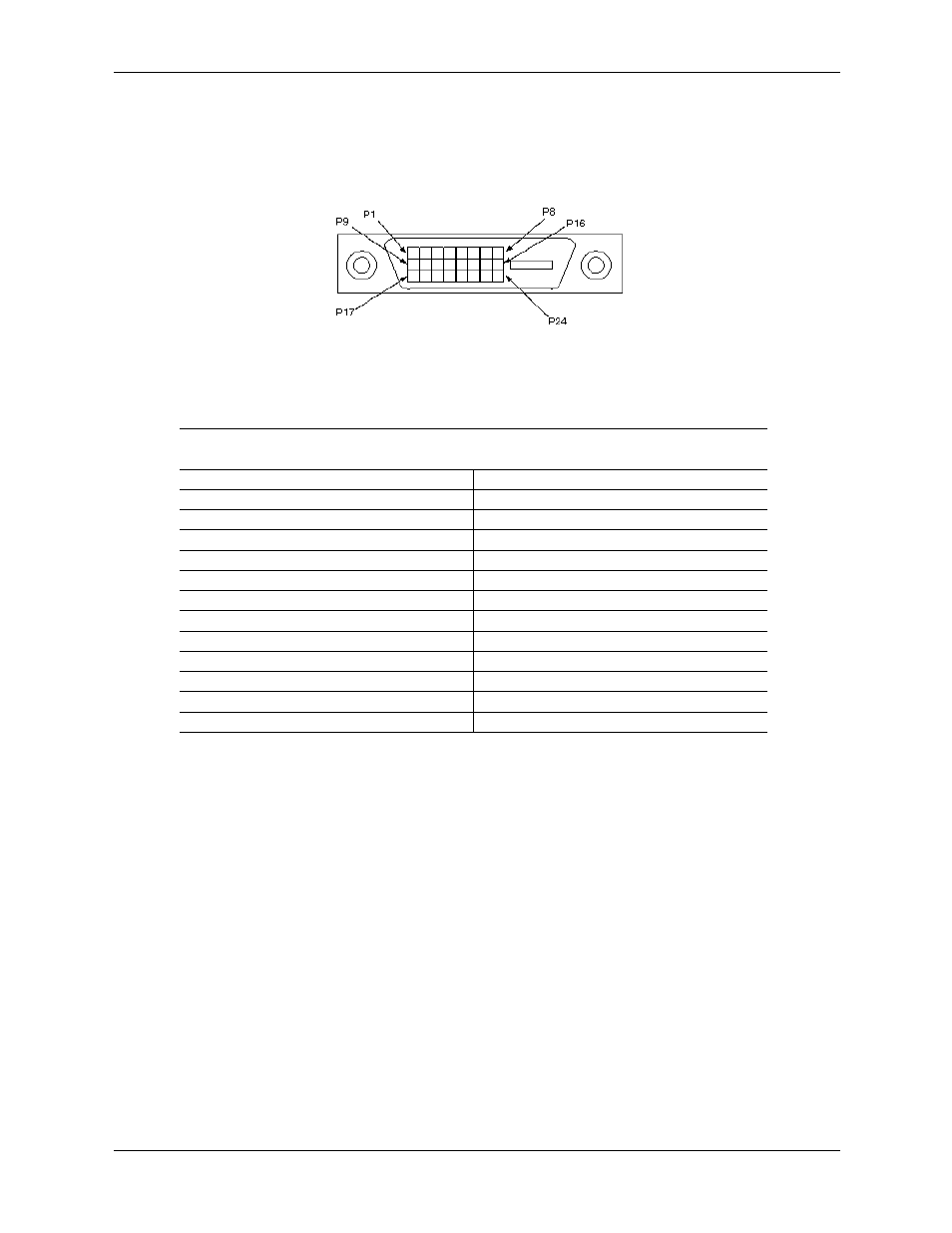

Figure 6-3 shows the DVI-D connector for attaching a digital monitor.
Figure 6-3. Female DVI-D Connector, (as viewed from rear of chassis).
Table 6-2.
DVI-D Monitor Connector Pinout
Pin Signal Pin Signal
1 TMDS Data 2- 13 TMDS Data 3+
2 TMDS Data 2+ 14 5 VDC
3 TMDS Dara 2 & 4 shield 15 Ground
4 TMDS Data 4- 16 Hot Plug Detect
5 TMDS Data 4+ 17 TMDS Data 0-
6 DDV Clock 18 TMDS Data 0+
7 DDC Data 19 TMDS Data 0 & 5 shield
8 not used 20 TMDS Data 5-
9 TMDS Data 1- 21 TMDS Data 5+
10 TMDS Data 1+ 22 TMDS Clock shield
11 TMDS Data 1 & 3 shield 23 TMDS Clock +
12 TMDS Data 3- 24 TMDS Clock -
