Note: There is a thin protective sheet of clear plastic on the overlay of the console and should be removed.

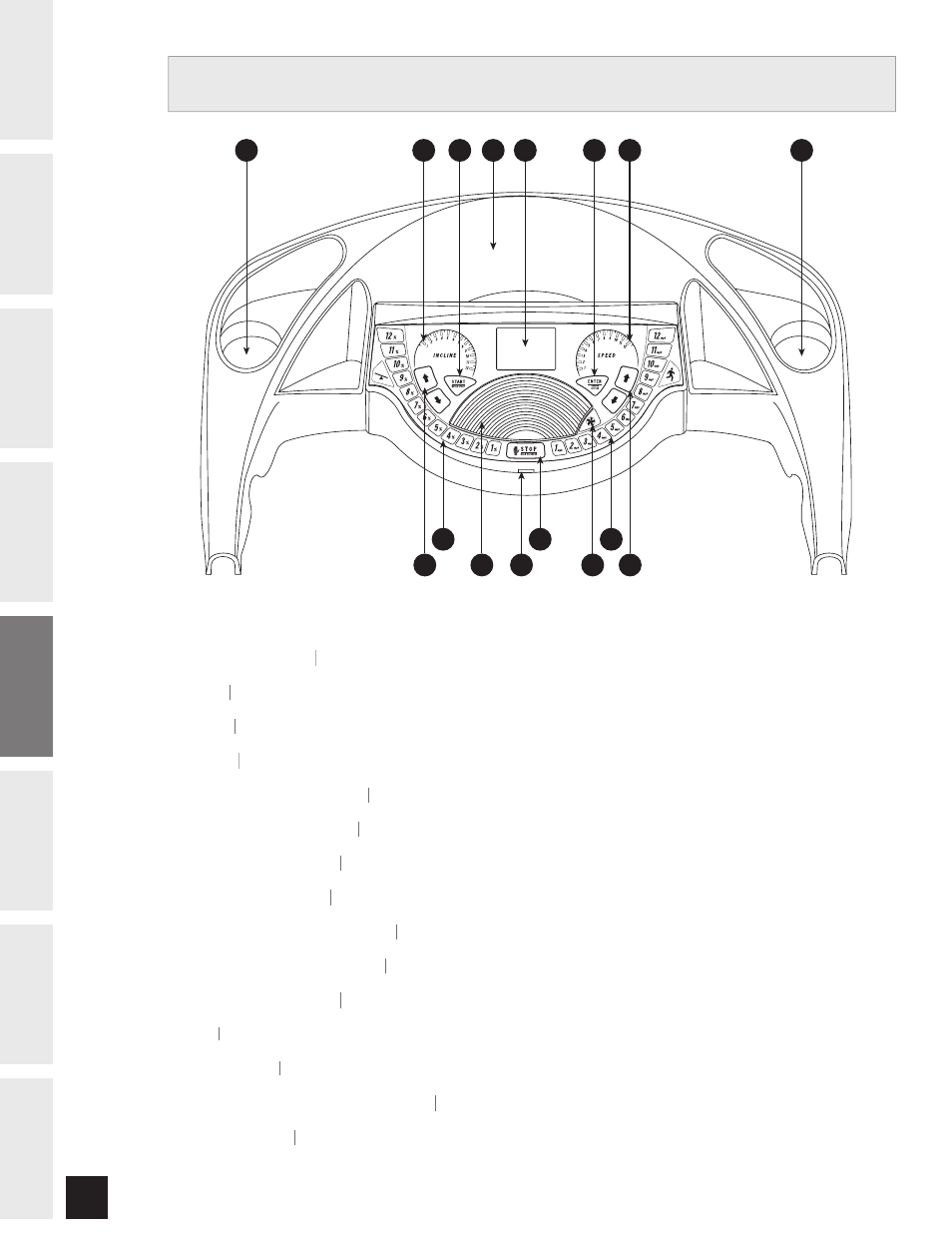

A) MONITOR DISPLAY: Speed, Time, Pulse, Distance, Incline, Calories and Program Profiles.
A) MONITOR DISPLAY: A) MONITOR DISPLAY:
B) STOP: Press to pause/end your workout. Hold for 3 seconds to reset the treadmill.
B) STOP: B) STOP:
C) START: Simply press to begin exercising or starts your program.
C) START: C) START:
D) ENTER: Used to select Program, Level and Time. Press to change display feedback during workout, Hold to scan.
D) ENTER: D) ENTER:
E) ONE-TOUCH INCLINE KEYS: Used to reach desired incline more quickly. (T61 & T62 have 10 keys instead of 12)
E) ONE-TOUCH INCLINE KEYS: E) ONE-TOUCH INCLINE KEYS:
F) ONE-TOUCH SPEED KEYS: Used to reach desired speed more quickly. (T61 & T62 have 10 keys instead of 12)
F) ONE-TOUCH SPEED KEYS: F) ONE-TOUCH SPEED KEYS:
G) INCLINE ARROW KEYS: Used to adjust incline in small increments (0.5% increments).
G) INCLINE ARROW KEYS: G) INCLINE ARROW KEYS:
H) SPEED ARROW KEYS: Used to adjust speed in small increments (0.1 mph increments).
H) SPEED ARROW KEYS: H) SPEED ARROW KEYS:
I) BACK-LIT INCLINE INDICATORS: Illuminate to indicate current incline. (T63 & T64 only)
I) BACK-LIT INCLINE INDICATORS: I) BACK-LIT INCLINE INDICATORS:
J) BACK-LIT SPEED INDICATORS: Illuminate to indicate current speed. (T63 & T64 only)
J) BACK-LIT SPEED INDICATORS: J) BACK-LIT SPEED INDICATORS:
K) SAFETY KEY POSITION: Enables treadmill when safety key is inserted.
K) SAFETY KEY POSITION: K) SAFETY KEY POSITION:
L) FAN: Personal workout fan.
L) FAN: L) FAN:
M) FAN BUTTON: Press the fan button ON / OFF.
M) FAN BUTTON: M) FAN BUTTON:
N) WATER BOTTLE / CD / MP3 HOLDERS: Holds personal workout equipment.
N) WATER BOTTLE / CD / MP3 HOLDERS: N) WATER BOTTLE / CD / MP3 HOLDERS:
O) READING RACK: Holds reading material. (Remove sales sticker before use)
O) READING RACK: O) READING RACK:
TREADMILL OPERATION
A C D N N O I J
H G K M L
B F E
