Title: E. Door Assembly Model: AM-50BAE, AM-50BAE-AD
Index
No. Description
Material or Model
Number
Part Number
Required Number
M-0
to
Q-0
R-0
to
R-
1 Door AM-50BAE H5577G01 1 1
AM-50BAE-AD H5577G0 1 1
Gasket (A) - 3X649-01 1 -
A3017-01 1
3 Handle SS 4A867-01 1 1
3a Truss Head Screw 4×10, SS 7C3-0410 4 4
4 Holder – Magnet ABS 4Y003-01 1 1
4a Truss Head Screw 4×8, SS 7C3-0408
5 Magnet RARE EARTH 4A861-01 3 3
6 Bushing - 417486-01

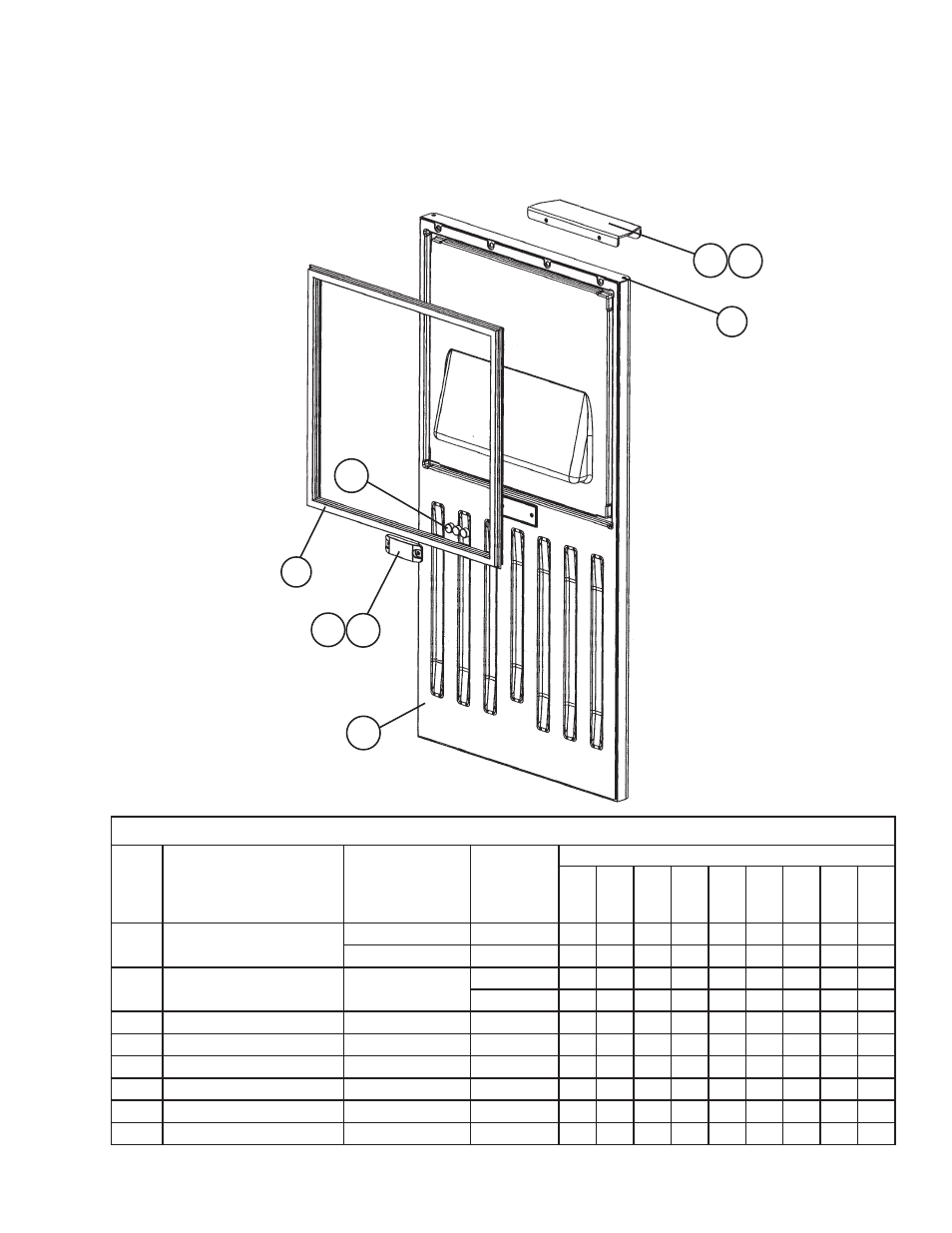

E. Door Assembly
AM-50BAE, AM-50BAE-AD
M-0, N-1, N-, P-0, P-1, Q-0, R-0, R-1, R-
3a 3
1
4a 4
5
6
