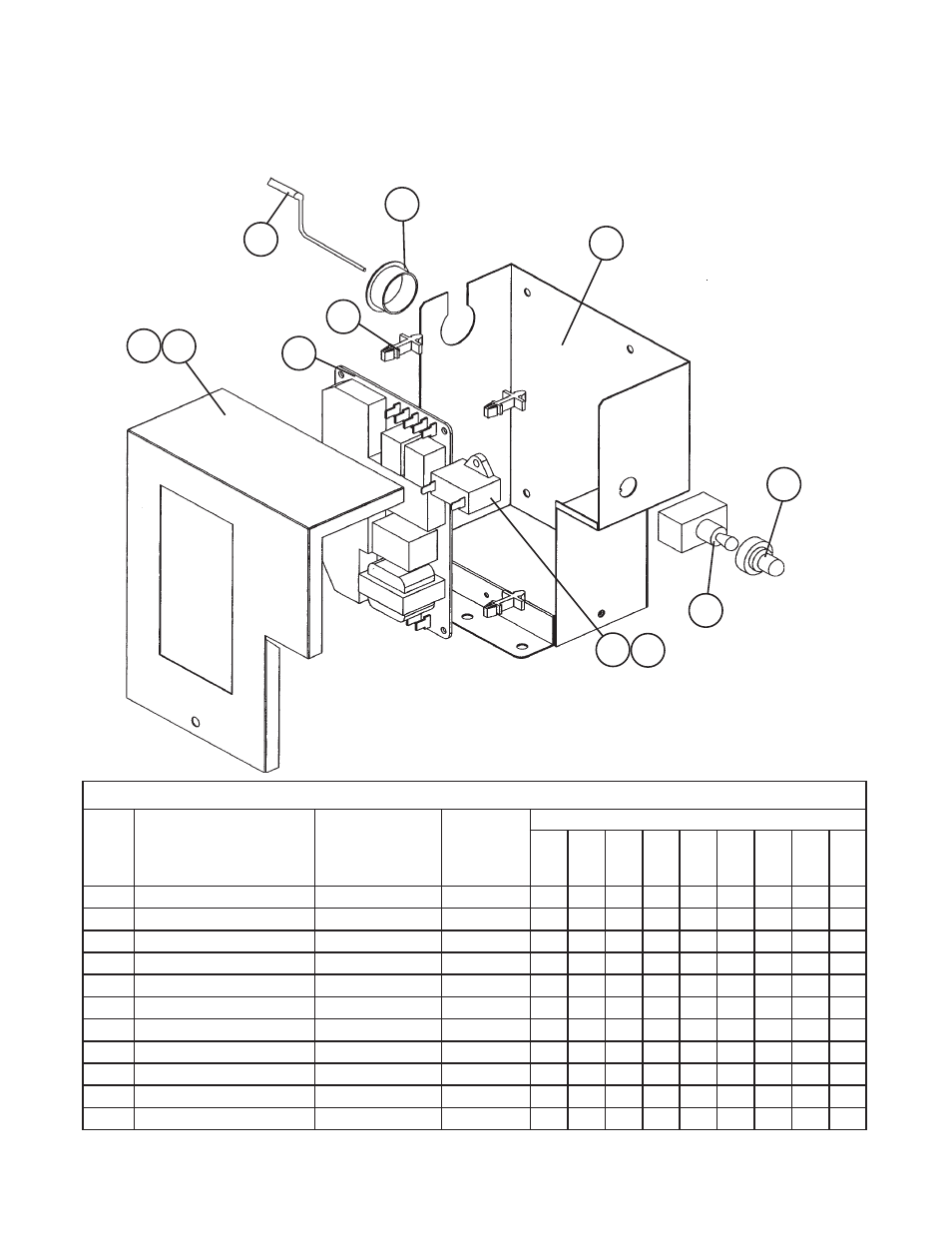

D. Control Box Assembly
AM-50BAE, AM-50BAE-DS, AM-50BAE-AD, AM-50BAE-ADDS
M-0, N-1, N-, P-0, P-1, Q-0, R-0, R-1, R-
Title: D. Control Box Assembly Model: AM-50BAE, AM-50BAE-DS, AM-50BAE-AD, AM-50BAE-ADDS
Index
No. Description
Material or Model
Number
Part Number
Required Number
M-0
to
R-
1 Control Box GS 3X6447G01 1
Control Box Cover GS 3X6448G01 1
a T Screw 4×8 7P31-0408 1
3 Controller Board - 463046-01 1
4 Board Support - 4A0336-03 4
5 Thermistor - 45373-05 1
6 Capacitor - 463047-01 1
6a T Screw 4×10 7P31-0410 1
7 Bushing - 48394-05 1
8 Toggle Switch - 443119-01 1
9 Cap - 4A1937-01 1
1
a
3
4
5
6a 6
7
8
9
