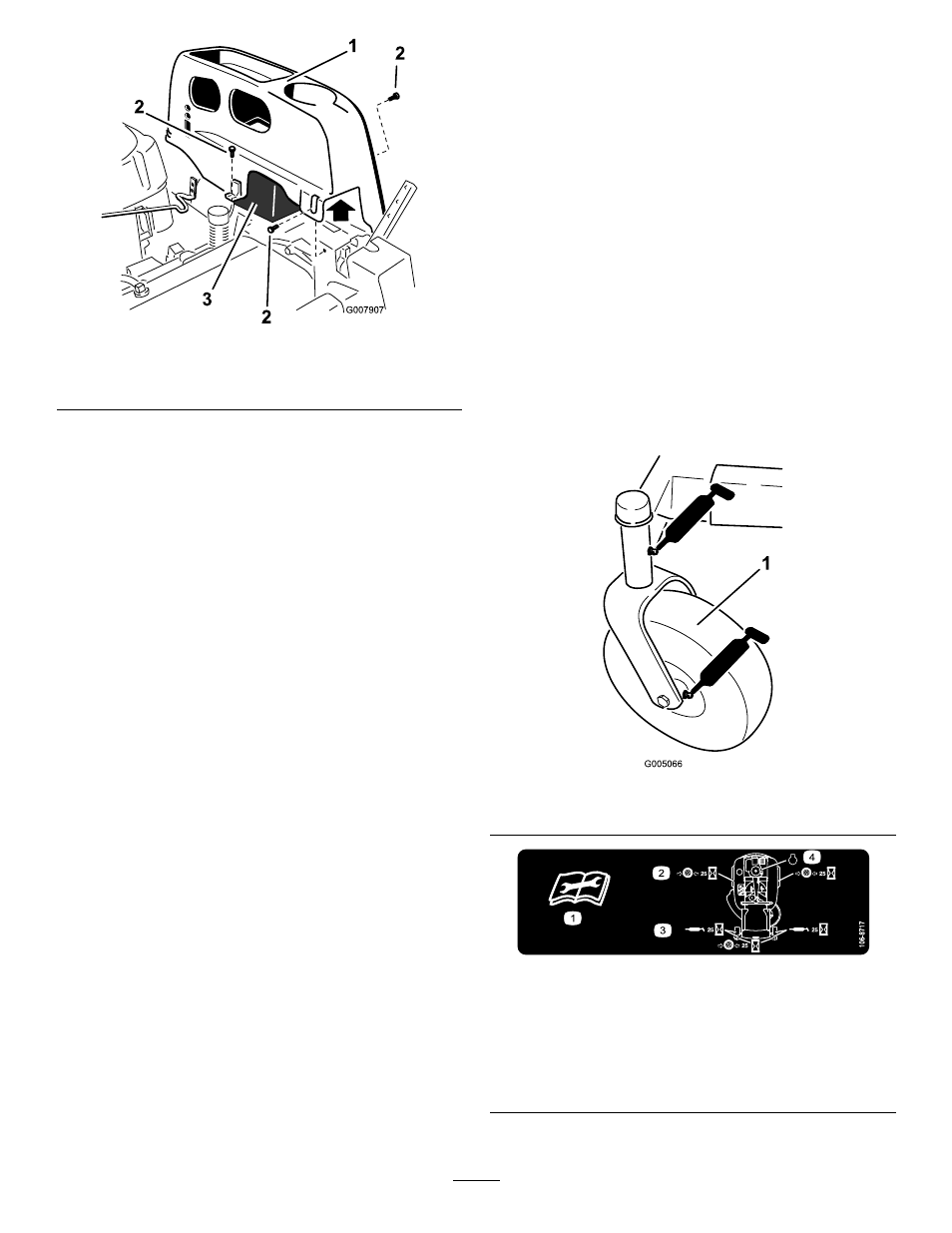

Figure 29
1. Left cover 3. Battery
2. Torx head fasteners (T25)
4. Lift the plastic cover away from the machine. Retain
all fasteners.
Replace the cover and secure it to the frame using the
fasteners removed previously.
Lubrication
Greasing the Bearings
Service Interval: Every 25 hours—Grease all
lubrication points.
Grease Type: No. 2 General Purpose Lithium Base
Grease
1. Park the machine on a level surface and disengage
the blade control switch.
2. Move the motion control levers outward to the
park position, stop the engine, remove the key, and
wait for all moving parts to stop before leaving the
operating position.
3. Clean the grease fittings (Figure 30 and Figure 31)
with a rag. Make sure to scrape any paint off of the
front of the fitting(s).
G005066
1
Figure 30
1. Front caster tyre
Figure 31
Located on the seat pan underside
1. Read the instructions
before servicing or
performing maintenance. 3. Grease every 25 operating
hours.
2. Check tyre pressure every
25 operating hours. 4. Engine
