Hayter Mowers RZT420H - Manual (Page 10)

Setup
Loose Parts
Use the chart below to verify that all parts have been shipped.
Procedure Description Qty. Use
1 No parts required – Set up the motion control levers.
Clevis pin 1
2
Hair Pin 1
Install the seat cable.
3
No parts required – Connect the battery.
Ignition Key 1
Operator’s Manual 1 4
Engine Operator’s Manual 1
Complete the Setup.
Note: Determine the left and right sides of the machine from the normal operating position.
1
Setting Up the Motion Control Levers
No Parts Required
Procedure
1. Remove the upper bolt (3/8 x 1 inch) and washer; loosen the lower bolt (3/8 x 1 inch) as shown in Figure 3.
Raise the motion control levers.
2. Align the holes in the motion control lever with the holes in the control arm shaft and install the bolt and washer
removed previously (Figure 3). Hand tighten all fasteners. Repeat this for both controls levers.

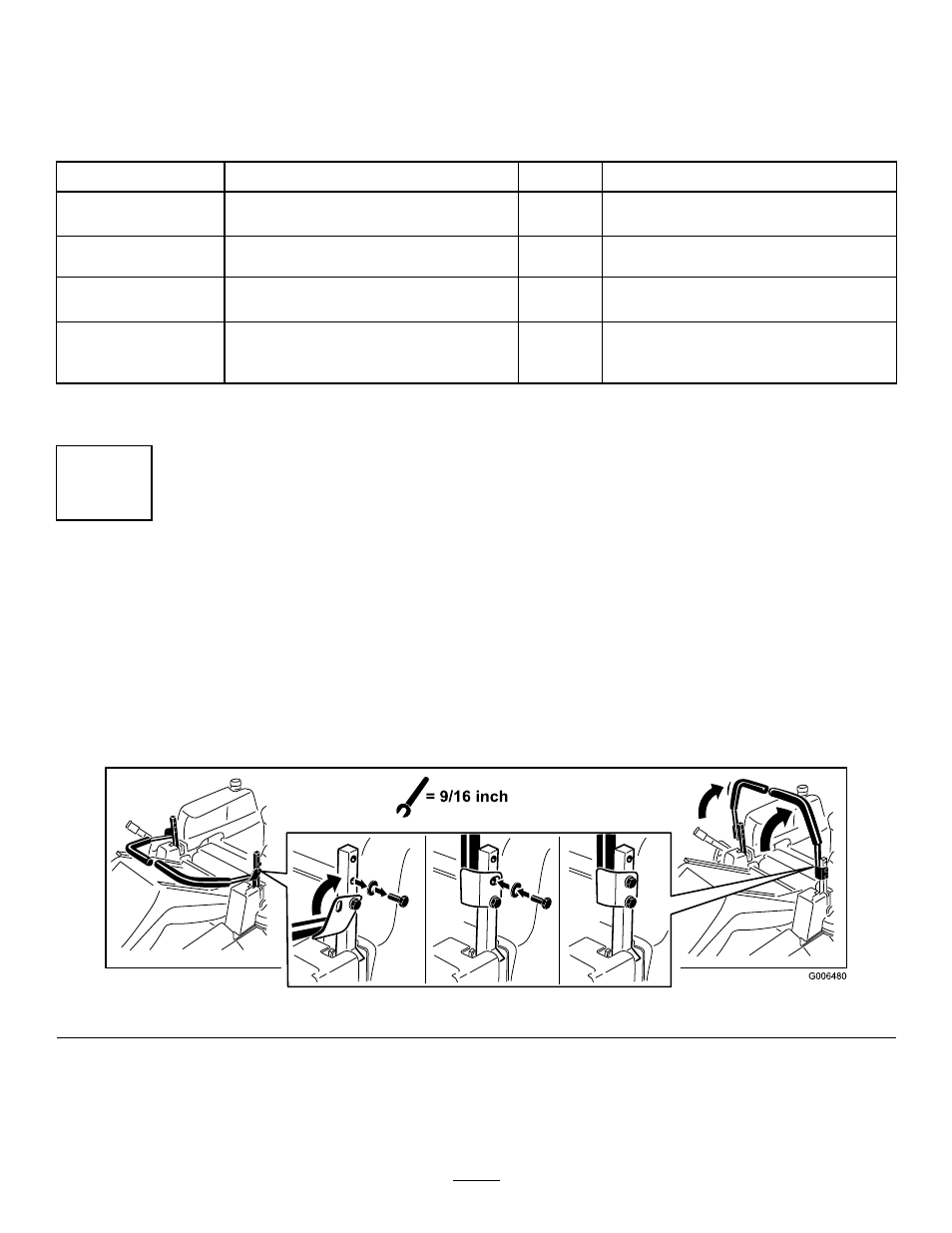

Figure 3
10
