2
Installing the Seat Cable
Parts needed for this procedure:
1 Clevis pin
1 Hair Pin
Procedure
1. Open the motion control levers and raise the seat.
2. Locate the seat cable secured to the frame. Locate
the clevis and hair pins installed on the loose end of
the seat cable.
3. Secure the loose end of the seat cable to the frame as
shown using the clevis and hair pins (Figure 6).

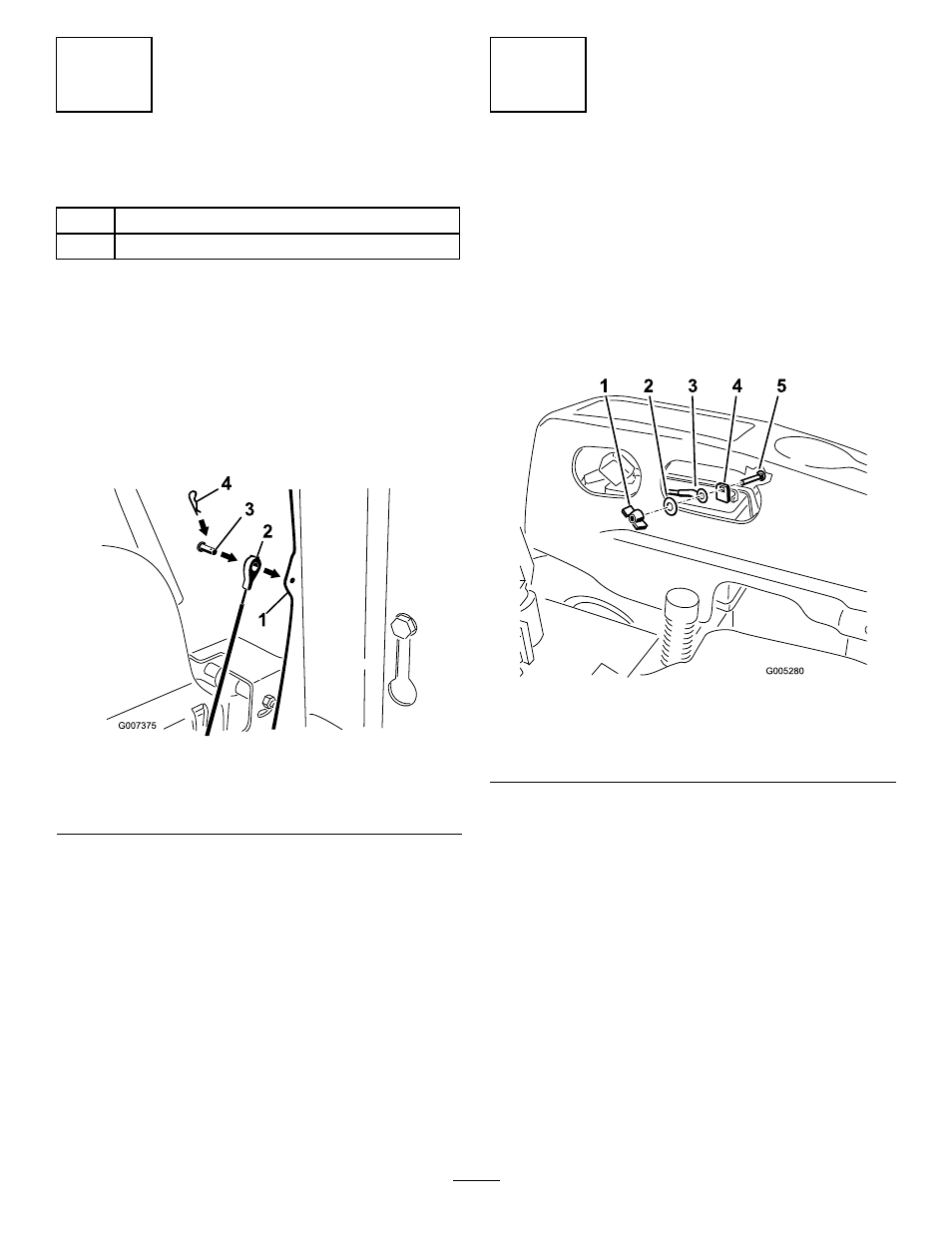

Figure 6
1. Seat frame underside, left
side 3. Clevis pin
2. Seat cable 4. Hair pin
3
Connecting the Battery
No Parts Required
Procedure
1. Locate the battery and negative battery cable in the
left hand console of the machine.
2. Remove the fasteners on the negative battery post
and use them to secure the negative battery cable to
the negative battery cable (Figure 7).
G005280
1 2 5 4 3
Figure 7
1. Wing nut 4. Negative battery post
2. Washer 5. Carriage bolt
3. Negative battery cable
3. Lift the seat from the floor board and place it into
the operation position.
12
