Slide the new drive into the hard drive cage (1), aligning the drive with the four screw holes on the
cage. Install the four 6-32 standard screws that secure the hard disk drive to the hard drive cage
(2). Make sure the hard disk drive cables are facing the top of the drive cage.

NOTE:

If you are replacing an old drive with a new drive, use the four retainer screws from the

old drive to install the new drive.

NOTE:

If you are installing a second hard drive, use four of the extra standard 6-32 screws that

are installed on the interior of the front bezel. The 6-32 screws are silver. Refer to

Installing

Additional Drives on page 24

for an illustration of the retainer screws location.

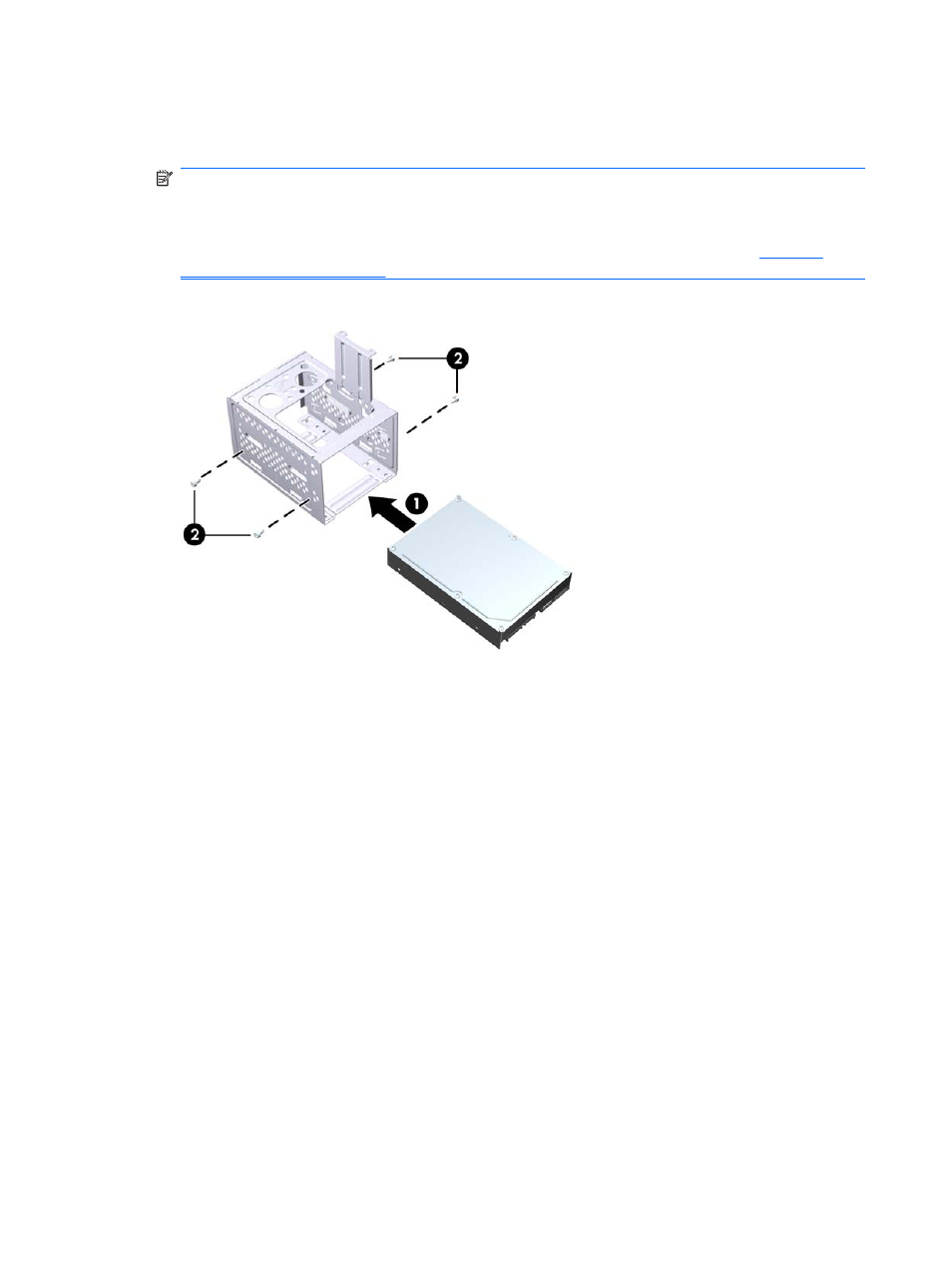

Figure 2-31

Installing the Hard Drive in the Drive Cage
