Rear Panel Components

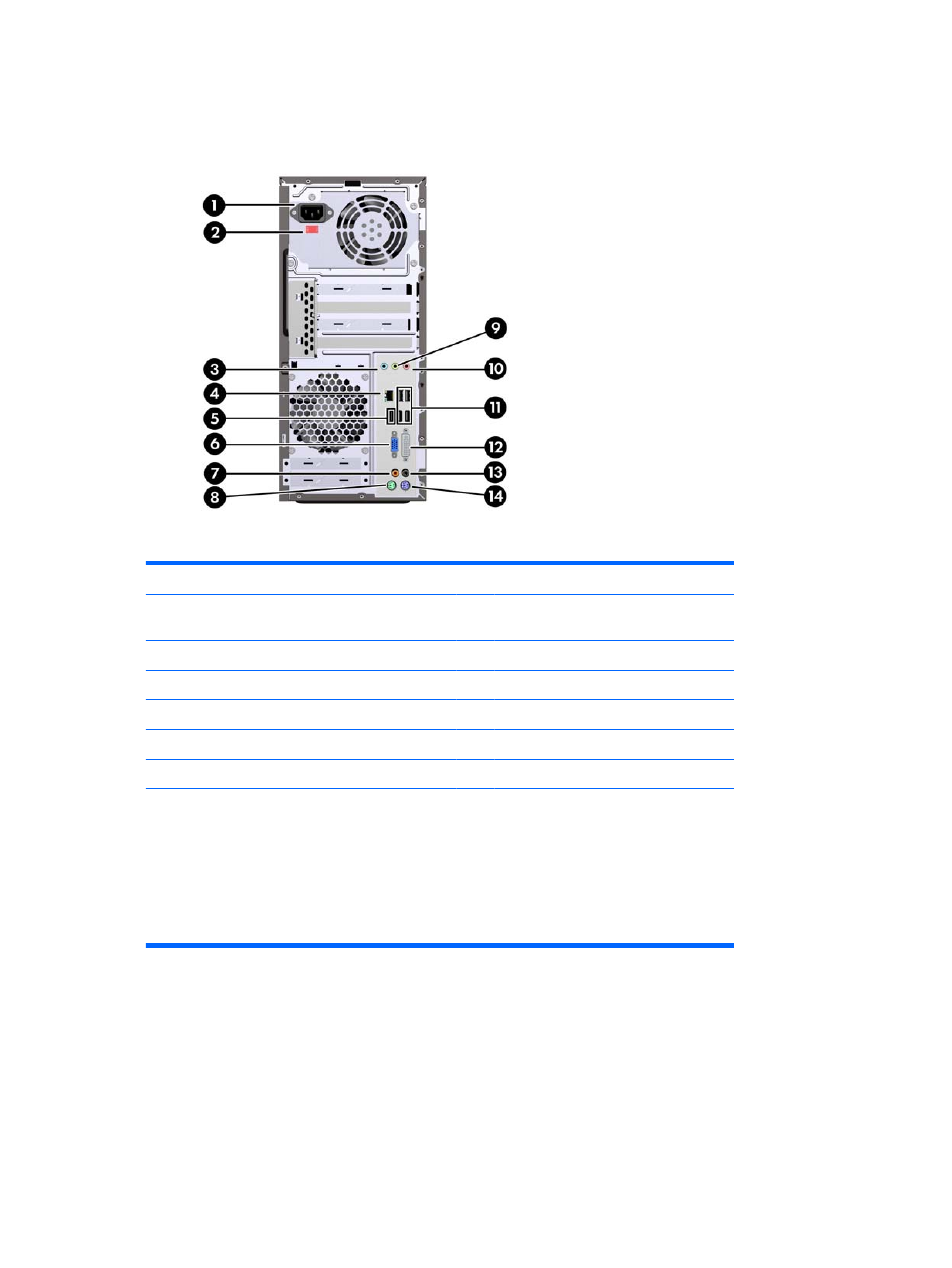

Figure 1-4 Rear Panel Components
Table 1-3 Rear Panel Components
1 Power Cord Connector 8 PS/2 Mouse Connector (green)
2 Voltage Select Switch 9 Line-Out Connector for powered audio
devices (green)
3 Line-In Audio Connector (blue) 10 Microphone Connector (pink)
4 RJ-45 Network Connector 11 Universal Serial Bus (USB) Ports
5 1394 Port 12 DVI Monitor Connector (white)
6 VGA Monitor Connector (blue) 13 Digital Line-In Audio (black)
7 Digital Line-Out Audio (orange) 14 PS/2 Keyboard Connector (purple)
NOTE: Arrangement and number of connectors may vary by model.
The monitor connector on the system board is inactive when a PCI Express x16 graphics card is installed
in the computer.
If a PCI Express x1 graphics card is installed, the connectors on the card and the system board may be
used at the same time. Some settings may need to be changed in Computer Setup to use both
connectors. For information about setting the boot VGA controller, refer to the Computer Setup (F10)
Utility Guide.
