Heatilator • GDST5244I • 4045-127 • Rev W • 11/08 45
Notch

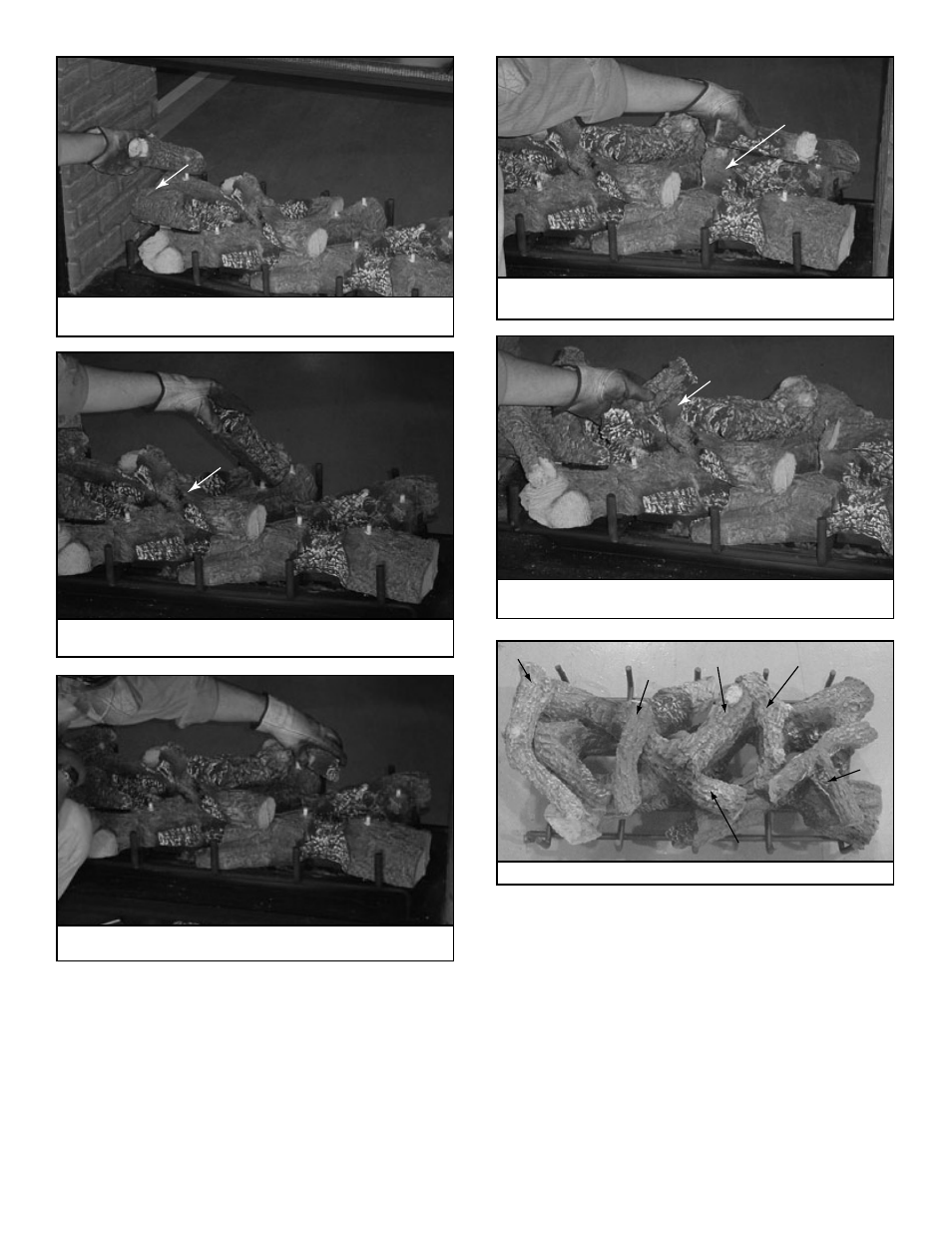

Figure 14.4 Place Top - Left Log (#7) Placed on Pin P3 and Lays
Across Notch in Middle Base Log
Notch
Figure 14.5 Place Top - Middle, Back Log (#8) Placed on Pin P4
and Lays on Notch of Log 6
Figure 14.6 Place Top - Right, Back Log (#9) Placed on
Pins P5 & P6
Sets here
Figure 14.7 Place Top - Right, Front Log (#10) Placed on
Pins P7 & P8 and Sets on Log 9
Notch
Figure 14.8 Place Top - Left, Front Log (#11) Placed on Pin P9
and sets on Notch in Log #6
#8
#7
#11
#9
#6
#10
Figure 14.9 Completed Log Set
