Heatilator • GDST5244I • 4045-127 • Rev W • 11/08 44
A. Remove Fixed Glass Assembly
See Section 14.H.
B. Remove the Shipping Materials
Remove shipping materials from inside or underneath the
fi rebox.
C. Clean the Appliance
Clean/vacuum any sawdust that may have accumulated
inside the fi rebox or underneath in the control cavity.
D. Accessories
Install approved accessories per instructions included
with accessories.
Contact your dealer for a list of ap-
proved accessories .
WARNING! Risk of Fire and Electric Shock! Use ONLY
Hearth & Home Technologies-approved optional acces-
sories with this appliance. Using non-listed accessories
could result in a safety hazard and will void the warranty.
14 14
Appliance Setup
7 8
9
10
6
11

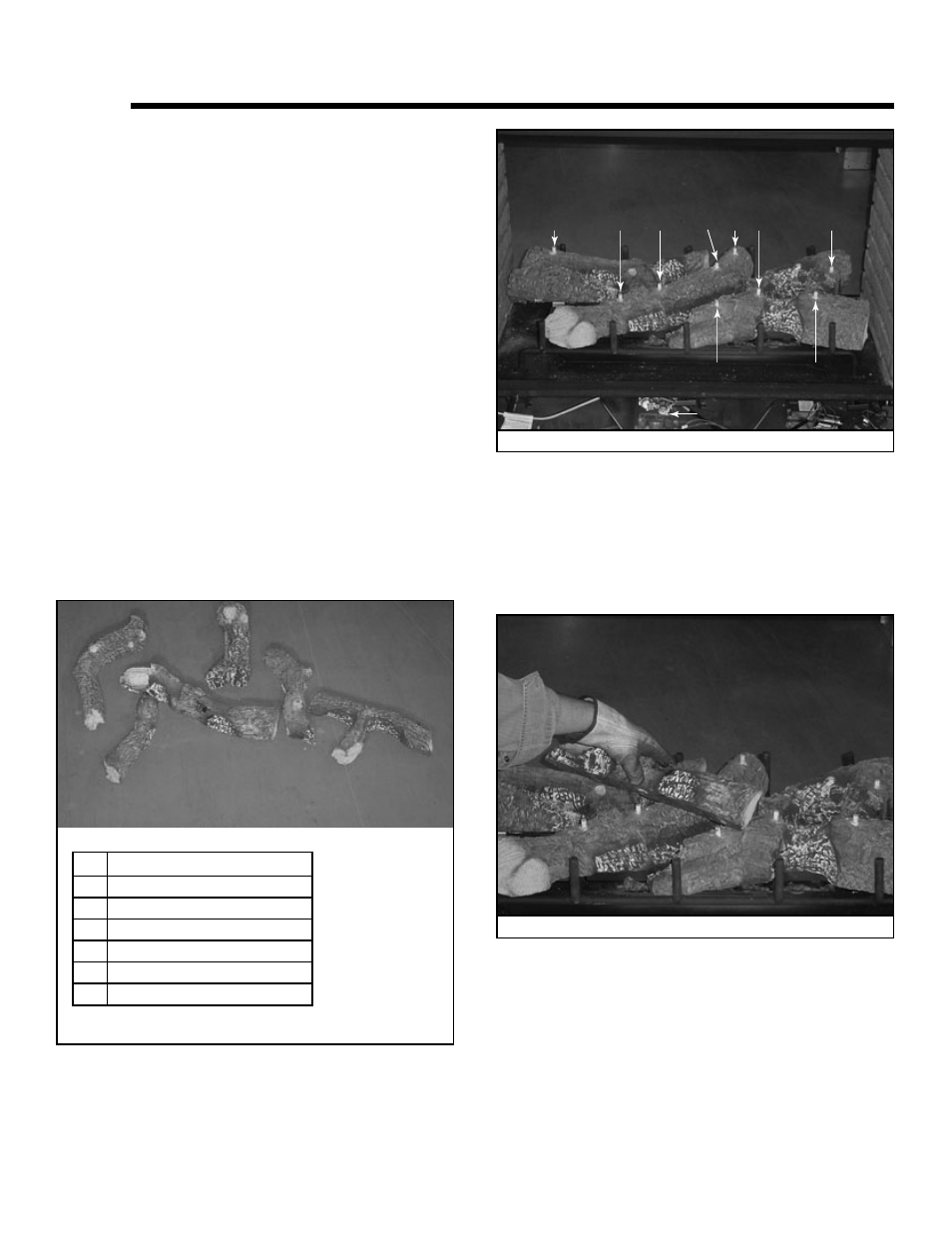

Figure 14.1 Log Identifi cation
E. Install the Log Set
• The bottom logs are fastened to the gate assembly and
have pins and grooves for top log placement.
• See Figure 14.1 for top log identifi cation.
Description
6 Middle Log
7 Top - Left Log
8 Top - Middle, Back Log
9 Top - Right, Back Log
10 Top - Right, Front Log
11 Top - Left, Front Log
• Place logs in order as shown in Figures 14.3 through
14.8. The completed log set is shown in Figure 14.9.
Holes in top logs correspond to pins in bottom log set
(Figure 14.2)
Figure 14.3 Middle Log (#6) Placed on Pins P1 & P2
P3 P9 P1
P2 P8
P4 P5 P6 P7
Valve
Figure 14.2 Bottom Logs (shipped in place)
• Log placement as seen from the valve side of the
appliance. See Figure 14.2.
