B. Vent Components Diagrams (continued)

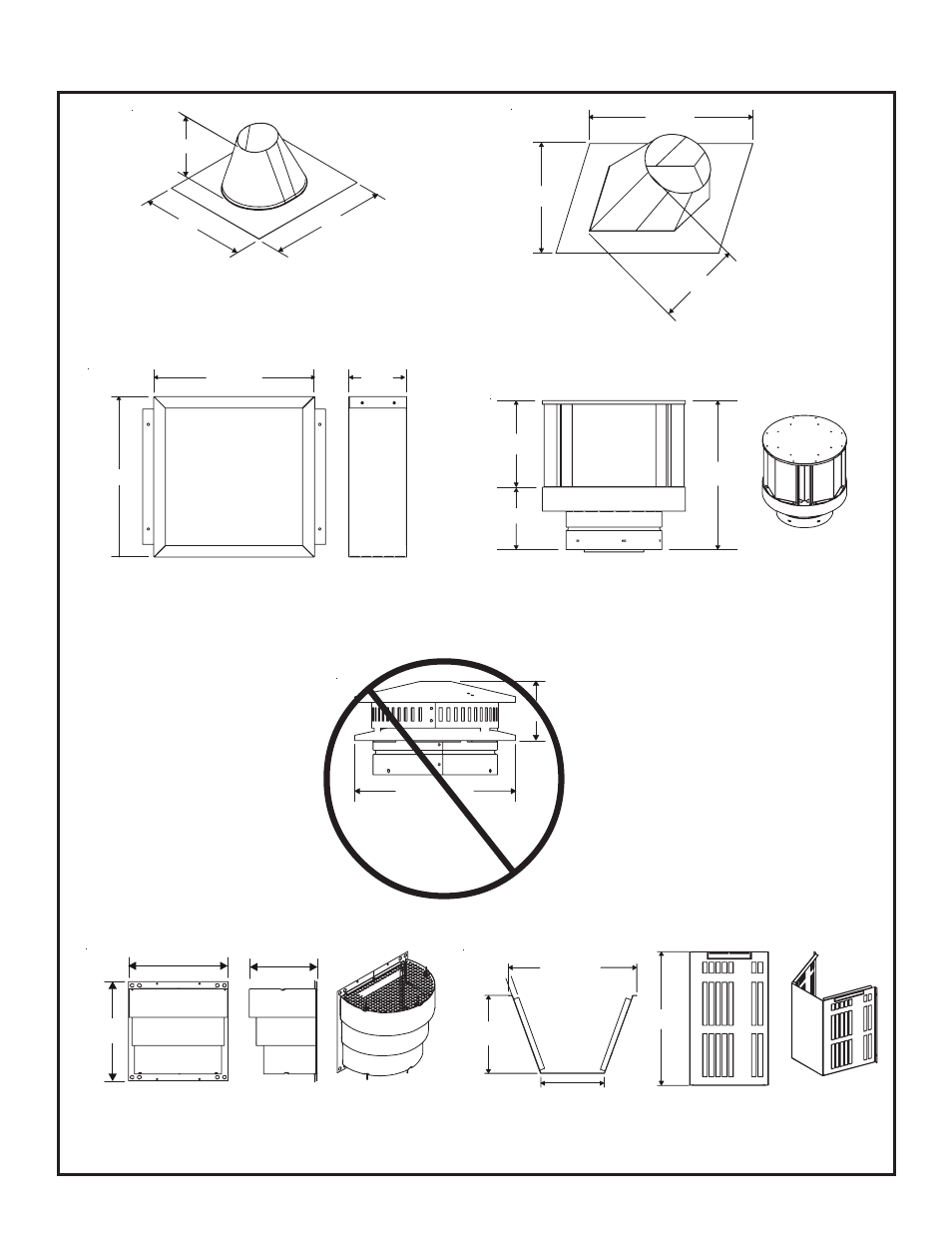

Figure 16.4 DVP vent components

DVP Components

13-1/4 in.

24-5/8 in.

27-1/2 in.

RF6M

Roof Flashing Multi-pak

31 in.

24-5/8 in.

13-1/4 in.

RF12M

Roof Flashing Multi-pak

BEK

Trap Cap Brick Extension

13-3/4 in.

5 in.

13-3/4 in.

7-1/4 in.

5-1/4 in.

12-1/2 in.

DVP-TVHW

Vertical Termination Cap (High wind)

COOL-ADD

Cap Shield

11-5/8 in.

5-3/4 in.

7-1/8 in.

12-1/8 in.

10-1/2 in.

3-7/8 in.

DVP-TV

Vertical Termination Cap

Not for use on this

model.

DRC-RADIUS

Cap Shield

13-7/8 in.

9-1/2 in.

14 in.
