Heat & Glo • Crescent II • 2083-902 Rev. L • 7/08 36
E. Glass Assembly
Handle glass doors with care.
• Inspect the gasket to ensure it is undamaged.
• Inspect the glass for cracks, chips or scratches.
• Do NOT strike, slam or scratch glass.
• Do NOT operate appliance with glass door removed,
cracked, broken or scratched.
• Replace glass door assembly as a complete appliance.
WARNING
HOT! DO NOT TOUCH.
SEVERE BURNS MAY RESULT.
CLOTHING IGNITION MAY RESULT.
• Glass and other surfaces are hot during operation and
cool down.
• Do NOT change bulb when appliance is hot.
WARNING

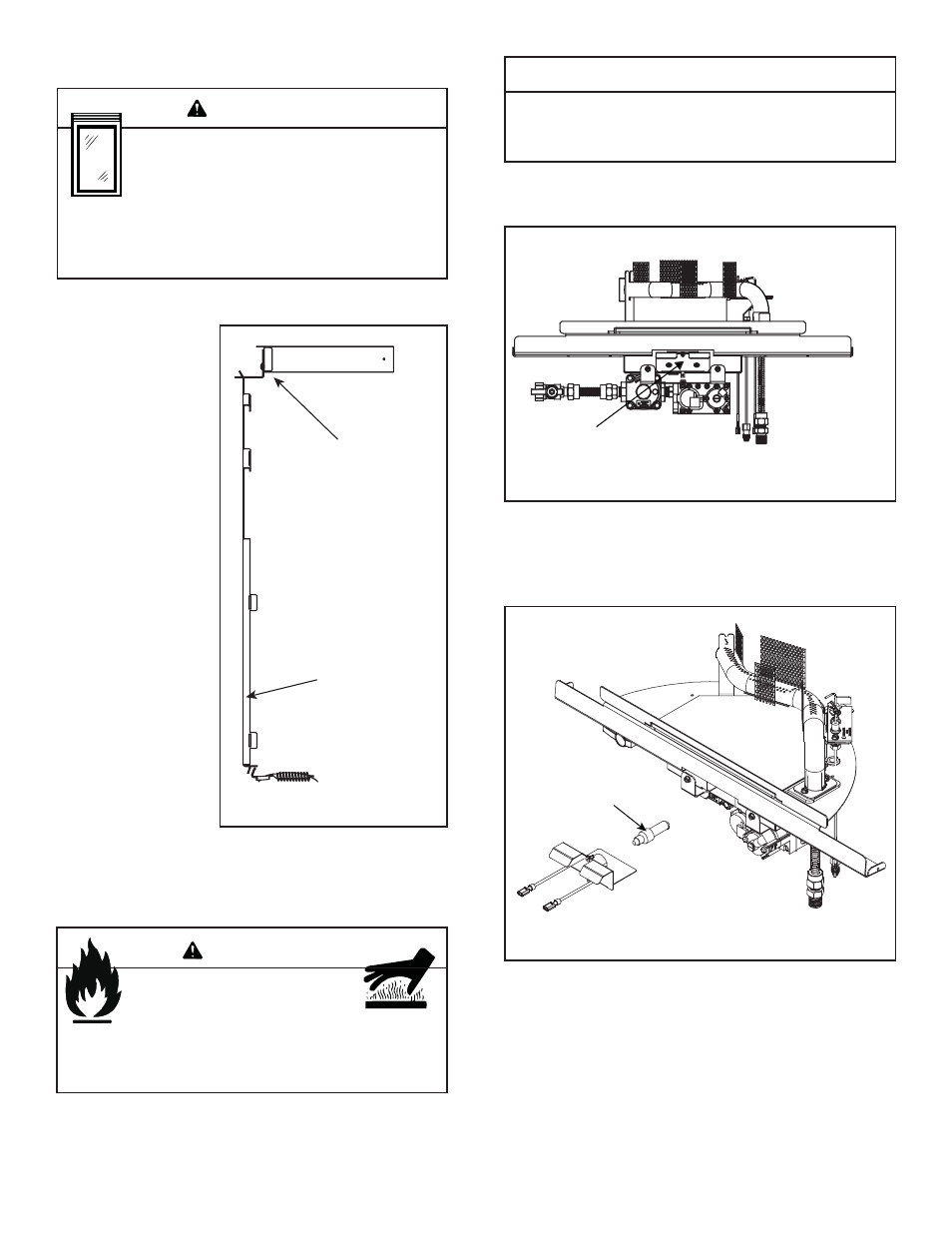

Figure 12.10 Glass Assembly
Removing Glass
Assembly
Pull the two glass
assembly latches out
of the groove on the
glass frame. Remove
glass door from the
appliance (see Figure
12.10).
Replacing Glass
Assembly
Replace the glass
door on the appli-
ance. Slide the top
of glass into slot at
top. Pull out and latch
the two glass latches
into the groove on the
glass frame.
F. Replacing Light Bulb
Avoid damaging light bulb or glass.
• Use cotton gloves or rag to handle bulb. (Oil fi lm on bulb,
including skins oils, will cause premature failure of bulb.)
CAUTION
• Remove old light bulb and replace it with a new bulb (see
Figure 12.12). Recommended replacement: Sylvania
Candelabra 75 watts.
Figure 12.11
Figure 12.12 Light Bulb Location
BRACKET
WITH SLOT
GLASS
ASSEMBLY
TRAY
LIGHT BULB
• Pull out the tray that houses the light bulb (see Figure
12.11).
• Put tray back in original location, making sure that the
tray engages the clip inside the light box and that it is
fl ush with the box.
