Heat & Glo • Crescent II • 2083-902 Rev. L • 7/08 34

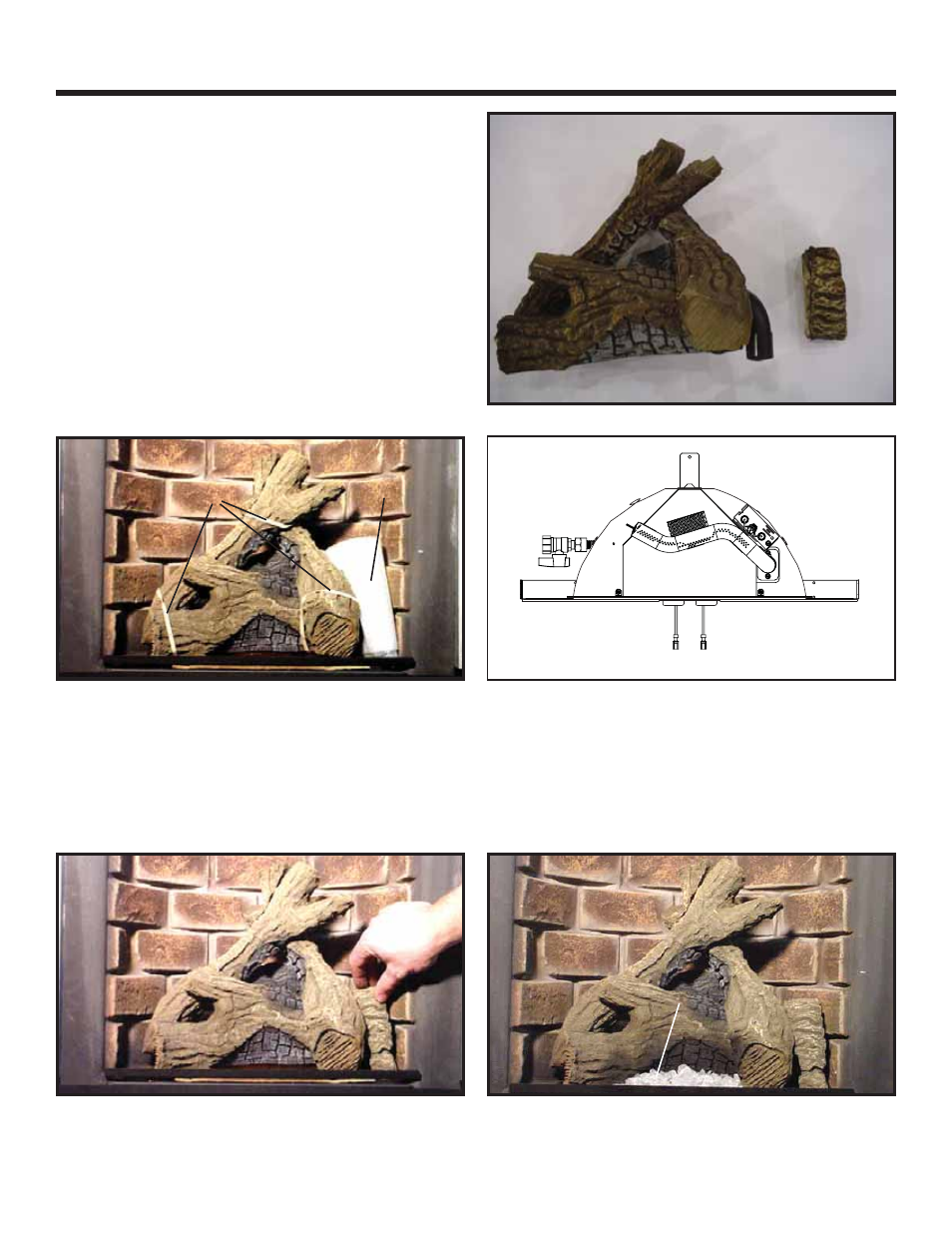

D. Positioning the Logs
2083-903B
Log Set Assembly: LOGS-Crescent II
CAUTION: Logs are fragile.
STEP 1: Remove the rubber band from the log set and the
packing around the log. Check to see if the back lighting /
ember bed bulb works. See Replacing Light Bulb (Section
12.F) in manual if bulb needs to be replaced. STEP 2: LOG REPLACEMENT ONLY: Remove old log set
from fi replace by removing one screw from the pilot. Remove
old logs and burner. Slide the new log set over the orifi ce and
make sure the orifi ce engages into the burner neck. Also,
make sure the pinched end of the burner tube fi ts in the V-
shaped slot in the bracket. Then, install one screw through
the pilot and log set, then through the bracket.
STEP 3: Place log (SRV2083-181) on right side of burner
between burner and fi rebox, and tip the log so it rests on the
burner tube.
RUBBER RUBBER
BANDS BANDS
STEP 4: Place clear rock on top of orange fi lm in front of
log set. It is recommended using the clear rock which is no
bigger than one inch.
LOCATION OF LOCATION OF
CLEAR ROCK
CLEAR ROCK
Figure 12.1
Figure 12.2
Figure 12.3 Logs not shown in picture
Figure 12.5 Figure 12.6
REMOVE REMOVE
PACKING PACKING
