4. Attach the recoil starter to the mower. Remove the
three existing cap screws on the cover. Align recoil
starter so that the draw cord is on the dipstick side of
the engine. Bolt recoil starter  and cover to the
engine. Route the cord through the holders provided
on the lower right hand side handle. Fig. 4-9 and
Fig. 4-10.
5. Place the catcher bag  onto the frame . Fig. 4-11.
Attach the catcher to the mower. Lift the guard and set
the hooks of the catcher on the housing of the mower.
To remove the catcher reverse the previous procedure.
Fig. 4-12
WARNING: When attaching or detaching the catcher,
be sure to turn off the engine. Open or close the guard
slowly. Also, do not place your finger(s) between the
guard and the mower.
NOTE: Before operating the mower, oil and unleaded gaso-
line need to be added to the engine. Add 1.4 pints (.65 L) of
SAE 10W-30 oil and a half gallon (1.8 L) of gasoline to the
engine.
B. Mulch kit
NOTE: Do not operate in conditions that cause the engine to
bog down or stall. When cutting thick grass, or high grass,
adjust the cutting height of the deck to a suitable setting. It

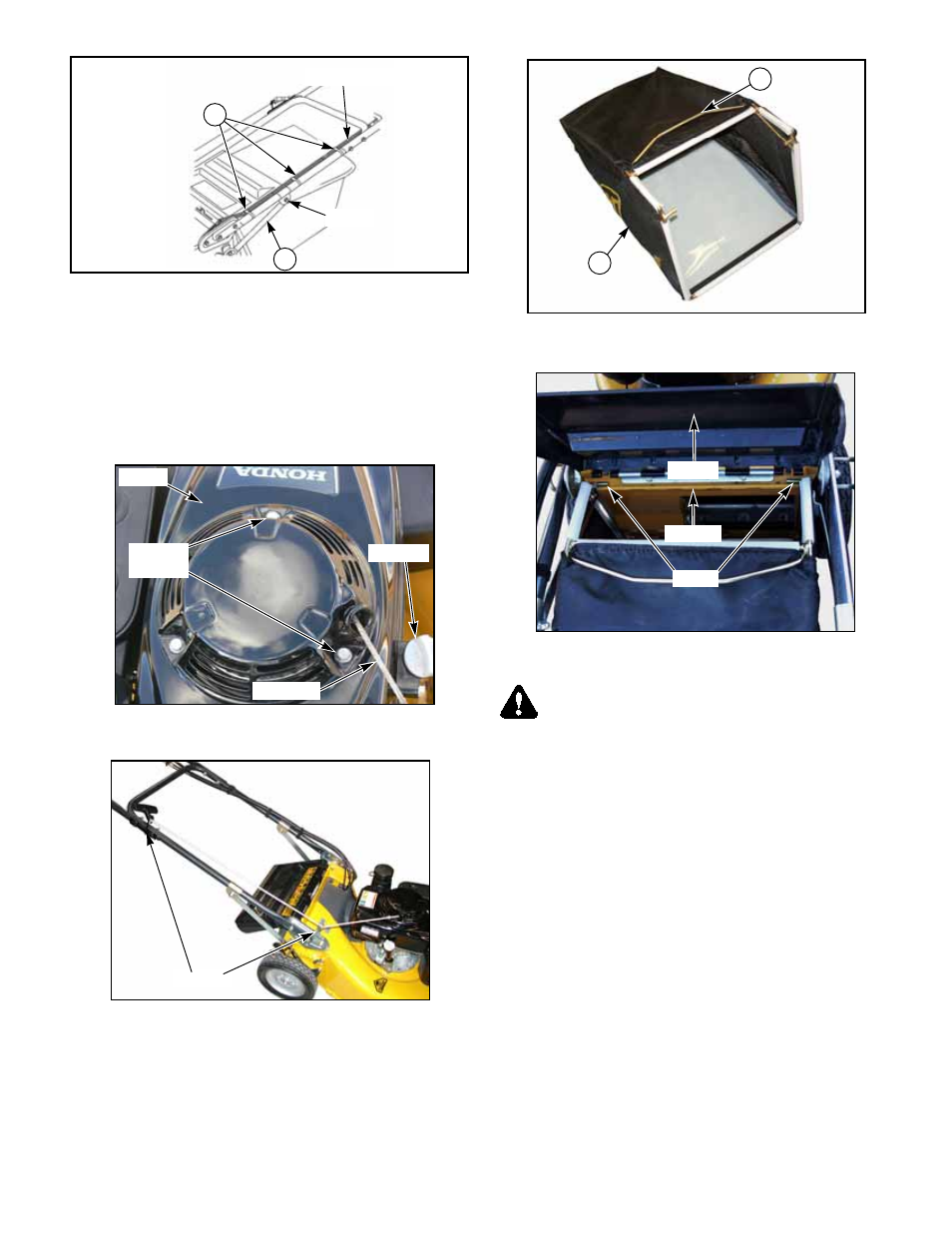

Fig. 4-8
Fig. 4-9
Fig. 4-10
11
12
Cable harness
Loosen
Cover
Existing
hardware
Draw cord
Dispstick
Holders
Fig. 4-11
Fig. 4-12
Item P/N Description Qty
1 71906-460 Multi cutting blade set 2
2 91014-183 Blade 1
3 91014-182 Blade 1
4 11024-150 Clip 1
5 11086-198 Clip (stopper) 1
6 31044-134 Plug 1
7 60124-220 Spacer 1
8 31057-220 M10 x 30 x 1.25 2
9 335L-0610 M6 x10 x 1.0 1
4
5
Guard
Housing
Hook
