Connecting analog audio

To connect analog audio:

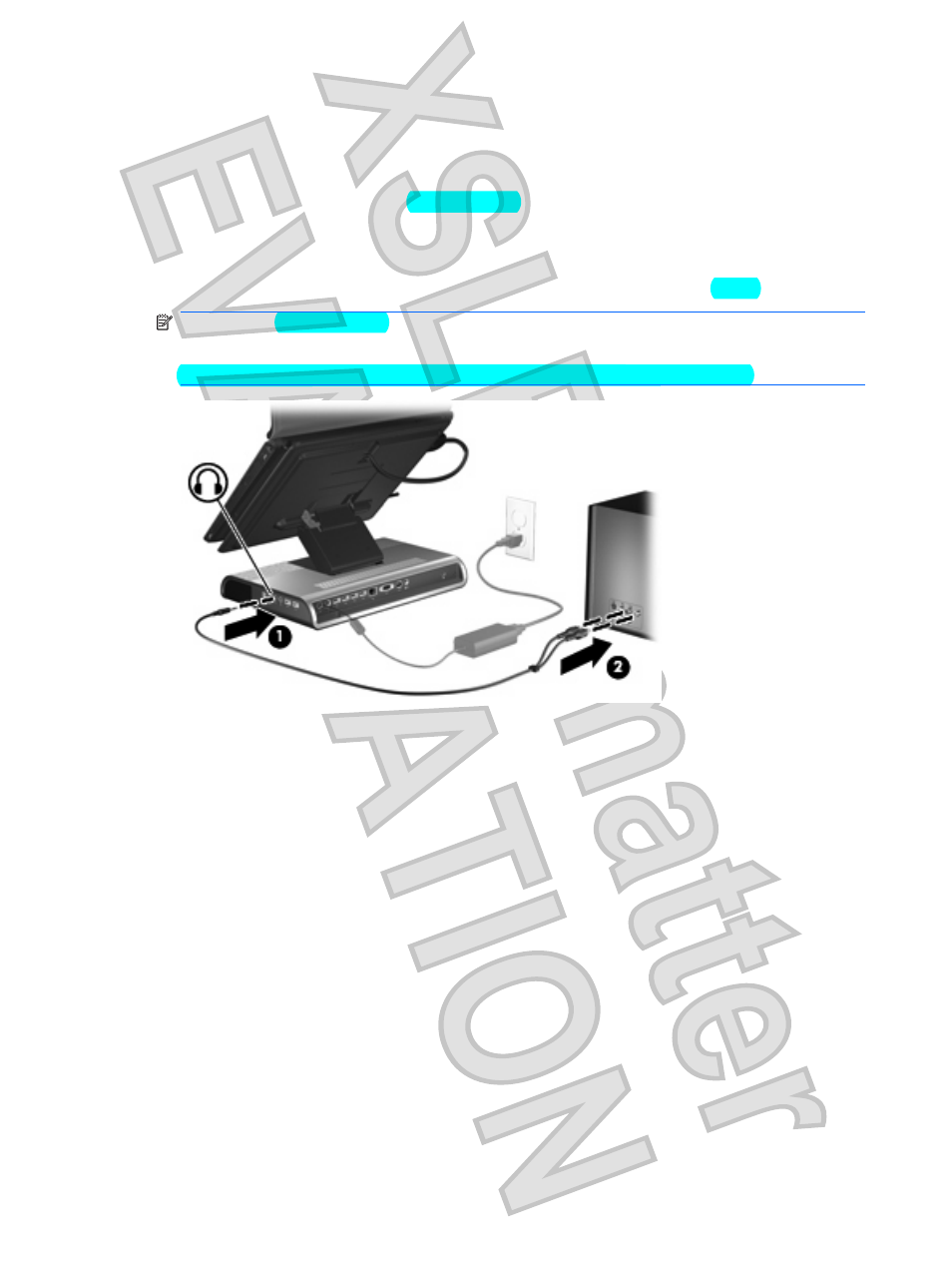

Connect the single-connector end of an audio Y-cable (purchased separately) to the headphone
jack (1) on the right panel of the docking station.

Connect the red and white connectors (2) on the other end of the cable into the red and white audio-
in jacks on your television or stereo equipment .

Refer to your television or stereo equipment user guide for the jack names, colors and locations.

NOTE:

The docking station speakers are muted when a device is connected to the headphone

jack.

NOTE:

Volume is controlled using controls located on the analog audio device.
