6 P43 Pellet Stove
installing
Place the stove on a noncombustible floor protector
that extends a minimum of 6 inches to the front, (mea-
sured from the glass) 6 inches to the sides and 1 inch
to the rear of the hopper. In some places, it is required
that floor protection be installed under any horizontal
venting.The minimum floor protector material is 20
gauge sheet metal. Other floor protector materials are
ceramic tile, stone, brick, etc.
Place the stove away from combustible walls at
least as far as shown in Figures 3,4 and 5. Note the
difference in side wall clearance with and without side
shields.
Note that the clearances shown are minimum for
safety but do not leave much room for access when
cleaning or servicing.
Connect the power cord to a 10 V.A.C. 60Hz
grounded receptacle. (A surge protector is recom-
mended to protect the circuit board.) If the voltage
entering your home is below 116 volts your stove may
not work properly. Also be sure that the polarity of the
outlet that the stove is plugged into is correct.
Prior to installing the flue pipe, connect a draft meter.
(The draft meter must have a minimum range of 0-
.5.)Record the first reading. Connect flue pipe to stove
and be sure all doors and windows in the home are
closed. Record the second draft reading_______. If
the second reading is more than .05" lower than the
first reading, check for possible restrictions or the need
for outside air (see page 9). For more information on
the draft test procedure, refer to Page 0.
Mobile home installation
When installing this unit in a mobile home, several
requirements must be followed:
1. The unit must be bolted to the floor. This can be
done with 1/4" lag screws through the holes in the
base plate.
. The unit must also be connected to outside air.
See page 9.
3. Floor protection and clearances must be followed
as shown.
4. Unit must be grounded to the metal frame of the
mobile home.
cautiOn: this appliance must be vented to the
outside.
Due to high temperatures, the stove should be placed
out of traffic and away from furniture and draperies.
Children and adults should be alerted to the hazards
of high surface temperatures and should stay away to
avoid burns to skin and/or clothing.
Young children should be carefully supervised when
they are in the same room as the stove.
Clothing and other flammable materials should not
be placed on or near this unit.

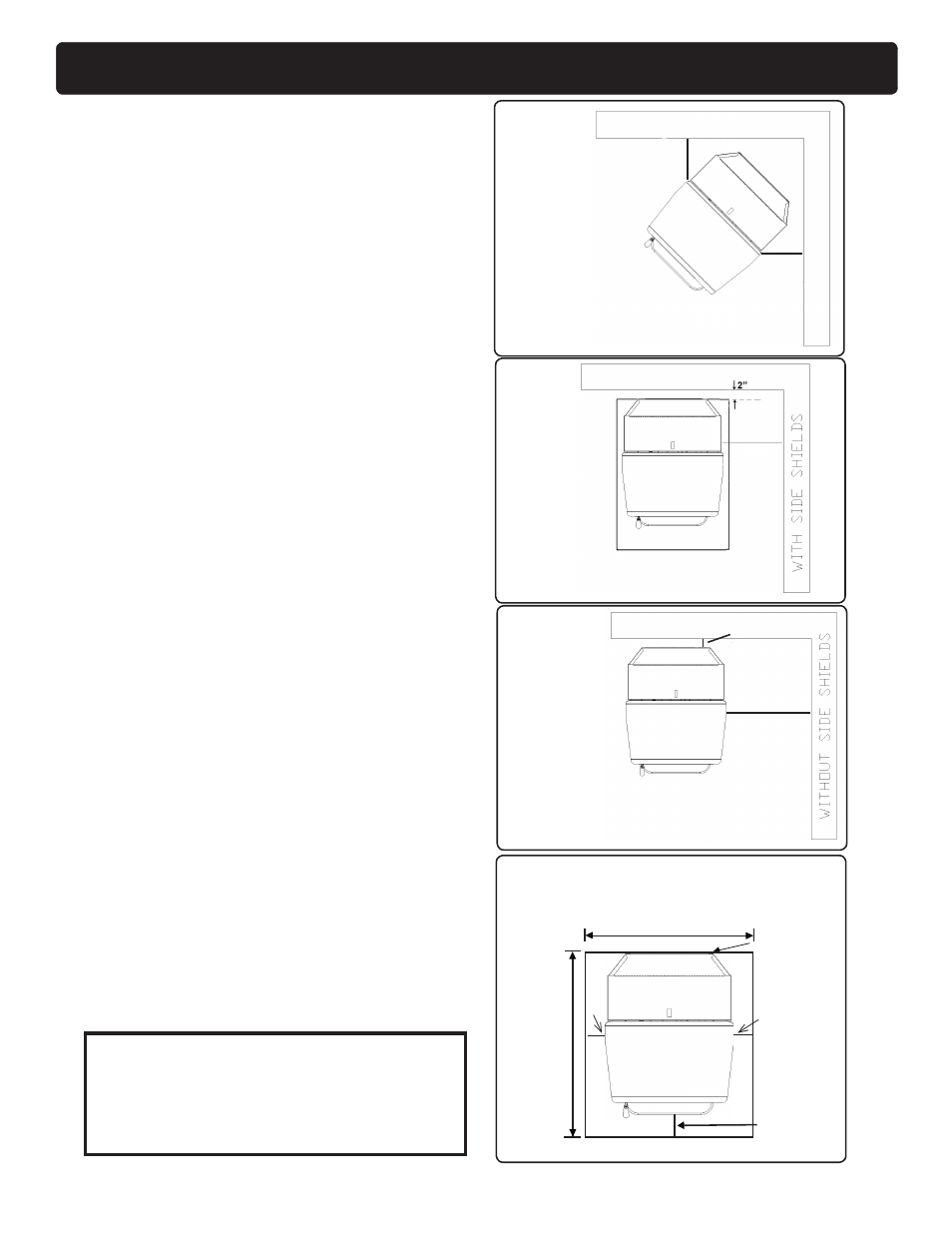

installation
9"
9" With or Without Side Shields
Floor Protection must be 2 inches to each side, 6
inches to the front, and 1 inch to the back of the
stove. Floor Protector minimum: 32½" wide x 33"
deep.
Fig. 3
Fig. 4
Fig. 6
6"
6"(measured
from glass)
1"
Fig. 5
16"
2"
3½" minimum
6"
33
" minimum
Mobile/Manufactured home Standards
do not allow installation in rooms
designated For Sleeping.
warning
9"
10"
