ESP
probe
8. Clean the combustion blower wheel with a brush and
a vacuum cleaner. Note: Do not use a household
vacuum to clean the stove. We recommend that you
use a shop vacuum that is equipped with a fine dust
filter called a HEPA filter or a vacuum specially made
for fly ash and soot. USING A VACUUM WHICH
IS NOT EQUIPPED WITH A FINE DUST FILTER
WILL BLOW FLY ASH AND SOOT OUT INTO THE
ROOM.
NOTE: THE STOVE MUST BE COMPLETELY OUT
BEFORE YOU VACUUM THE STOVE. LIVE PEL-
LETS, IF SUCKED INTO THE VACUUM WILL LIGHT
THE VACUUM ON FIRE AND MAY ULTIMATELY
CAUSE A HOUSE FIRE.
9. Use a brush to clean the flue, being careful not to
damage the ESP probe, see Fig. 30. The flue goes
straight through into the vent pipe (Fig.7) therefore,
the vent pipe can also be cleaned to some extent
through the flue outlet.
10. Reinstall blower cover and relatch.
11.Slide ash pan into stove and latch the door.

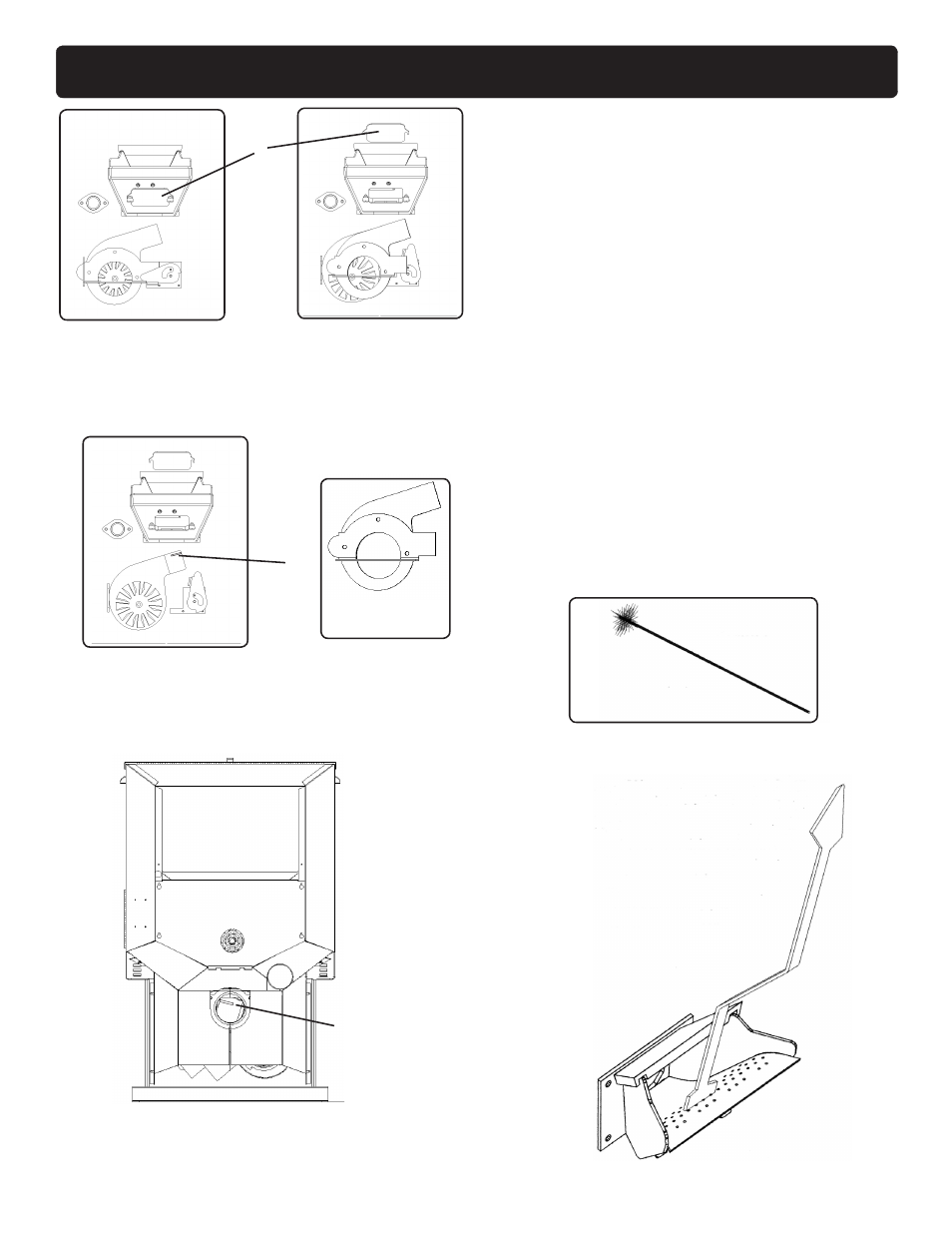

Fig. 30
Fig. 31
Fig. 33
Be careful not to
damage ESP probe
when cleaning with
brush.
Soot and Fly ash
The products of combustion will con-
tain small particles of fly ash which must
be removed from the inner walls of the
stove and from the venting system
periodically. Removing fly ash and
soot improves efficiency, insures
that the flue venting passageway is
clear and unobstructed. The stove
should be cleaned after each ton
of pellets (50 bags) and the
venting system inspected
and cleaned after each
heating season.
Maintenance
Burn pot
Clean-out
plate
Latch "open "with blower
cover partly removed. Burn
pot clean-out is open.
Latch "closed "with blower
cover in place. Burn pot
clean-out is closed.
Fig. 32
Brush, not
supplied, can
be found in
hardware stores.
Fig. 29 Fig. 28
ESP
Probe
