Connect network cables.
Connect the network cables as described below. You should also make
sure that all network equipment and links are ready.
C a u t i o n Static discharge may damage equipment. Do not touch the connector
pins on the interface card or on the cable.
1. Secure the D-connector on the token ring cable to the token ring
port, using the screws on the connector.
2. Connect the medium interface connector (MIC; see figure 14, page
18) on the token ring cable to the token ring Trunk Coupling Unit
(TCU).
Swap Factory Test
1 2 3 4
Token ring cable
Trunk Coupling Unit (TCU)

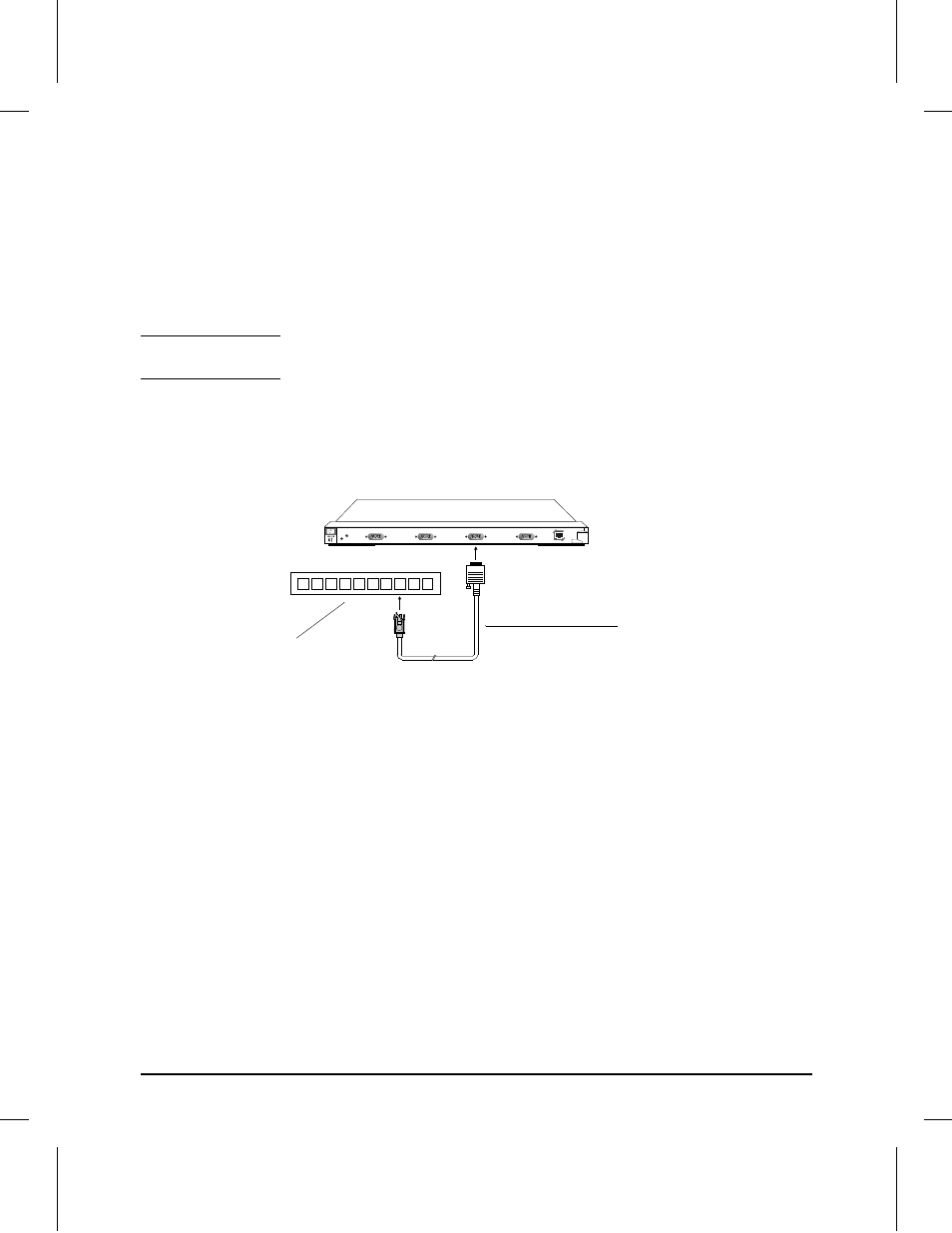

Figure 12. Connecting Token Ring Cable
Installation
Connect network cables.
14
