Page 11 SKU 94564 For technical questions, please call 1-800-444-3353.
Attach a Fender (22) to the left Fender Seat (23), using the M10 x 20 Bolts (A) and 3.
M10 Nylon Nuts (I). (See Figure F.)
Attach a Fender (22) to the right Fender Seat (23), using the M10 x 20 Bolts (A)
4.
and M10 Nylon Nuts (I). (See Figure F.)
On each side, place a Spring (15) on the Spring Hangers (12L, 12R) with the spring
5.
eyes forward. Insert an M14 x 80 Bolt (G) through the Springs, and secure the Bolts
with M14 Nuts (K) and 3mm Cotter Pins (S). (See Figure F.)
Place the Axle (16) on top of the Springs (15). Place a Spring Plate (14) under the
6.
Springs. Insert a U-Bolt (17) through the Axle, Springs, and Spring Plates. Secure
the Axle with M10 x 20 Bolts and M10 Nylon Nuts (G) screwed onto the U-Bolts.
(See Figure F.)
Phase 7: BEARING PACKING
Warning: Read and adhere to the following instructions; failure to read and obey
all of the following instructions COMPLETELY will void the warranty and can
result in damage to the trailer, property damage, or SERIOUS PERSONAL INJURY.
IMPORTANT: 1. Whenever a Hub (18) on a new Trailer requires assembly (or if
a Hub is disassembled for maintenance) the following procedures MUST be
followed:
19
18
31
L
21
M
O
20
T
NOTE:
Periodically, grease the Seal (99)
on the backside of the Hub (18)

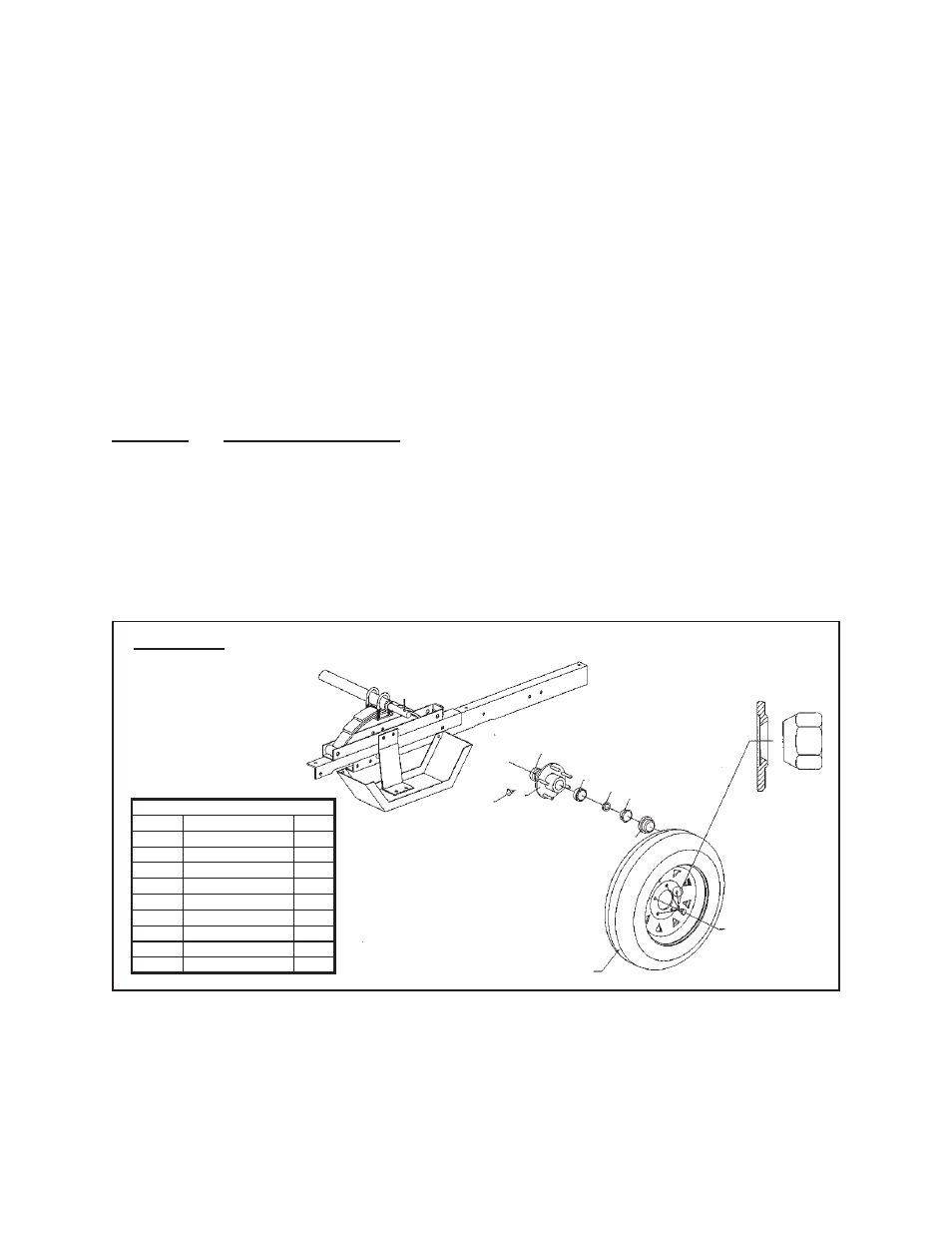

FIGURE G
Parts Needed
Part # Description Qty.
18 Hub 2
19 Tire/Wheel Assy. 2
20 Bearing 2
21 Dust Cap 2
31 Grease Fitting 2
L M12 Lug Nut 10
M M20 Castle Nut 2
O 20 Flat Washer 2
T 4mm Cotter Pin 2
a. Using a suitable solvent, thoroughly clean the Hub (18), Bearings (20), Castle
Nut (M), Dust Cap (21), and the rest of the parts of the Hub Assembly of all
grease, dirt, metal shavings, and all other foreign objects. These parts must
be cleaned, even if they are new or appear to be clean.
(See Figure G.)
REV 10d
