Page 10 SKU 94564 For technical questions, please call 1-800-444-3353.
Phase 5:
With assistance, turn the frame upside down. 1.

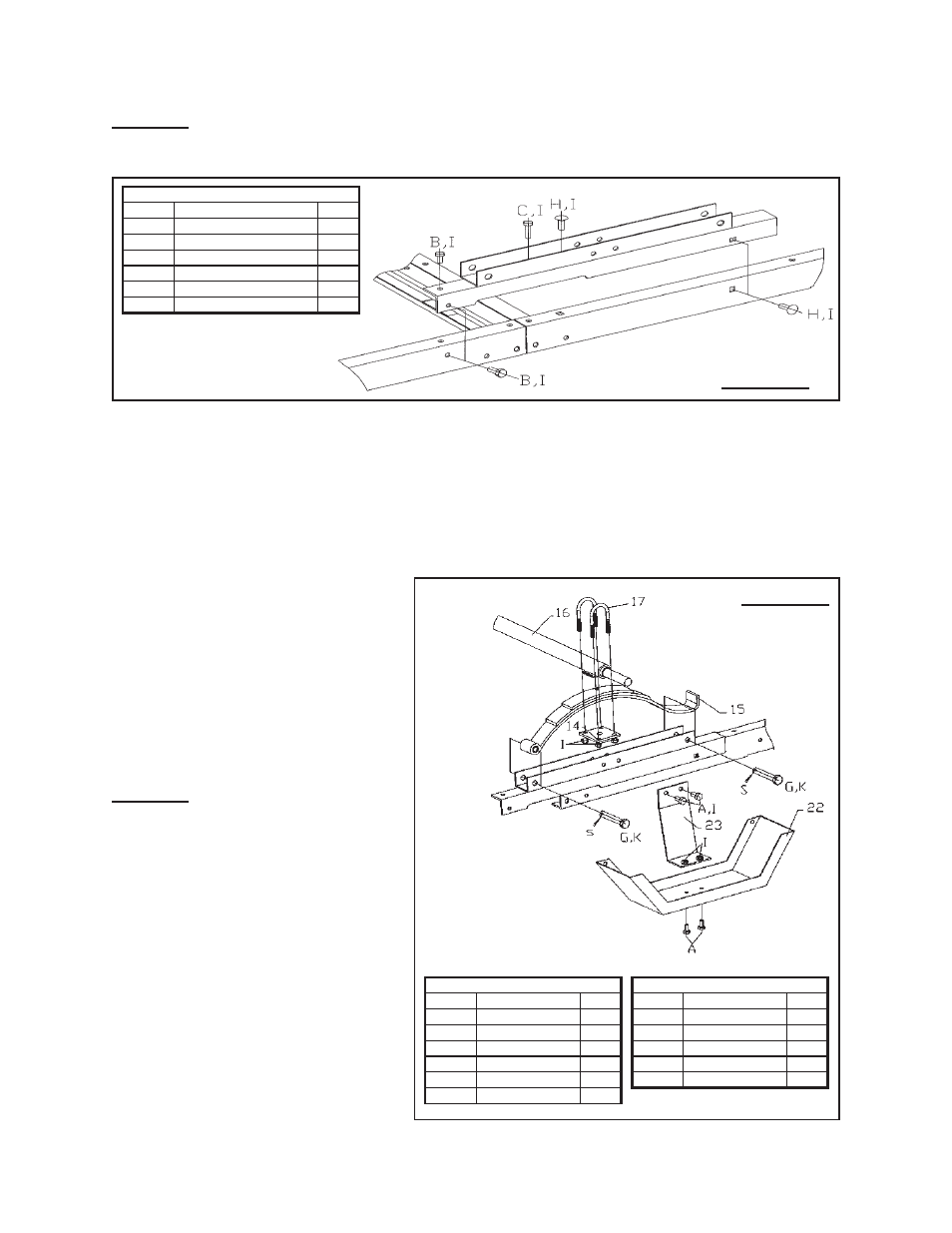

FIGURE E
12L
1FL
Parts Needed
Part # Description Qty.
12L Left Spring Hanger 1
12R Right Spring Hanger 1
B M10 x 25 Bolt 6
C M10 x 30 Bolt 2
H M10 x 30 Carriage Bolt 4
I M10 Nylon Nut 12
2. Attach the Left Spring Hanger (12L) to the Front Left Side Rail (1FL), using the M10
x 25 Bolts (B) and M10 Nylon Nuts (I). (See Figure E.)
Attach the Right Spring Hanger (12R) to the Front Right Side Rail (1FR), using the
3.
M10 x 25 Bolts (B) and M10 Nylon Nuts (I). (See Figure E.)
Attach the Left Spring Hanger (12L) to the Rear Left Side Rail (1RL), using the M10
4.
x 30 Bolts (C), M10 x 30 Carriage Bolts (H), and M10 Nylon Nuts (I).
(See Figure E.)
Attach the Right Spring Hang-
5.
er (12R) to the Rear Right
Side Rail (1RR), using the
M10 x 30 Bolts (C), M10 x 30
Carriage Bolts (H), and M10
Nylon Nuts (I).
(See Figure E.)
Phase 6:
Attach a Fender Seat (23) to 1.
the Left Spring Hanger (12L),
using the M10 x 20 Bolts (A)
and M10 Nylon Nuts (I).
(See Figure F.)
Attach the remaining Fender
2.
Seat (23) to the Right Spring
Hanger (12R), using the M10
x 20 Bolts (A) and M10 Nylon
Nuts (I). (See Figure F.)
FIGURE F
Parts Needed
Part # Description Qty.
14 Spring Plate 2
15 Spring 2
16 Axle 1
17 U-Bolt 4
22 Fender 2
23 Fender Seat 2
Parts Needed
Part # Description Qty.
A M10 x 20 Bolt 8
G M14 x 80 Bolt 4
I M10 Nylon Nut 16
K M14 Hex Nut 4
S 3mm Cotter Pin 4
