4
install the scanner
English

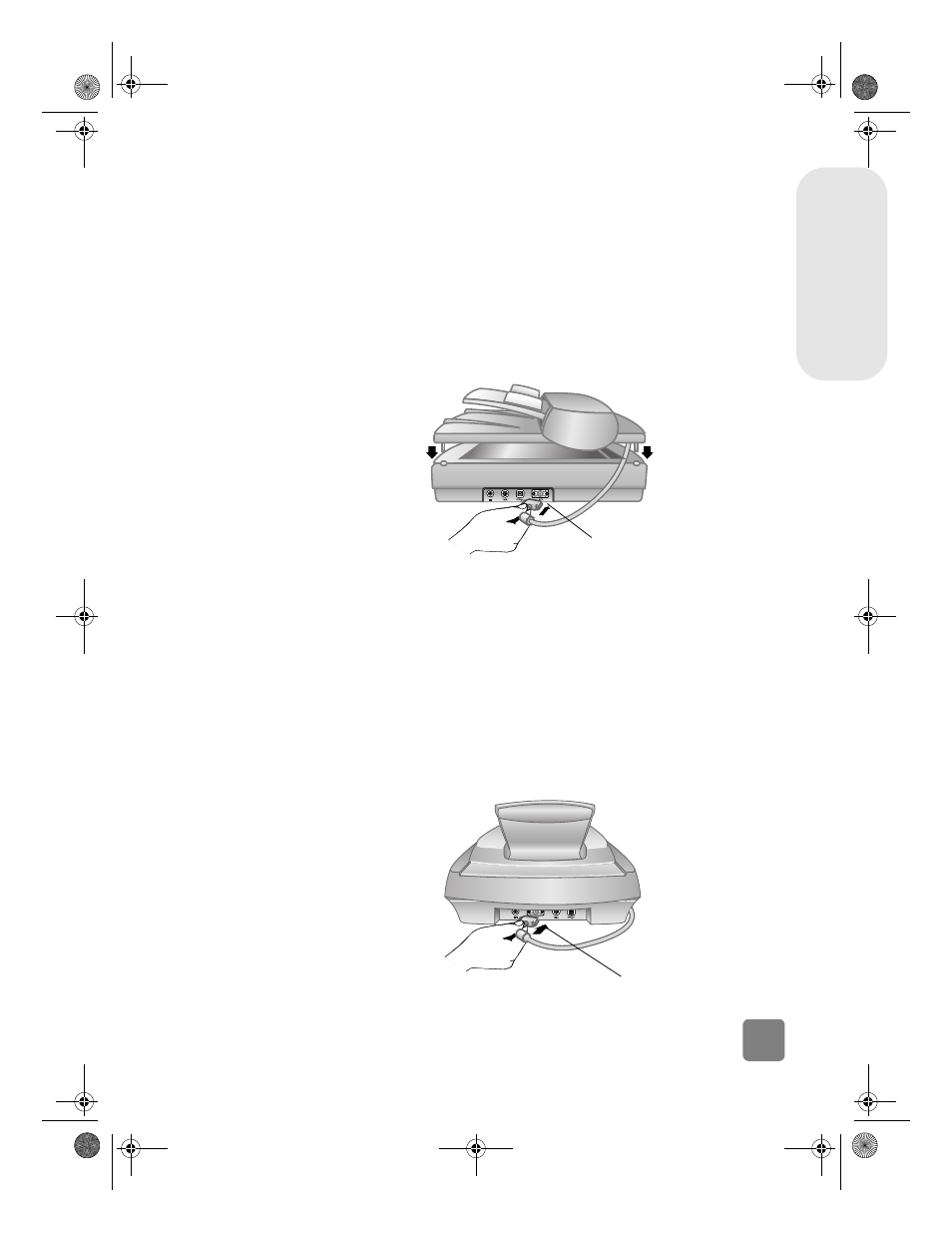

connect the ADF
If your scanner has an automatic document feeder (ADF), it allows you to scan
multiple pages.
1 Disconnect the power cable from the scanner.
2 If your scanner has a lid attached to it, remove the lid by raising it and then
pulling it straight up.
3 Attach the ADF by inserting the ADF hinges into the scanner hinge slots.
4 Connect the ADF cable to its port on the scanner.
5 Reconnect the power cable.
connect the APF
If your scanner has an automatic photo feeder (APF), it allows you to scan multiple
photos.
1 Disconnect the power cable from the scanner.
2 If your scanner has a lid attached to it, remove the lid by raising it and then
pulling it straight up.
3 Attach the APF by inserting the APF hinges into the scanner hinge slots.
4 Connect the APF cable to its port on the scanner.
5 Reconnect the power cable.
ADF port
APF port
