G. Install the Log Assembly
Log Set Assembly: LOGS-I30
Models: Supreme-I30, Supreme-I30-SP, Supreme-I30AU
CAUTION: Logs are fragile, handle with care. Log #1 (SRV2206-701): Bend the log tab into the upright position as shown in
Figure 1. Position Log #1 as shown in Figure 2. The left end of the log should rest on the log support. Mate the right end of the log
with the right grate tine. Rotate log clockwise, until the right end of the log engages the right grate tine, and the left end of the log
touches the log tab shown in Figure 1.

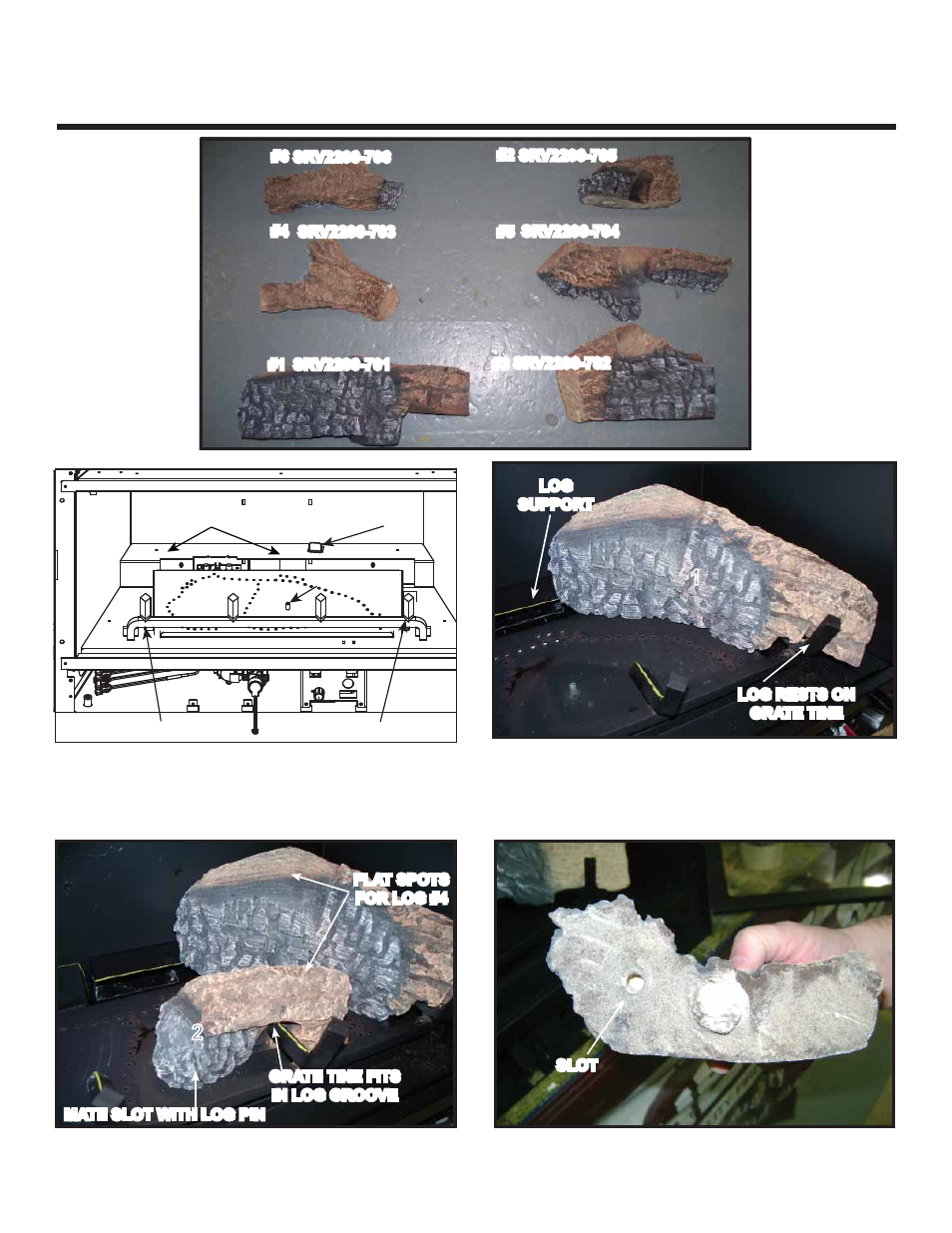

Figure 1. Figure 2. Install Log #1
Figure 3. Log #2 Figure 4. Place Log #2
Log #2 (SRV2206-705): Position Log #2 as shown in Figure 3. Mate the slot located on the bottom of Log #2 (Figure 4) with the
log pin located on the surface of the burner. Rotate the right end of Log #2 clockwise, until it comes into contact with the grate tine.
LOG
SUPPORT
FLAT SPOTS
FOR LOG #4
MATE SLOT WITH LOG PIN
GRATE TINE FITS
IN LOG GROOVE
LOG RESTS ON
GRATE TINE
1
2
SRV2206-701 SRV2206-702 #1 #3
SLOT
2
LOG TAB LOG SUPPORTS
LOG PIN
LEFT GRATE TINE RIGHT GRATE TINE
SRV2206-703 SRV2206-704 #4 #5
SRV2206-706 SRV2206-705 #2 #6

