Heat & Glo • Grand-I35, Grand-I35-SP, Supreme-I30, Supreme-I30-SP • 2206-900 Rev. K • 6/11 34
2205-935B

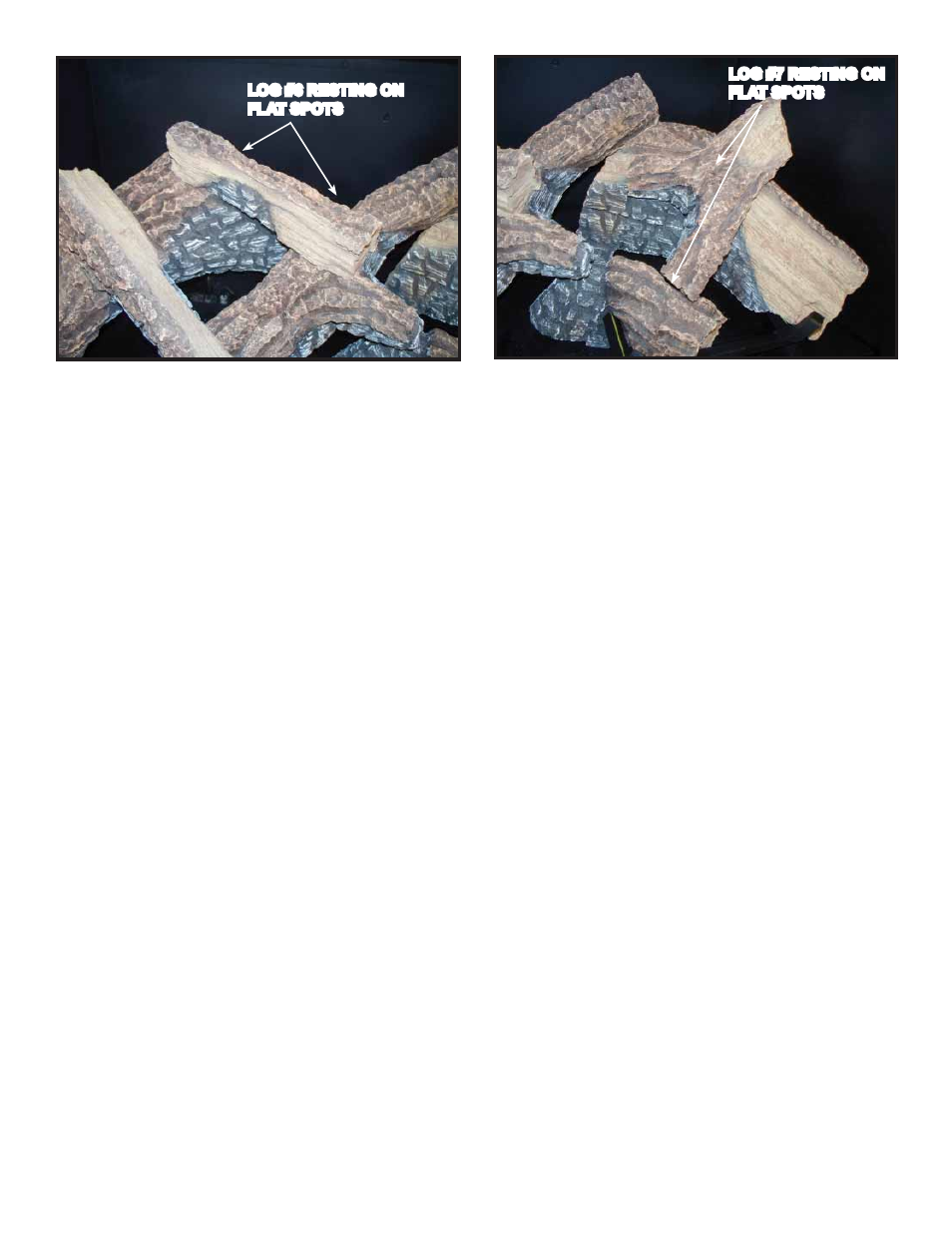

Figure 11. Log #6 Figure 12. Log #7
LOG #6 RESTING ON
FLAT SPOTS
LOG #7 RESTING ON
FLAT SPOTS
Log #6 (SRV2205-706): Position Log #6 as shown in Figure 11. Ensure that the correct end of the log rests on the fl at
spots. The thicker end points forward. Locations of fl at spots are indicated in Figure 3 and Figure 9.
Log #7 (SRV2205-703): Position Log #7 as shown in Figure 12. Position the point of the log on the fl at spot of Log #3.
Place the wider end of the log on the fl at spot of Log #2. See Figure 5 and Figure 7 for locations of fl at spots.
6 7
