Heat & Glo • Grand-I35, Grand-I35-SP, Supreme-I30, Supreme-I30-SP • 2206-900 Rev. K • 6/11 32

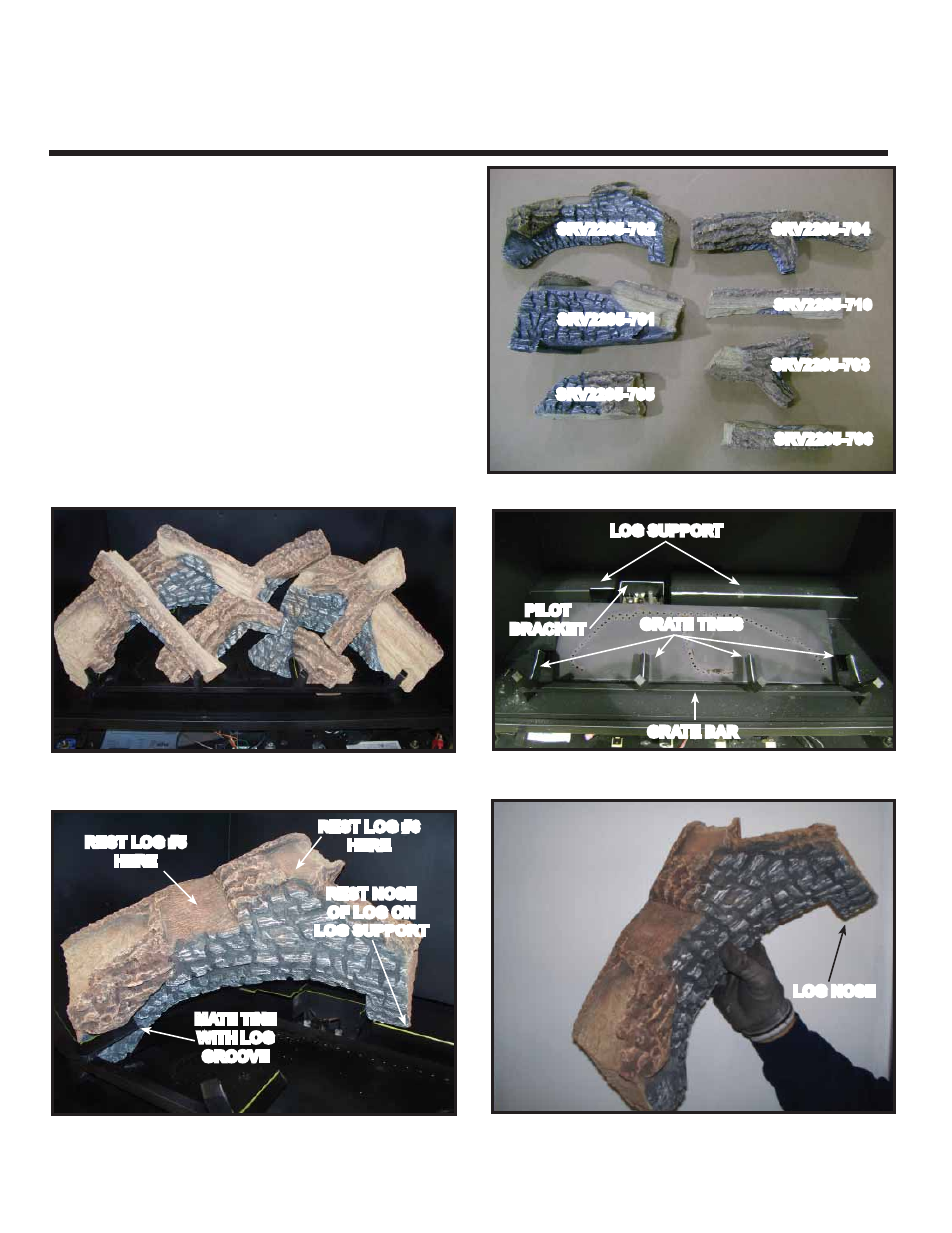

G. Install the Log Assembly
Log Set Assembly: LOGS-I35
Models: GRAND-I35, GRAND-I35-SP
CAUTION: Logs are fragile, handle with care.
Figure 1. Log Set Installed Figure 2. Reference Points
Figure 3. Log #1 Figure 4. Log #1
MATE TINE
WITH LOG
GROOVE
LOG SUPPORT
PILOT
BRACKET
GRATE BAR
GRATE TINES
Log #1 (SRV2205-702) Position Log #1 as shown in Figure 3. Mate the left grate tine with the log groove. Rest the nose of
the log on the log support as shown.
REST LOG #6
HERE REST LOG #5
HERE
REST NOSE
OF LOG ON
LOG SUPPORT
LOG NOSE
1
SRV2205-702 SRV2205-704
SRV2205-701
SRV2205-710
SRV2205-703
SRV2205-705
SRV2205-706
#2
#1
#3
#5
#6
#7
#4
