1 - 18 IMAGETEAM™ 2020/5620 System Manual

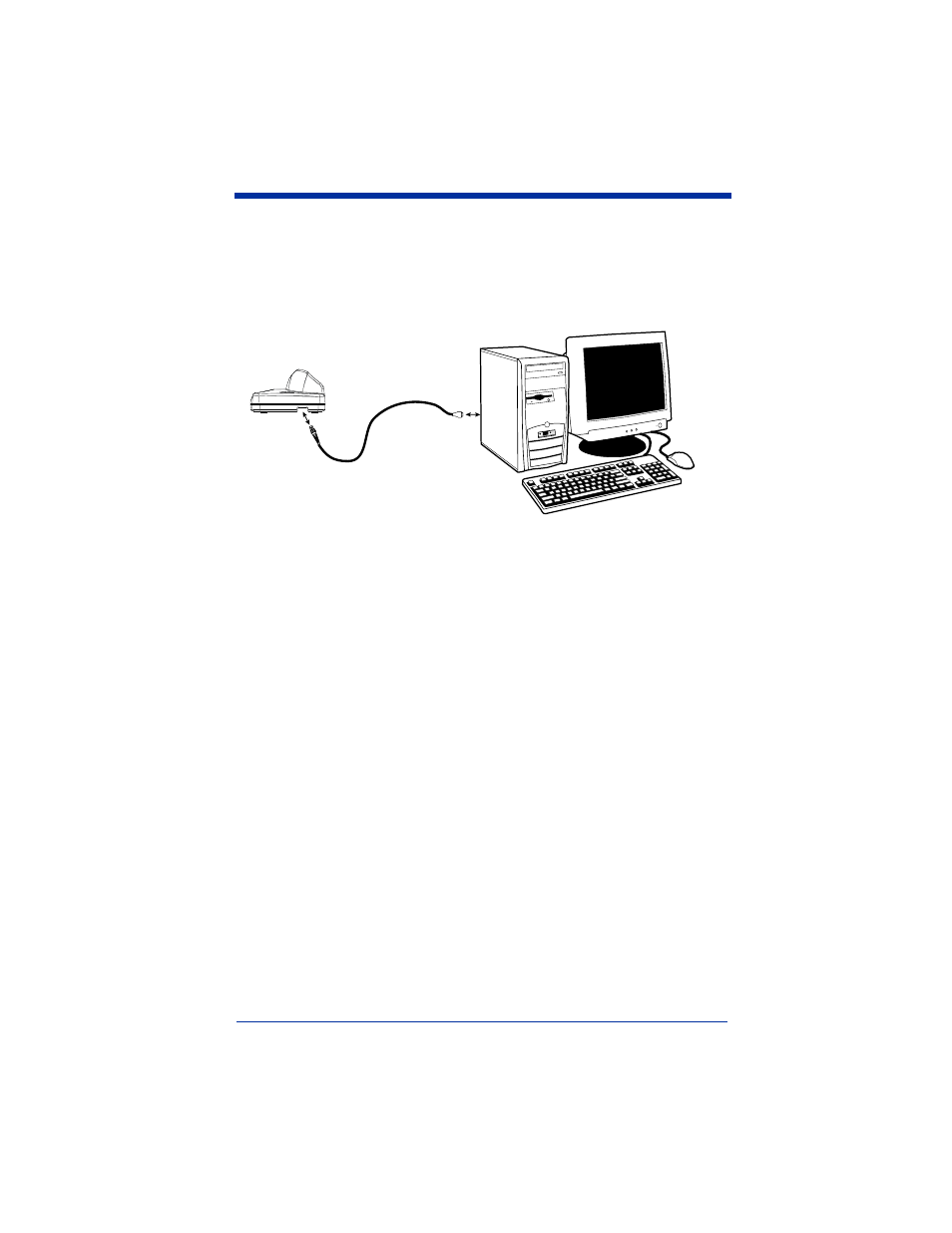

Connecting the Base with USB
A base can be connected to the USB port of a computer.
1. Connect the appropriate interface cable to the base and to the computer.
2. Program the base for the USB interface. (See "Connecting the Base with
USB" on page 1-18.)
3. Verify the base operation by scanning a bar code from the Sample Symbols
in the back of this manual.
For additional USB programming and technical information, refer to Hand Held
Products’ “USB Application Note,” available at
www.handheld.com .
Note: Without using the 9-volt external, power supply, the base only uses
enough power from the host to operate the interface. The scanner’s
battery is not charged when in this mode. Using the 9-volt, external power
supply allows the scanner’s battery to be charged, and no power is drawn
from the host.
