ASSEMBLY

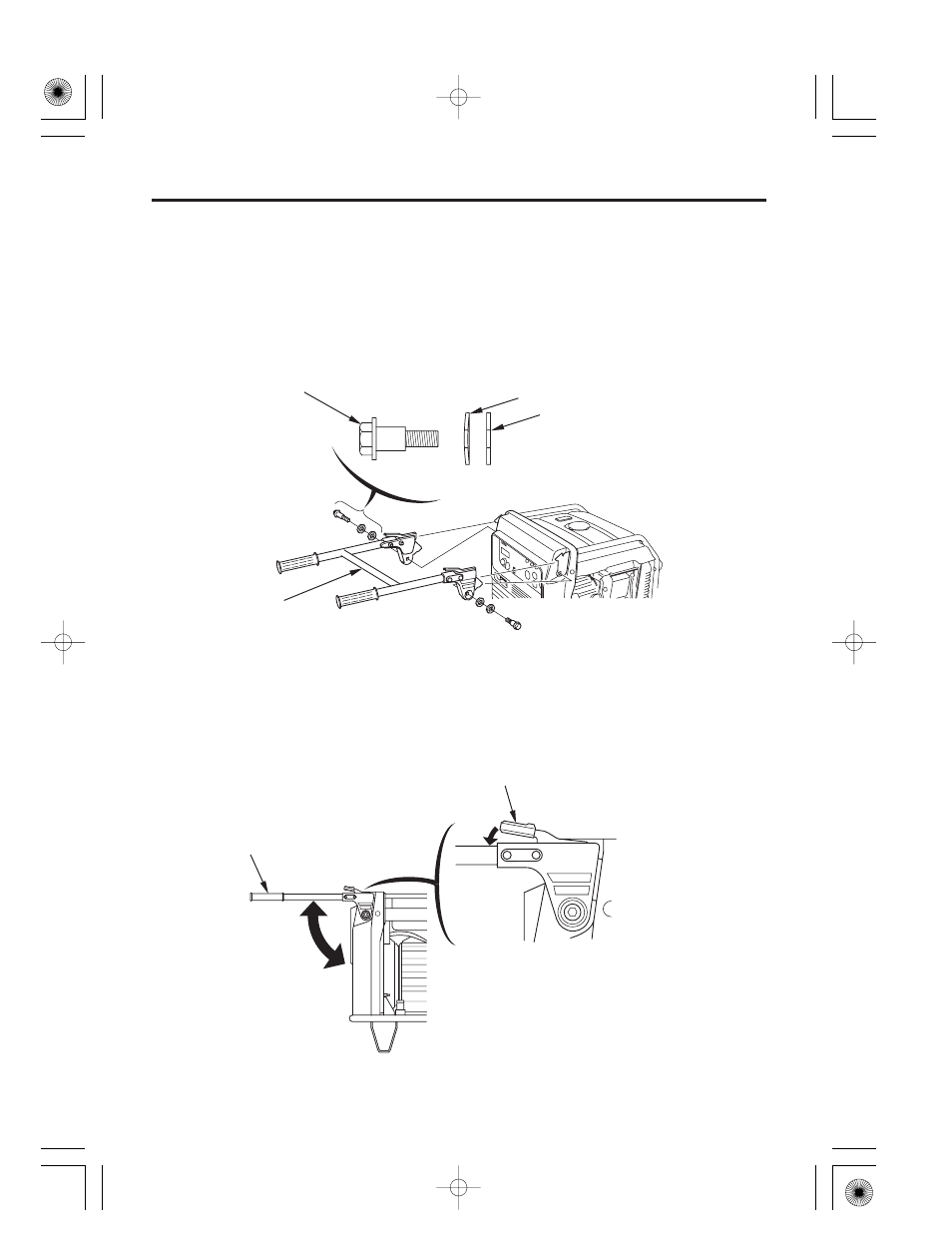

Handle Installation
To extend handle:
TORQUE:
SPRING WASHER (2)
12 mm WASHER (2)
HANDLE HOLDER BOLT (2)
HANDLE ASSEMBLY
HANDLE
HANDLE LOCK LEVER
17
22 lbf·ft (24
29 N·m , 2.4
3.0 kgf·m)
Operation must be checked after attaching a handle.
Raise the handle to the horizontal position. The handle will click into
place when locked.
Install the handle assembly on the generator upper frame using the
12 mm washers, spring washers and handle holder bolts.
