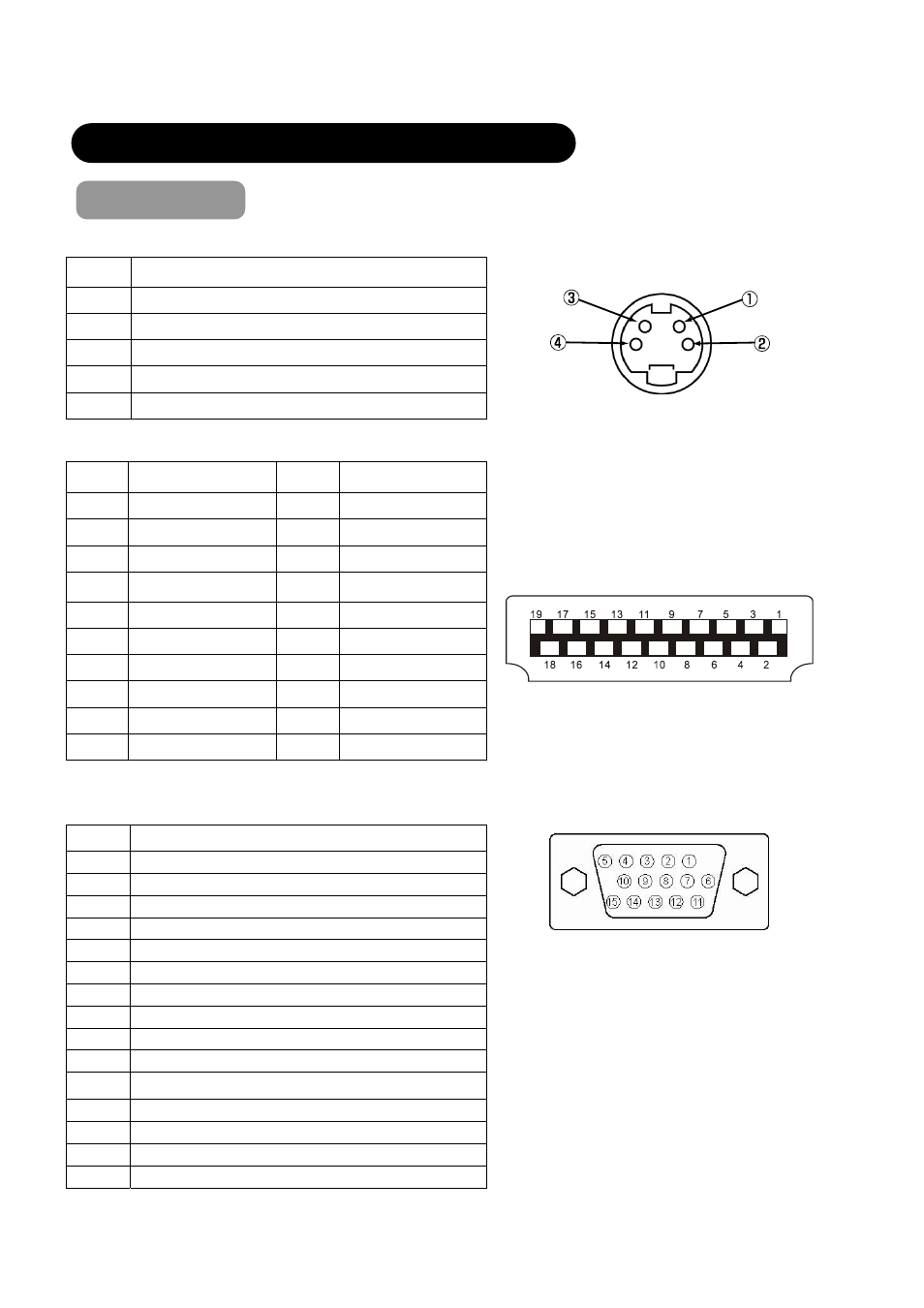

PRODUCT SPECIFICATIONS (continued)
Signal Input
S-input connector pin specifications
Pin Input
signal
1 Y
2 Y-GND
3 C
4 C-GND
Frame GND
HDMI connector Input pin specifications
Pin Input
signal Pin Input
signal
1
T.M.D.S. Data2+
11
TMDS Clock Shield
2
T.M.D.S. Data2
12
TMDS Clock -
3 T.M.D.S.
Data2-
13 CEC
4
T.M.D.S. Data1+
14
Reserved (N.C.)
5 T.M.D.S.
Data1
15 SCL
6 T.M.D.S.
Data1-
16 SDA
7
T.M.D.S. Data0+
17
DDC/CEC Ground
8
T.M.D.S. Data0
18
+5V Power
9
T.M.D.S. Data0-
19
Hot Plug Detect
10 T.M.D.S.
Clock+
RGB terminal (D-sub 15-pin connector)
Pin Input
signal
1 R
2 G
3 B
4 No
connection
5 No
connection
6 R.GND
7 G.GND
8 B.GND
9 No
connection
10 GND
11 No
connection
When different kinds of input signals are
simultaneously input to the television via a graphics
board or the like, the television only support H/V
separate sync signal.
12 [SDA]
13 H.
sync
14 V.sync.
15 [SCL]
