CONNECTION (continued)
Connecting Procedure (continued)

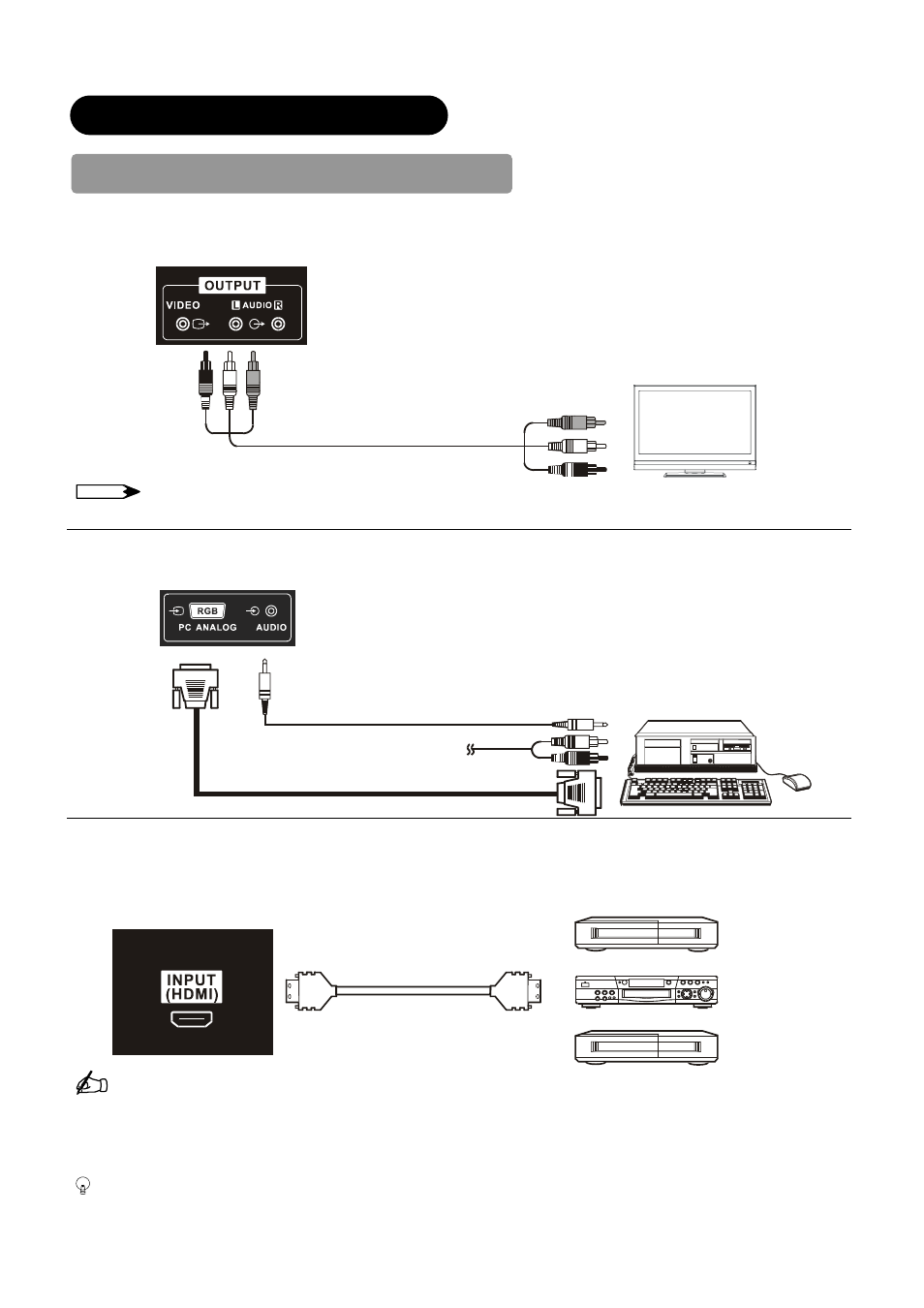

Monitor Out can be used to display same image and sound as main unit on another television.
When this output terminal is connected to an external television with a 75 Ohm terminal, the same image and sound from
composite (AV3, AV4), or TV signal can be displayed to the external television.
NOTE
● Video output is not available from component, RGB, or HDMI input.
PC connection terminal (D-sub 15 pin) +PC(RGB)/HDMI Analog Audio Input terminal connected to PC, which allows Analog
RGB signal.
HDMI terminals can be connected to the devices with HDMI output .
If the external device has DVI output, this can be available with HDMI-DVI cable. In case of using the HDMI-DVI cable,
connect analog audio signal to PC (RGB)/HDMI Analog Audio Input terminal.
Information
HDMI (High Definition Multimedia Interface) is next-generation multimedia I/O interface. Only one cable is used to transmit all
video/audio/control signals, which creates easy connection.
Moreover, those digital signals can produce high quality data without any degradation.
You are provided with one HDMI terminals, one of the most remarkable features.
If your external device has a HDMI terminal, HDMI connection is recommended for higher quality picture and sound.
IN
OUT
[Example]
IN OUT
[Example] OUT
IN
Mini stereo plug
or
VCR
DVD player / recorder
Set-Top Box
[Example]
Monitor
