Maintenance – Husqvarna 14 Pro User Manual
Page 29
English –
27
MAINTENANCE

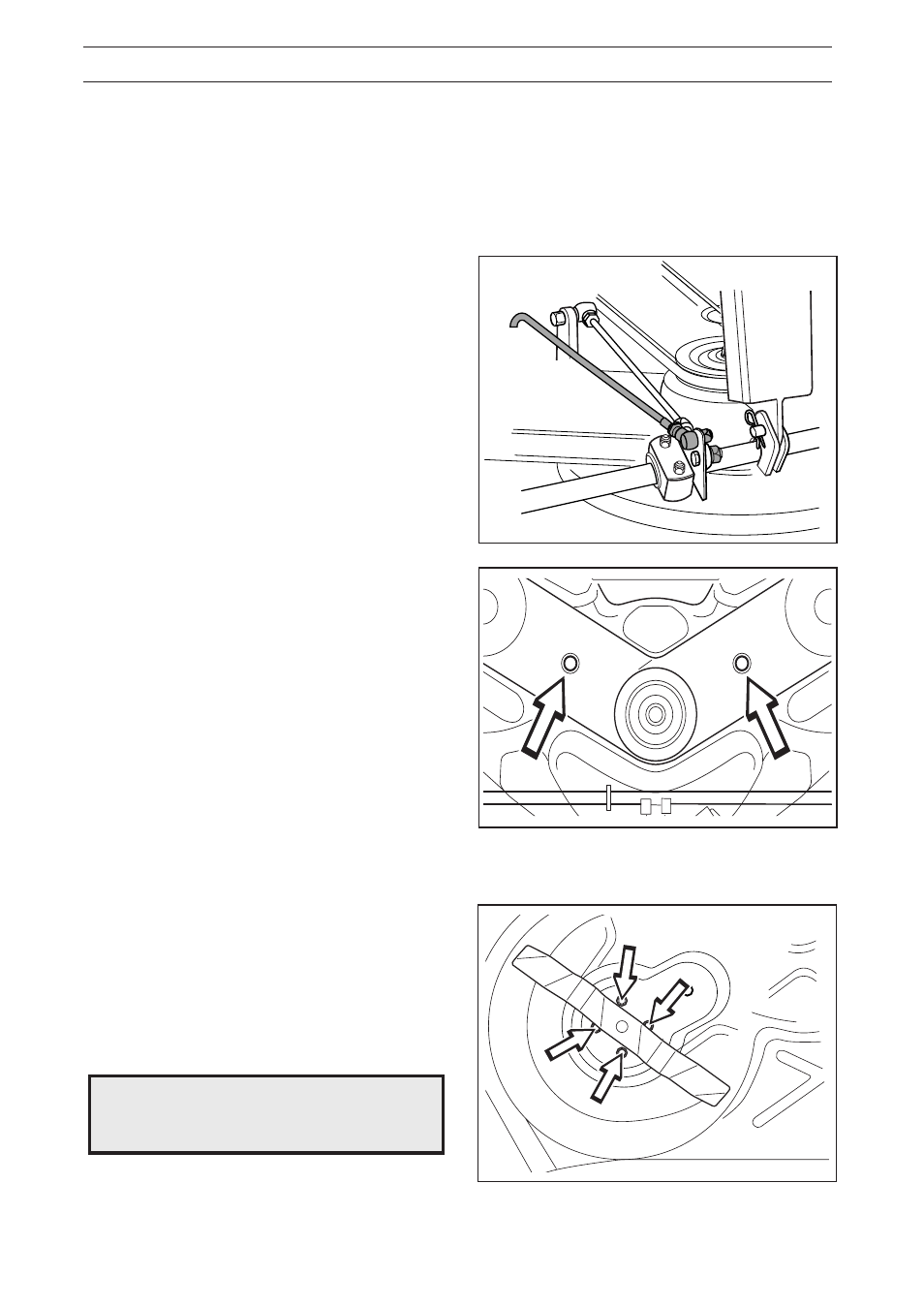

Replacing the cutting unit’s belts
Belt replacement on the BioClip 103
Two transmission belts that synchronise the rota-
tion of the blades power a BioClip 103. The belts
are located under a hood on the cutting unit.
1. Remove the cutting unit, see page 25.
2. Remove the front bolt from the parallel strut
and tip the strut backwards. Push the height
adjustment strut forwards.
3. Loosen the two bolts holding the protective
hood and then lift off the hood.
Loosen the nuts on the eccentric plate and turn
this away.
Loosen the four nuts (see diagram) holding the
outer blade bearing enough so that the bearing
can be moved.
Slide the blade bearing in towards the centre
bearing and pry off the upper belt.
Repeat the procedure for the lower belt.
!
4.
WARNING!
Protect your hands by wearing
gloves when working with the
blades.
BioClip 103
