HP 2300c User Manual
Page 6
Step #6 Re-Mounting the Top Cover
to the Scanner

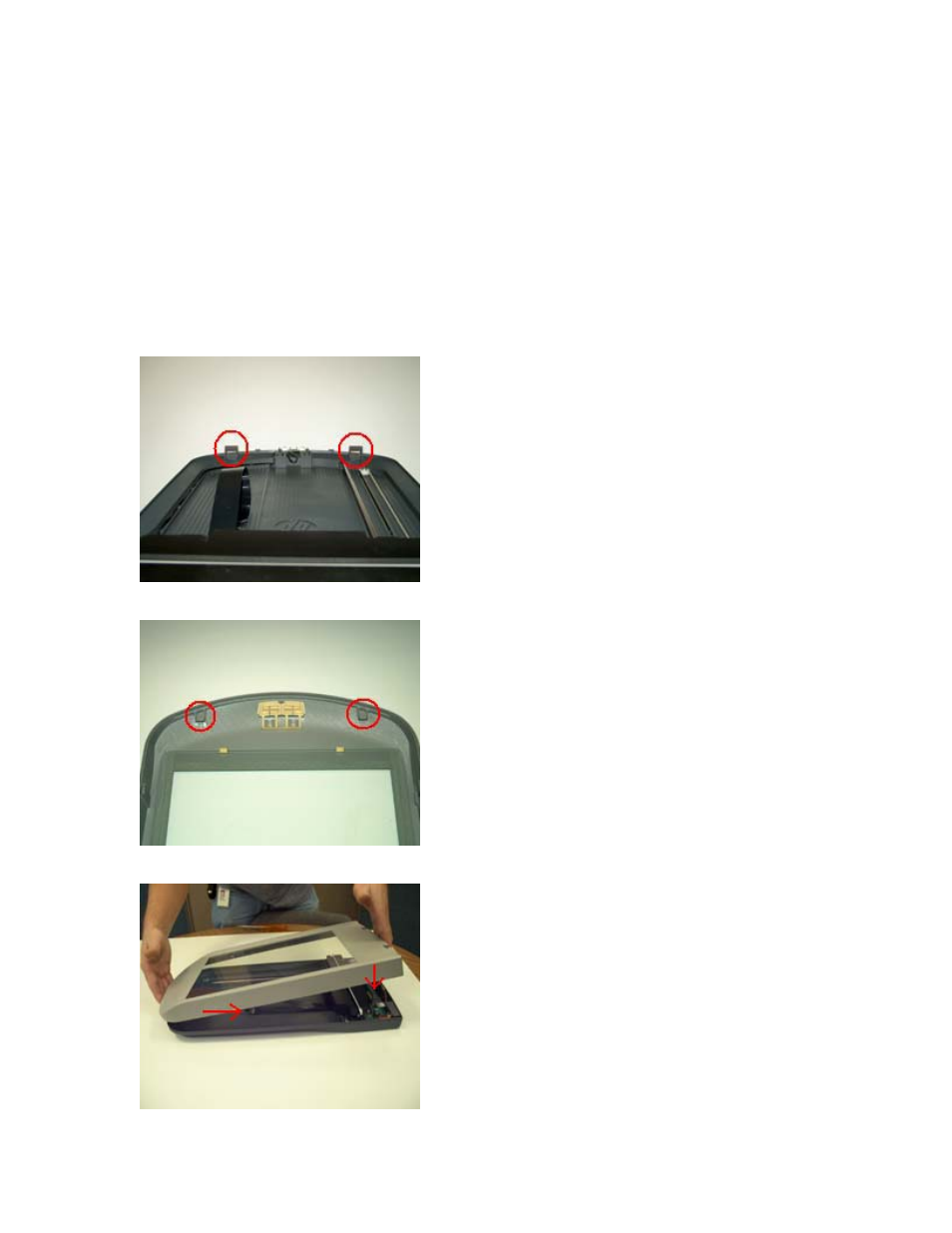

Hold the top cover with the back end raised
as shown . Align the front tabs of the top
cover with the base mounts. Lower the back
end of the top cover to the base and snap
together by squeezing the base and top cover
together.
Base Mounts
Top Cover Tabs
