Disassembly

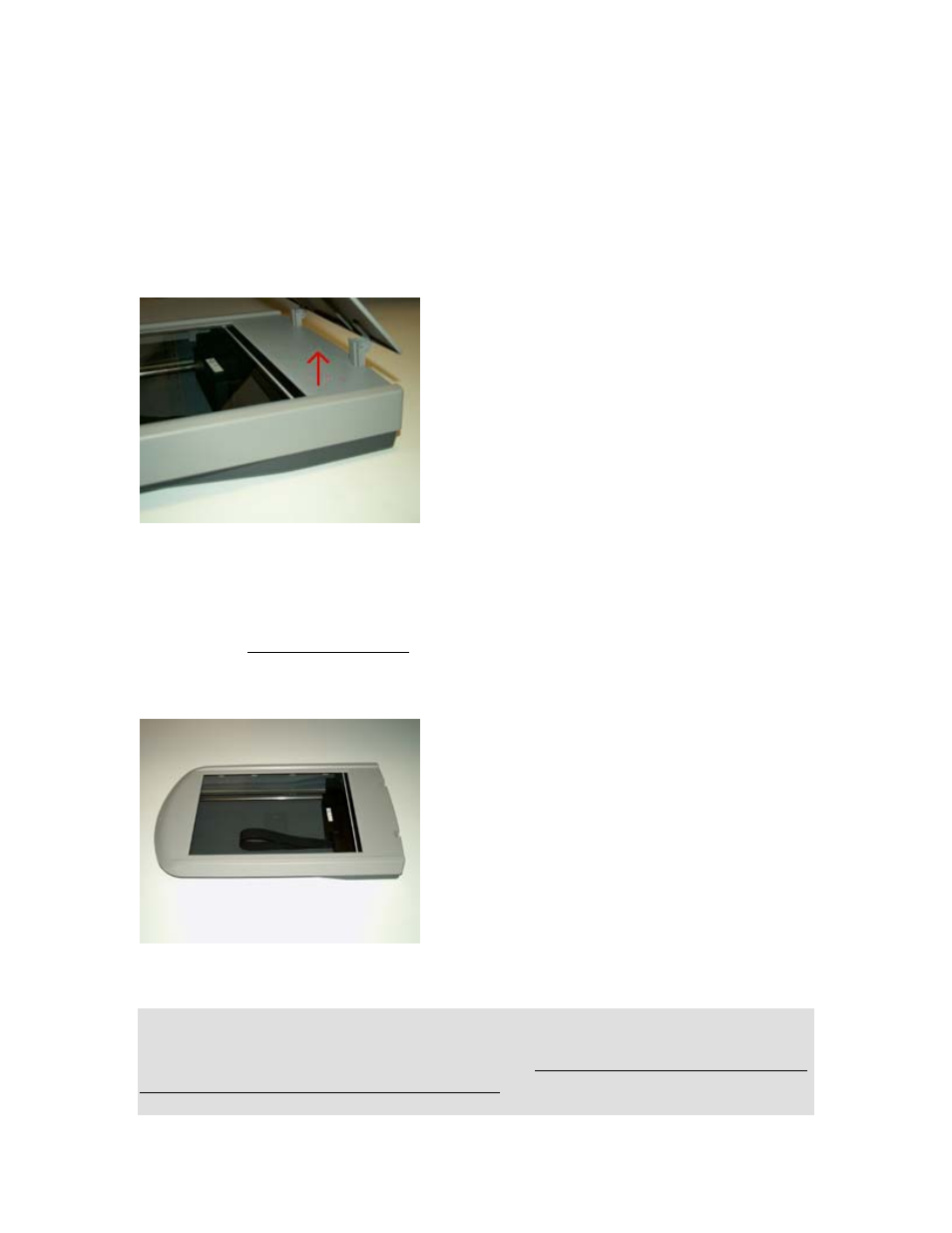

Step #1 Remove the Document Lid

Remove the document lid as shown. Open
the lid and lift straight up. Set the lid aside
for re-assembly later on.

Step #2 Cleaning Topside of Scanner

Clean the topside of the scanner prior to
disassembly to prevent contamination of
internal parts. Use cleaner sparingly. Do not
allow cleaner fluid to run. Clean the plastic
first and then use a separate lint free cloth to
clean glass.

NOTE: You are about to open the interior of your scanner to the dust of the outside
environment. Your scanner is very sensitive to any dust particles that get into the carriage
head, which can cause streaks in the scanned image. Minimize the time that the top cover
is off by having all the cleaning materials ready. Also be sure to disassemble your
scanner in a clean environment.
