Model SCD-6/8

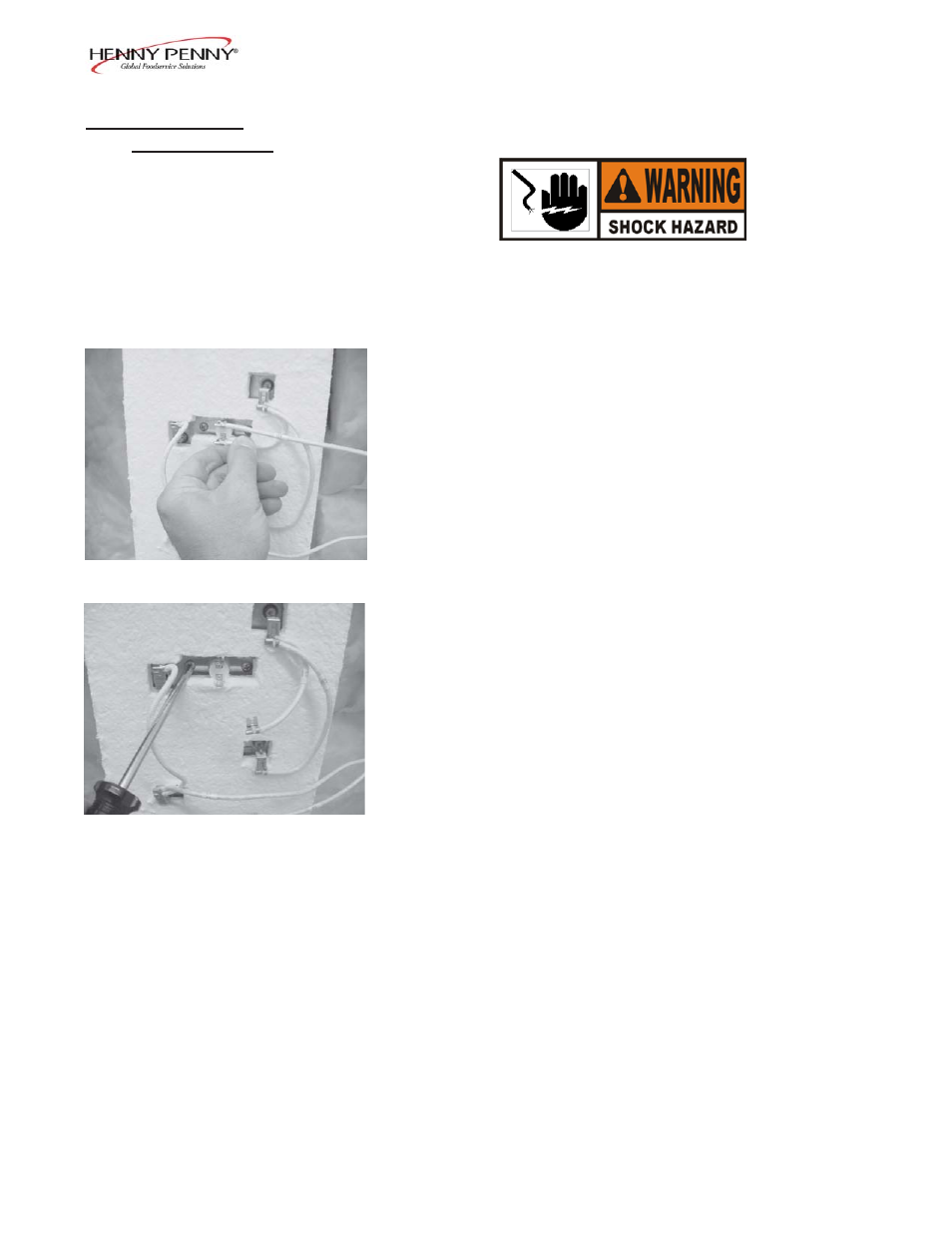

2-12. HIGH LIMIT 1. Remove electrical power supplied to the unit.
REPLACEMENT
To avoid electrical shock or property damage, move the
power switch to OFF and disconnect main circuit
breaker, or unplug cord at wall receptacle.
2. Remove the side panel closest to the controls.
3. Pull wires from the 235ºF high limit and check for continuity
between terminals (Figure 2-21). If the high limit shows
continuity, or closed circuit when cabinet temperature is below
200ºF (93ºC), the high limit is operating properly and does not
need replaced. If it doesn’t show continuity, or shows an open
circuit, the high limit is faulty and continue on with this section.
Figure 2-21
4. Using a Phillips head screwdriver, remove the 2 screws secur-
ing the high limit and remove high limit from unit (Figure 2-22).
5. Install new high limit, replace side panel, and restore electrical
power to unit.
Figure 2-22
803 2-11
