Appendix C • Installing the DW4020 Manually
1031484-0001 Revision 2
77
Appendix C
Installing the DW4020 Manually
The installation specification may direct you to install the
DW4020 using the serial port. You would connect the installer
laptop to the Gateway via the serial ports with a 9-pin female to
female (F/F) null modem serial cable. That cable is not included
with any DW4020 equipment.
Items needed for
installation You need all the items shown in Figure 53. Some of them are in
the modem installation kit or inside the antenna box. You must
provide a 9-pin female/female (F/F) null modem serial cable. The
serial cable is used to configure the DW4020 via the serial port.
You will also need the installation specification or work order.
This is provided to you by HNS.

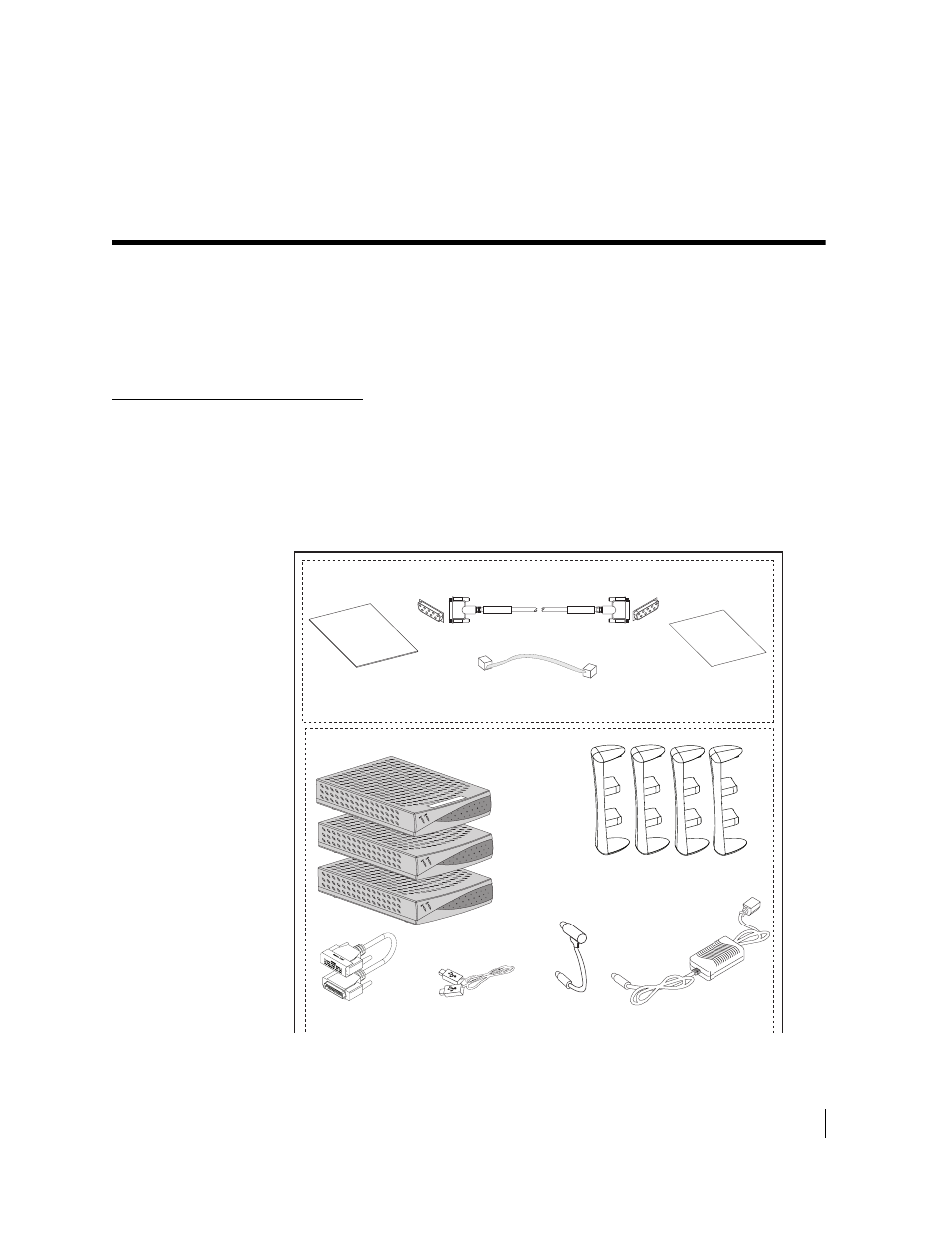

Figure 53: Items required for installation
Read this manual and obtain serial cable and installation work order
These items are packaged in a small box inside your antenna box
Installation manual
25-pin connector cable
Receive modem
Transmit modem
USB cable
DC cord
AC cord
Power supply
1031105-0001
Clips
This
ma
nua
l
Gateway
9-pin F-F serial cable
Power adapter
Insta
ll Sp
ec
Install specification
Ethernet cable
