The Home screen
The Home screen has system indicators across the top. There are
menu items in a column along the left. The system indicators
consist of the following:
•
System Status
reports the strength of the receive signal, the
status of the receive and transmit modems, and software
download status. If
System Status is
colored green, the
DW4020 is functioning properly. If there is a problem, it is
colored red and the word “PROBLEM” appears below
System Status
•
Receive Statistics
reports data on receive modem
functioning.
•
Transmit Statistics
reports data on transmit modem
functioning.
•
System Information
provides information such as the
Gateway IP address, subnet mask, site ID, and what features
are enabled.

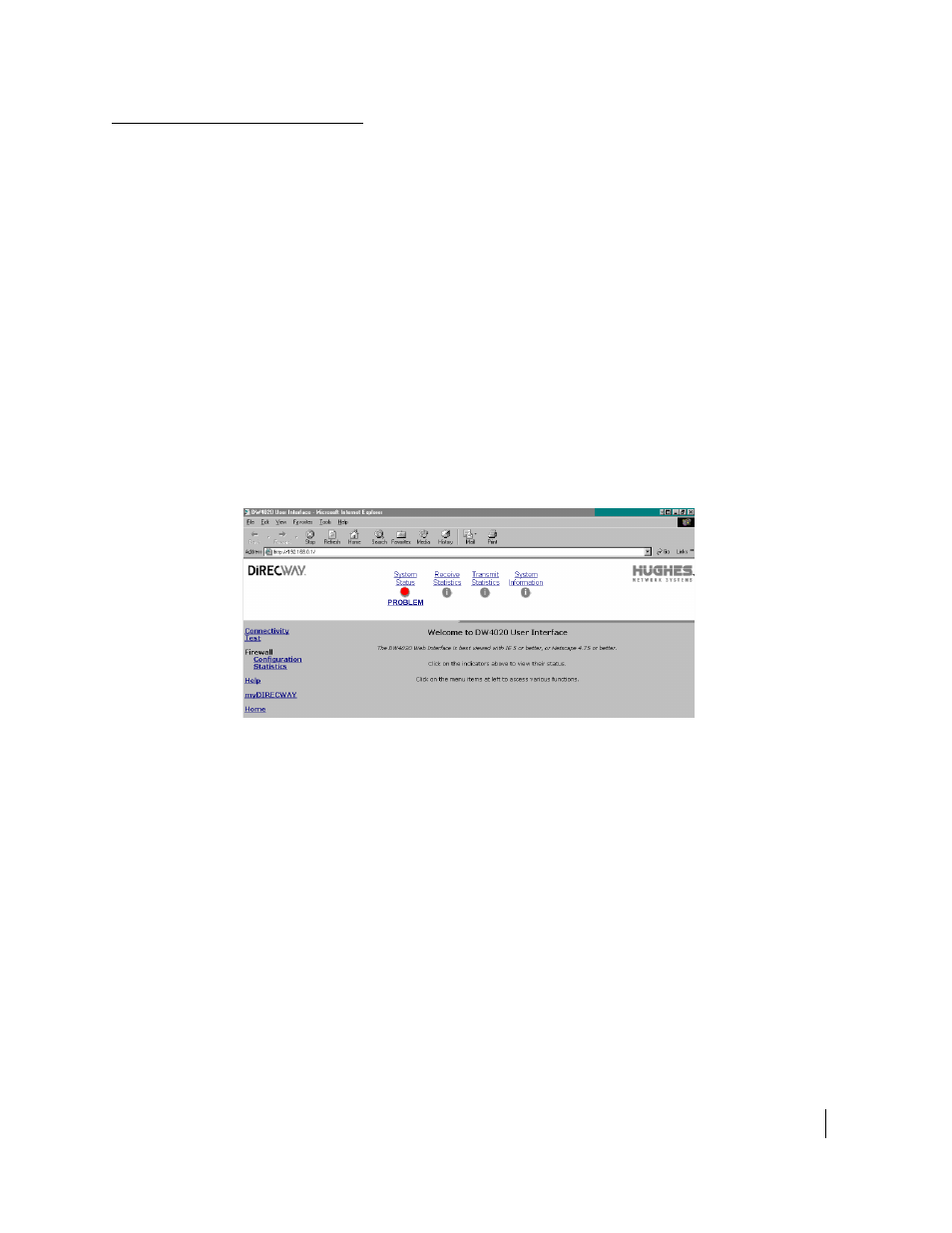

Figure 33: System Status reports PROBLEM
