Chapter 2 • Installing the indoor equipment
28
1031484-0001 Revision 2
9. Use the Elevation, Azimuth and Polarization values to adjust
the antenna to achieve maximum receive signal strength.
10. Select the ACP (auto cross-pol) checkbox. If it is not
available, wait five minutes; the system will update.
11. Select Next to go to the
Antenna Pointing - Transmitter

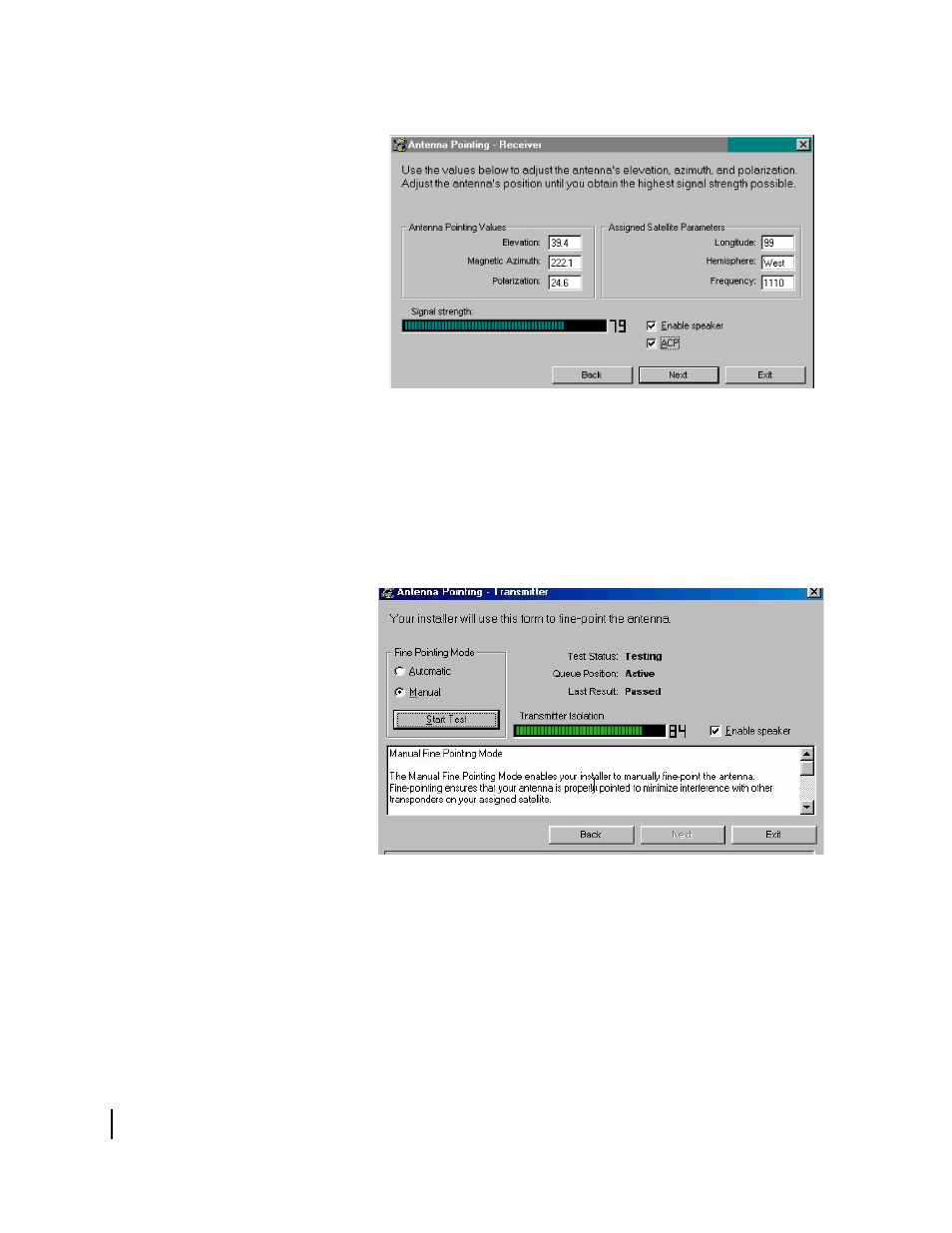

Figure 26: Antenna Pointing - Receiver
Figure 27: Start manual cross-pol; pass and peak isolation
