Appendix C • Installing the DW4020 Manually

1031484-0001 Revision 2

4. Press E

NTER

at the Hyperterminal prompt to display the

initial Install Console screen shown in Figure 76.

5. Press E

NTER

to display the

Main Menu

shown in

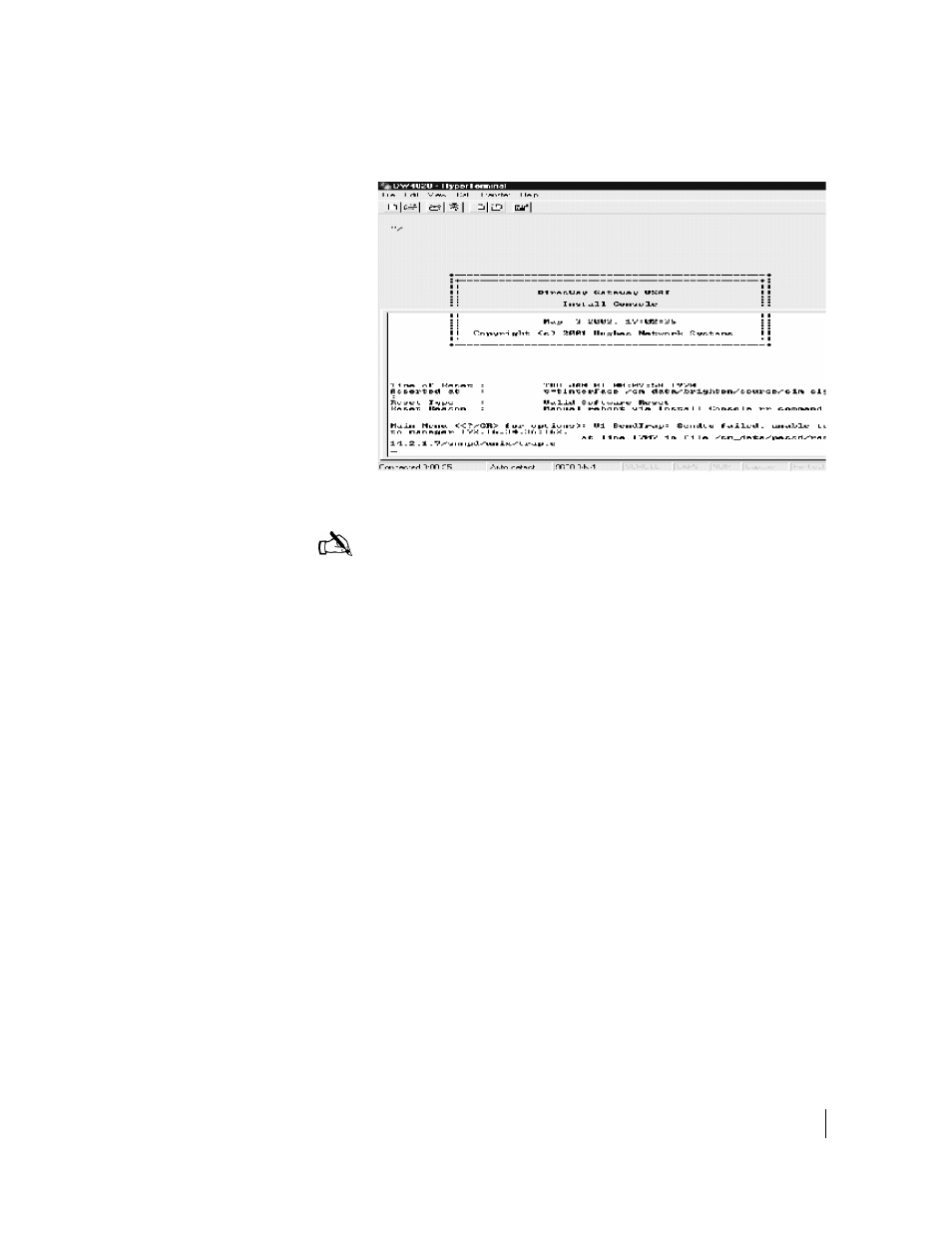

Figure 76: Initial Install Console screen

Note:

For all future Gateway installations, use the DW4020.ht

file you saved to connect the Gateway and laptop. Start
Hyperterminal. Select File

→Open→DW4020.ht. The Gateway

and laptop will connect.

Main Menu:

(a) Configure Boot Parameters

(b) Display Current Configuration

(d) Display Active Routing Table

(f) Run Software Download Monitor

(h) Display Reset History

(i) Installation

(t) Run Final/Built-in Tests

(pc) (Parameter Clear) Clear Configuration

(pw) (Parameter Write) Write Configuration

(rr) (Gateway Reset) Reset the Gateway

(rd) (Gateway Deconfigure) Force Download and

Acquire New Keys

Figure 77: BOOT ROM installer console Main Menu
