Page 50 Heatilator • Constitution EPA Fireplace • 480-1091C November 11, 2008

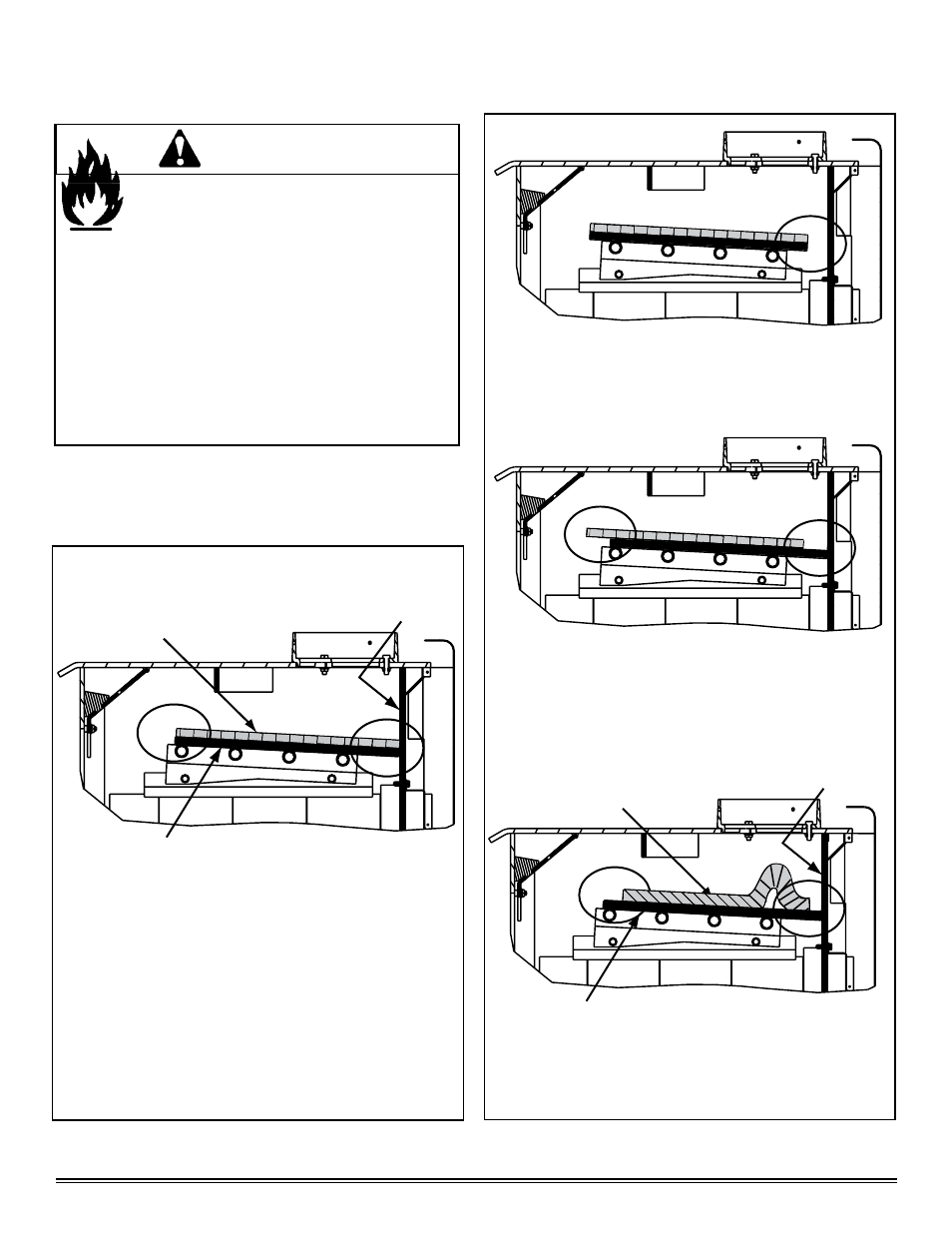

INCORRECT POSITIONS
Ceramic Blanket and Baffle Board are NOT in
contact with the back of the firebox.
Ceramic Blanket is NOT in contact with the
back of the firebox and NOT even with the Baf-
fle Board in the front.
Ceramic Blanket is bunched up at the back of
the firebox and NOT even with the Baffle Board
in the front.
Ceramic Blanket
Back of Firebox
Baffle Board
Figure 50.2
CORRECT POSITION
Firebox damage due to improper baffle place-
ment is not covered by warranty. Operate the
wood burning appliance with the baffle in the
correct position only.
Not doing so could result in:
• Reduced efficiency
• Overheating the chimney
• Overheating the rear of the firebox
• Poor performance
WARNING
Fire Risk
Ensure correct baffle placement and replace baffle com-
ponents if damaged or missing.
K. Correct Baffle & Blanket Placement
Ceramic Blanket and Baffle Board MUST be
in contact with the back of the firebox and
even with each other in the front.
Ceramic Blanket
Back of Firebox
Baffle Board
Figure 50.1
