Page 42 Heatilator • Constitution EPA Fireplace • 480-1091C November 11, 2008
TOOLS NEEDED: Powered drill with #2 Phillips head bit;
caulking gun.
1in. (25mm) OVERLAP
Metal strips 2 in. (51mm) under edge of
Fireplace and Hearth Extension and 2 in.
(51mm) on both side of fireplace opening.
Nail or screw metal strips in place.
Seal with
non-combustible
sealant
Top
Board
Bottom
Board
Side
Board
Side
Board
Tabla superior
Tabla lateral
Tabla inferior
Tabla lateral
Aplique Super Calstick en el extremo
FIGURA A
FIGURA B Instalación completa del material
de revestimiento incombustible
#7014-063, 5 de enero de 2006 Página 1 de
1
Apply bead of
Super Calstick to
edge here 1. Secure the fireplace to the floor or wall framing studs at
a minimum of two attachment points to prevent further
movement of the fireplace. The same holes and L brack-
ets that attached the fireplace to the pallet may be used
to secure the fireplace to the sub flooring by using a mini-
mum of two 1/4 in. x 2 in. lag bolts or equivalent. Refer
to Figure 42.1 and install the two metal hearth strips at
this time.
NOTE: All boards are pre-drilled for your convenience.
Boards MUST be attached in the following order:
bottom, top, and then the two sides.
2. Attach the bottom board to the bottom of the outer fire-
place can with enclosed screws, ensuring the board is
centered.
3. Center and attach the top board to the outer can and
framing members.
4. Using the Super Calstick, run a light bead (1/8 in. mini-
mum) on the butt edges of the top board. See Figure
42.2 .
5. Ensuring the top of the side pieces and the top board
align, attach the side pieces to the outer can and framing
members.
6. Use a wet or dry towel or a soft brush to remove any
dust or dirt from facing material. Apply a non-combustible
adhesive to attach tile, stone or other non-combustible fin-
ishing materials per manufacturer’s instructions.
7. The non-combustible Super Calstick may be used for
sealing between the fireplace and the hearth extension.
Refer to Figure 42.3.

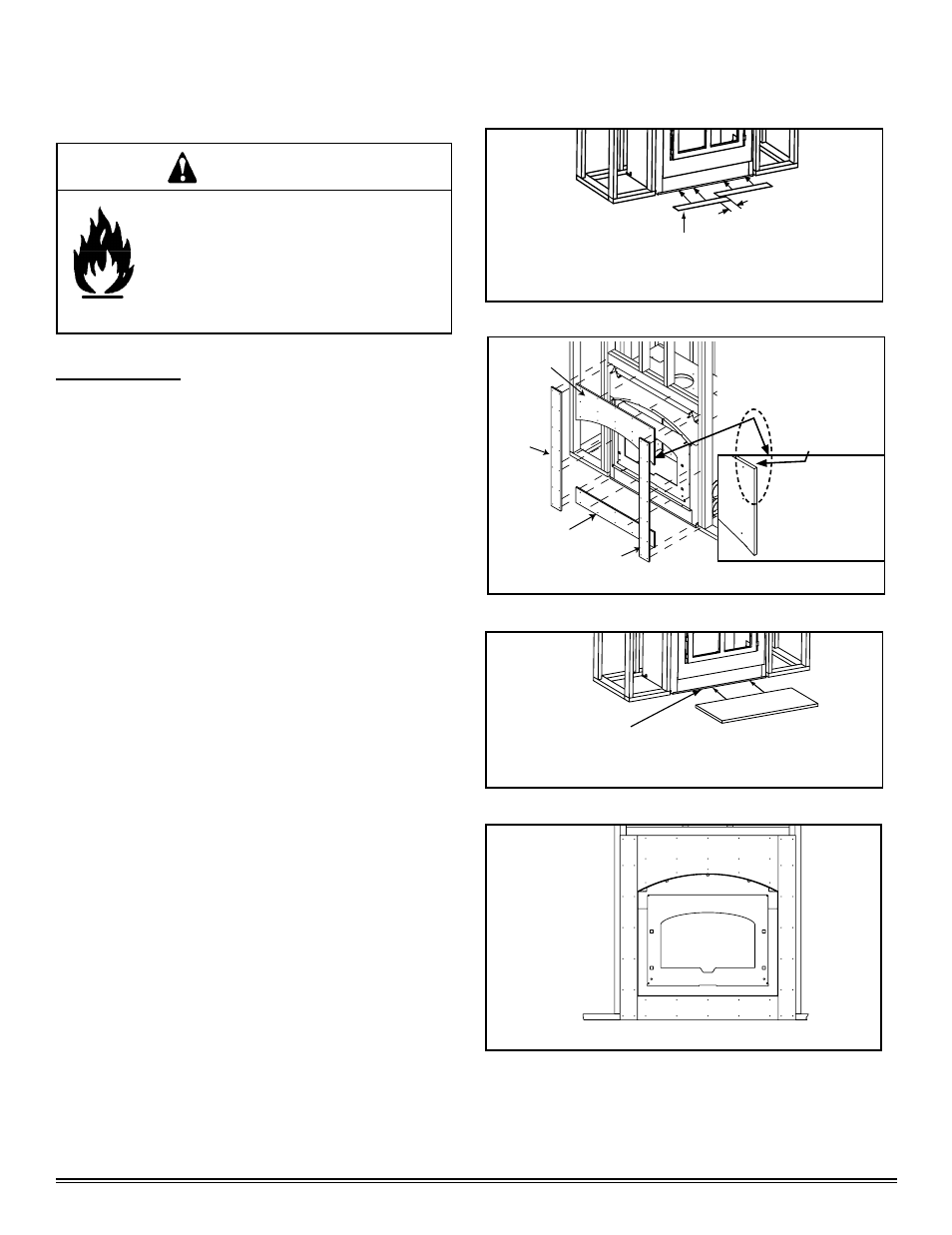

E. Non-Combustible Facing Material
Installation
Figure 42.1
Figure 42.2
Figure 42.3
Figure 42.4 Complete installation
Risk of Fire.
• Follow these instructions exactly.
• Facing materials must be installed properly
to prevent fire.
• No materials may be substituted
without authorization by Hearth & Home
Technologies.
WARNING
