Heatilator • ADI-ZCFB-S • 2032-910 Rev. G • 9/08 37

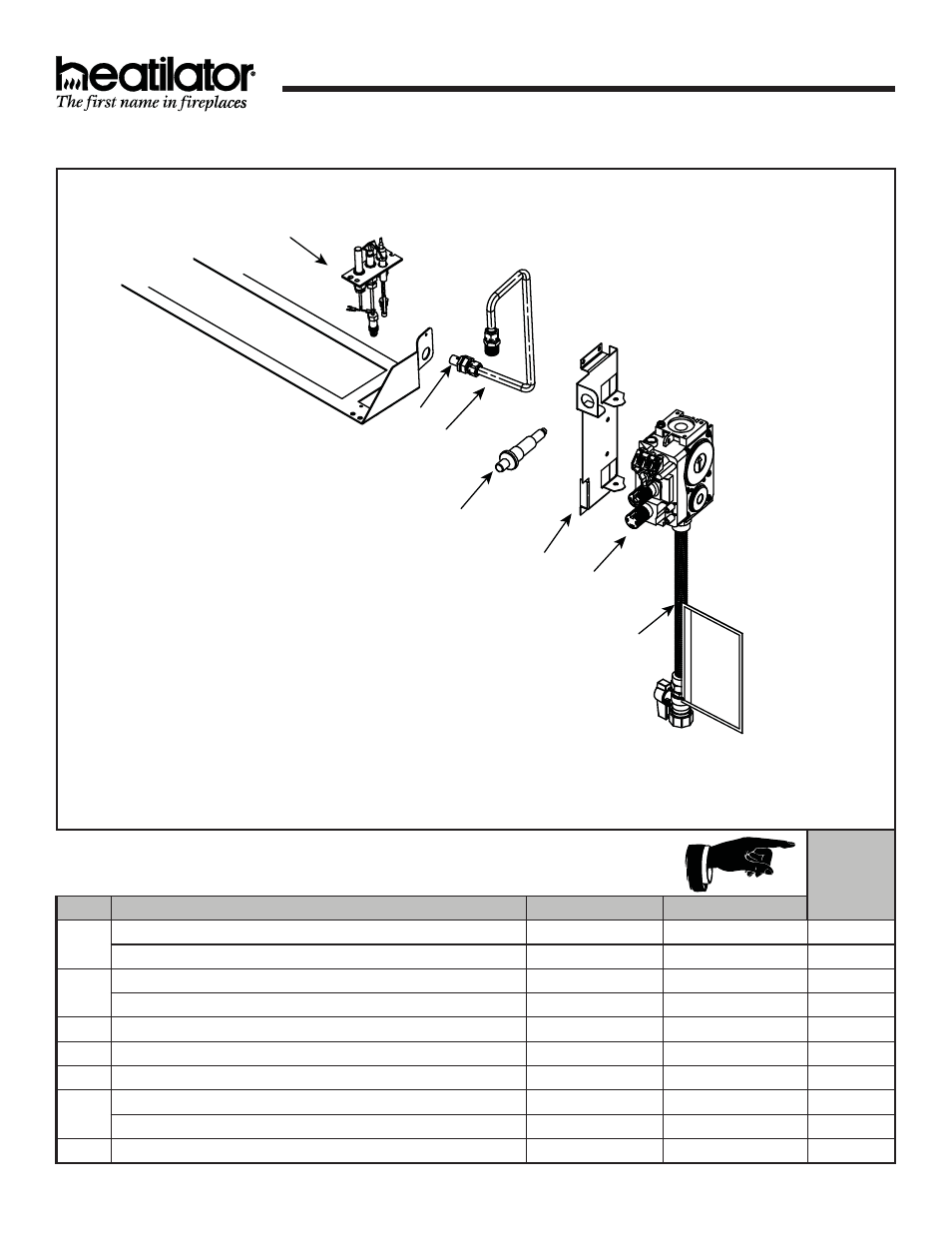

Service Parts Diagram
ADI-ZCFB-S
Beginning Manufacturing Date: Oct. 2007
Ending Manufacturing Date: ______
Service Parts
IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement parts for
your appliance please provide model number and serial number. All parts listed in this manual may
be ordered from an authorized dealer.
Stocked
at Depot
ITEM DESCRIPTION COMMENTS PART NUMBER
1
Pilot Assembly NG 2103-010 Y
Pilot Assembly LP 2103-011 Y
2
Burner Orifi ce NG (#36B) 567-801 Y
Burner Orifi ce LP (#52B) 074-801 Y
3 Burner Tube 567-301A Y
4 Piezo Ignitor 291-513 Y
5 Valve Bracket 2019-107
6
Valve NG 230-0710 Y
Valve LP 230-0720 Y
7 Flex Ball Valve Assembly 302-320A Y
1
2
3
4
5
6
7
Valve A ssembly
