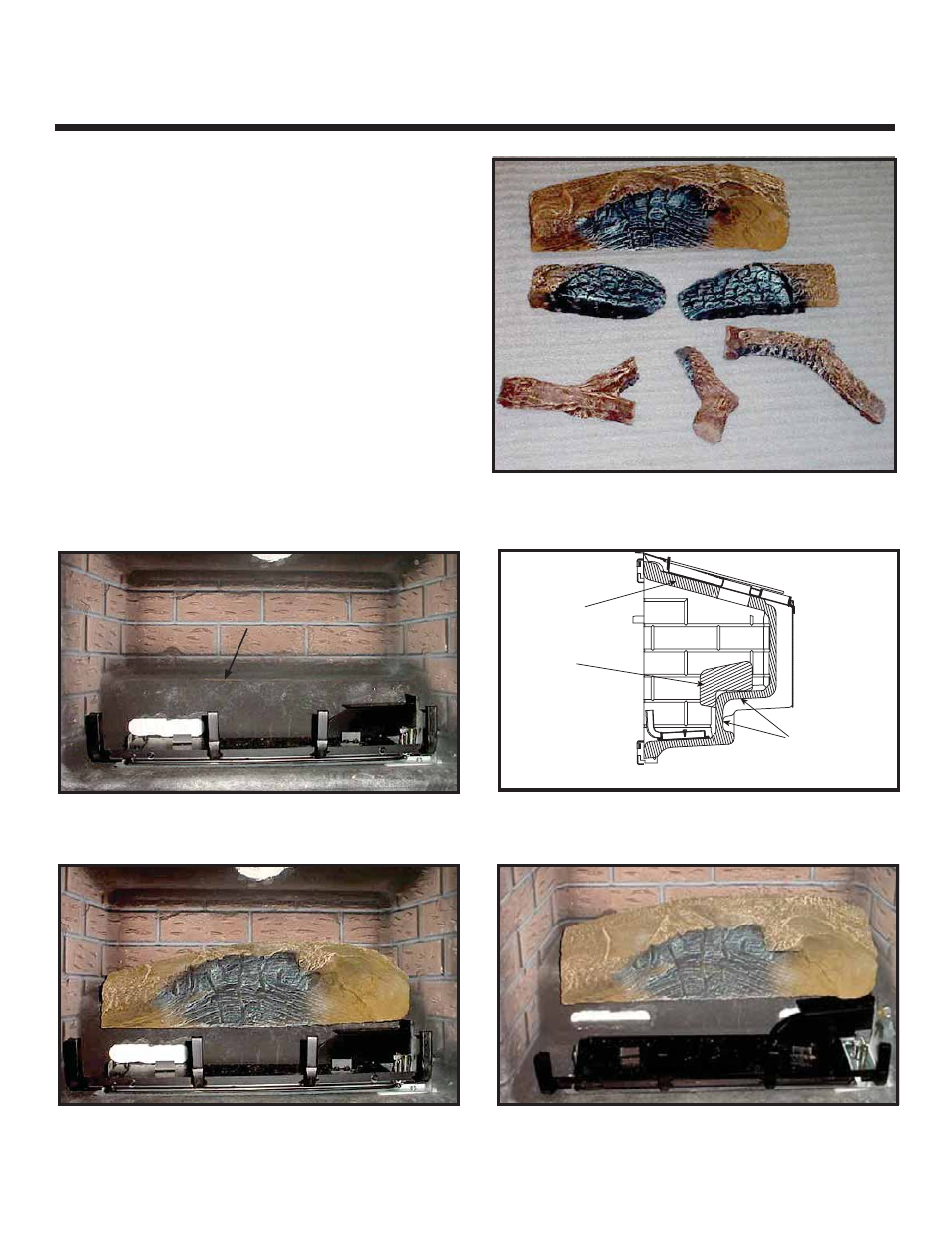

E. Positioning the Logs
Log Set Assembly: LOGS-2031
4
5
6
1
3 2
FIREBOX LEDGE
LOG PLACEMENT
INSTRUCTIONS
Log Placement
CAUTION: Logs are fragile! Carefully remove the logs
from the packaging.
FIREBOX
LOG #1
FIREBOX LEDGE
LOG #1 (SRV2032-701): Place log #1 on the fi rebox ledge as shown. The front portion of the log should hang over
the ledge as shown. The log should be placed all the way back and in the center of the ledge.
1
1
