Heatilator • ADI-ZCFB-S • 2032-910 Rev. G • 9/08 23

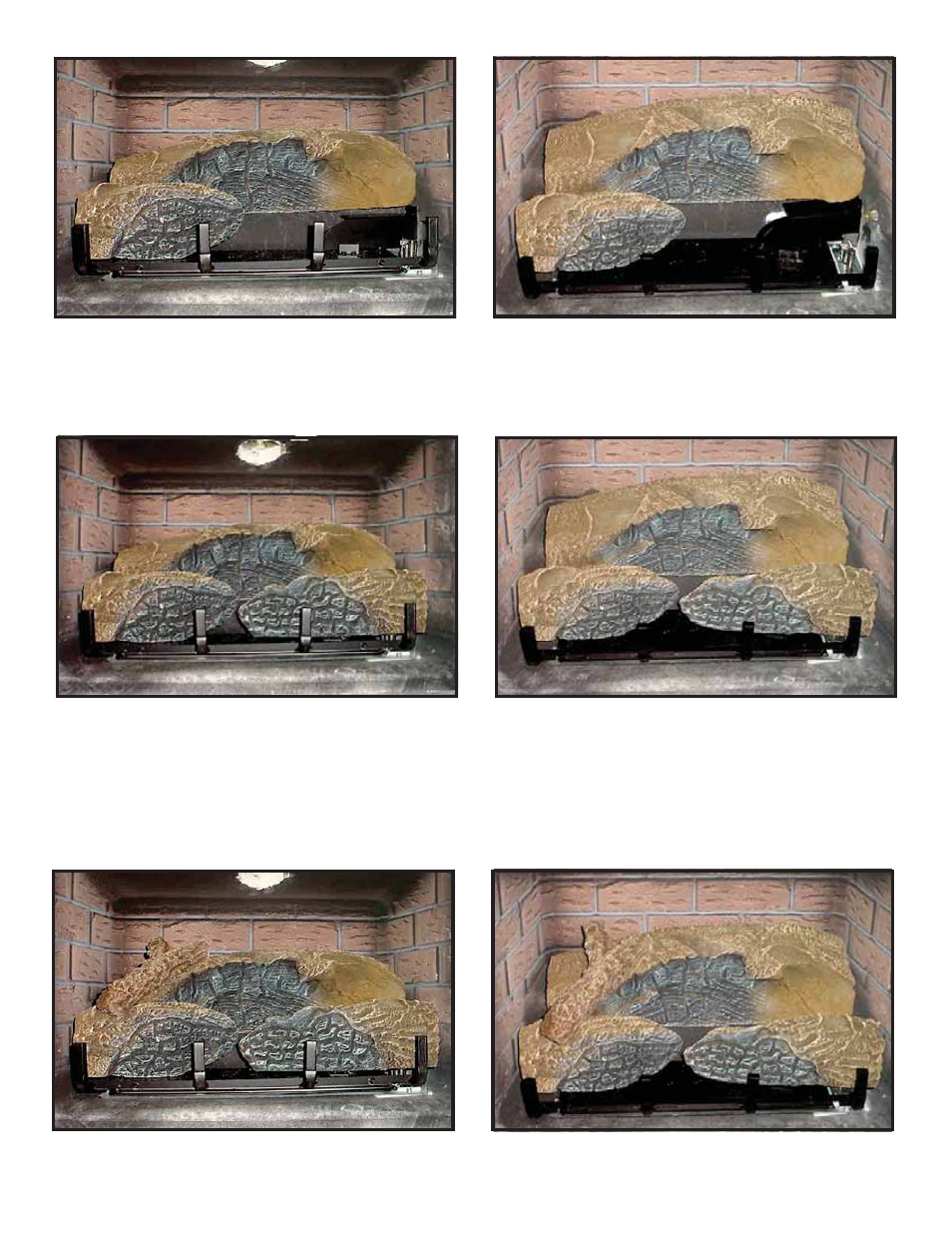

LOG #3 (SRV2032-703): Position log #3 by locating its slot over the tab on right front of the burner such that left end
of log contacts log tab near the center of the burner.
LOG #2 (SRV2032-702): Position log #2 by locating its slot over the tabs on left front of the burner.
2 2
3
LOG #4 (SRV340-704): Place log #4 across log #1 and log #2 in the grooved out areas as shown.
4 4
2
1
